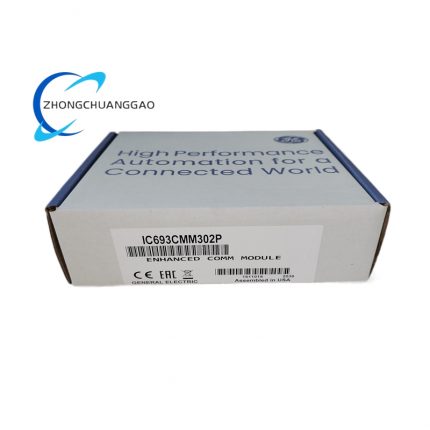

GE IC693CMM302

Technical Specifications:

  • Compatible PLC Series: GE 90-30 series PLCs.
  • Communication Protocol: Genius protocol, compatible with 90-30/90-70/six series PLCs and Genius Handheld Monitor (HHM).
  • Device Connection Capacity: Supports up to 31 Genius devices per module (up to 62 devices per controller when using two modules).
  • Data Transmission: Supports 693 bytes of transmission and 302 bytes of reception for global data, covering PLC registers such as %G, %I, %Q, %AI, %AQ, and %R.
Category:
Description
  • Operating Temperature: 0°C to +60°C (+32°F to +140°F).
  • Storage Temperature: -25°C to +70°C (-13°F to +158°F).
  • Humidity: 5% to 95% (non-condensing).
  • Mechanical Stability:
    • Vibration Resistance: 0.2 inches displacement at 5Hz to 10Hz; 1G at 10Hz to 200Hz.
    • Shock Resistance: 5G for 10ms duration.
  • Power Consumption: Less than 5mA at 300VDC on the backplane.
  • Installation Method: Recommended for installation on the CPU baseplate; can also be configured on remote or expansion baseplates (not compatible with conventional Genius modules).

Functional Characteristics:

  • High Scalability: Supports dual-module configuration in a single PLC system, connecting up to 62 devices to meet large-scale distributed control needs.
  • Multi-Protocol Compatibility: In addition to the Genius protocol, it supports Modbus, DNP3, and other protocols through software configuration for seamless integration with third-party devices.
  • Real-Time Diagnostics: Built-in status bits and fault reporting functions enable real-time monitoring of communication status and quick fault location.
  • Flexible Deployment: Supports master-slave communication, point-to-point communication, and I/O simulation, suitable for complex industrial scenarios.
  • Robust Design: Metal housing (brass nickel-plated + PBT) adapts to corrosive gas environments, ensuring signal stability.

Application Scenarios:

  • Automotive Manufacturing: In welding lines, the IC693CMM302 connects PLCs, welding robots, sensors, and HMIs to achieve real-time data synchronization, fault quick response, and historical data traceability.
  • Power Monitoring Systems: In substation automation systems, it integrates smart meters, circuit breakers, and environmental sensors for unified data collection and remote configuration.
  • Chemical Process Control: Deployed on remote baseplates, it enables long-distance communication with I/O modules 50 meters away, monitoring liquid level and pressure parameters in real-time.
  • Oil and Gas Production: In distributed I/O applications, it facilitates remote management of equipment, ensuring safe and efficient operation.
  • Building Automation: Integrates with building management systems to control HVAC, lighting, and security systems, enhancing energy efficiency and occupant comfort.
