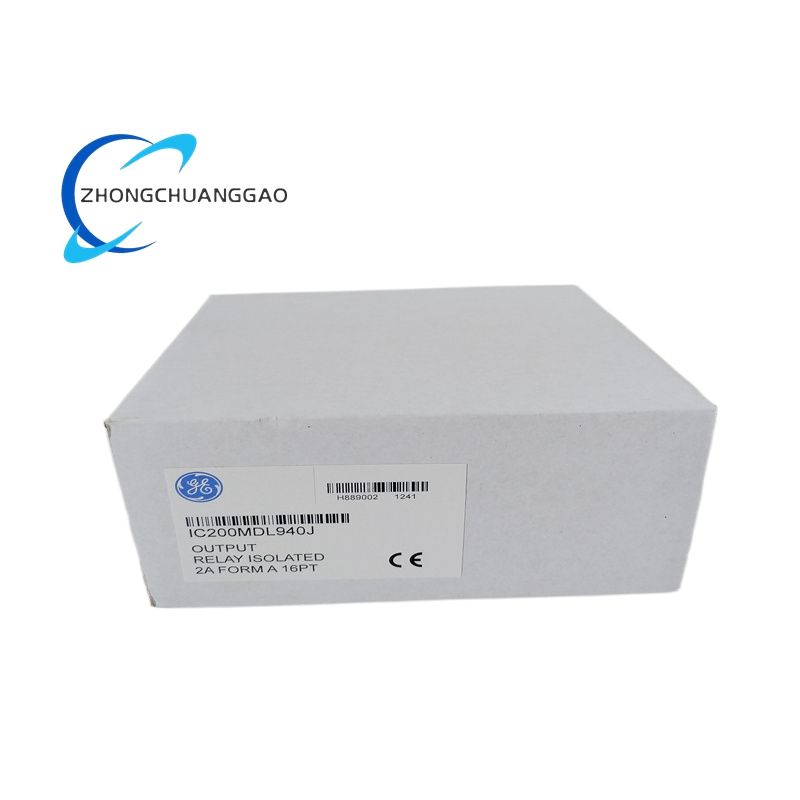

GE IC200MDL940 16-Point Relay Output Module
GE IC200MDL940 16-Point Relay Output Module - Image 2
GE IC200MDL940 16-Point Relay Output Module - Image 3
GE IC200MDL750 Discrete Output Module
GE IC200MDL750 Discrete Output Module
Back to products

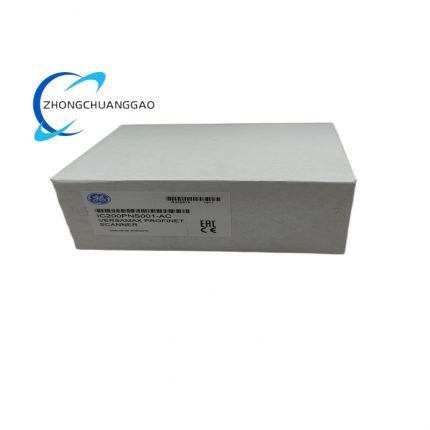

GE IC200PNS001 PROFINET Scanner Module
GE IC200PNS001 PROFINET Scanner Module

GE IC200MDL940 16-Point Relay Output Module

Technical Specifications

  • Module Type: Relay output module
  • Series: VersaMax I/O
  • Output Points: 16
  • Output Type: Normally open (N.O.) or Type A relay contacts
  • Output Voltage Range: 0 to 125VDC, 5/24/125VDC nominal; 0 to 265VAC (47 to 63Hz), 120/240VAC nominal
  • Output Current Rating: 2.0 amperes per point
  • Response Time: 10 milliseconds per channel
Category:
Description
  • Maximum Switching Frequency: 20 cycles per minute when used with inductive loads
  • Isolation: Channel-to-channel isolation, allowing each contact output to be connected to different voltage sources
  • Backplane Current Consumption: 490mA maximum
  • Operating Temperature: 0 to 60°C (compatible with Class 1, Division 2 rated environments)
  • Storage Temperature: -20°C to 85°C
  • Relative Humidity: 20% to 80%, non-condensing
  • Protection Rating: IP20 (standard configuration)
  • Mounting: DIN rail mounting for easy integration into control cabinets
  • LED Indicators: Each output channel has a dedicated LED status indicator for local monitoring.

Functional Features

  • High Reliability: The module uses high-quality silver alloy contacts for excellent conductivity and durability, ensuring long-term stable operation.
  • Flexible Configuration: Supports a wide range of voltage and frequency combinations, making it suitable for diverse control applications.
  • Diagnostic and Protection Mechanisms: Although the module does not include built-in surge protection or internal fuses, users can install external protection devices to enhance system safety.
  • Easy Installation and Maintenance: The module features a compact design with hot-swapping capabilities, allowing for easy replacement without changing field wiring.
  • Channel Status Indicators: Each output channel is equipped with an LED indicator to display the operational status, facilitating remote diagnosis and maintenance.
  • Compatibility: The module is compatible with mainstream industrial control protocols, simplifying system integration complexity.

Application Scenarios

  • Manufacturing Automation: Used in precision conveyor belt control, rotary table control, and other scenarios where precise control of discrete output devices is required.
  • Process Control: Controls temperature sensor signal outputs and pressure regulating valves in process control systems, ensuring accurate and stable process parameters.
  • Smart Equipment: Controls robot end effectors and triggers vision systems in smart equipment applications, enhancing equipment intelligence and automation levels.
  • Energy Management: Manages photovoltaic inverter control and energy storage system charge/discharge management in energy management systems, optimizing energy utilization efficiency.
  • Water and Wastewater Treatment: Controls valves, pumps, and other discrete equipment in water treatment plants, ensuring accurate dosing of chemicals and efficient water distribution.
  • Building Automation: Controls HVAC equipment, lighting, and security systems in smart buildings, improving energy efficiency and occupant comfort.
  • Oil and Gas: Installed in remote and hazardous locations to monitor and control discrete devices in production processes, withstanding extreme temperatures and explosive atmospheres.
  • Transportation: Used in traffic monitoring and control systems to manage vehicle flow and ensure road safety, improving traffic efficiency and reducing congestion.
