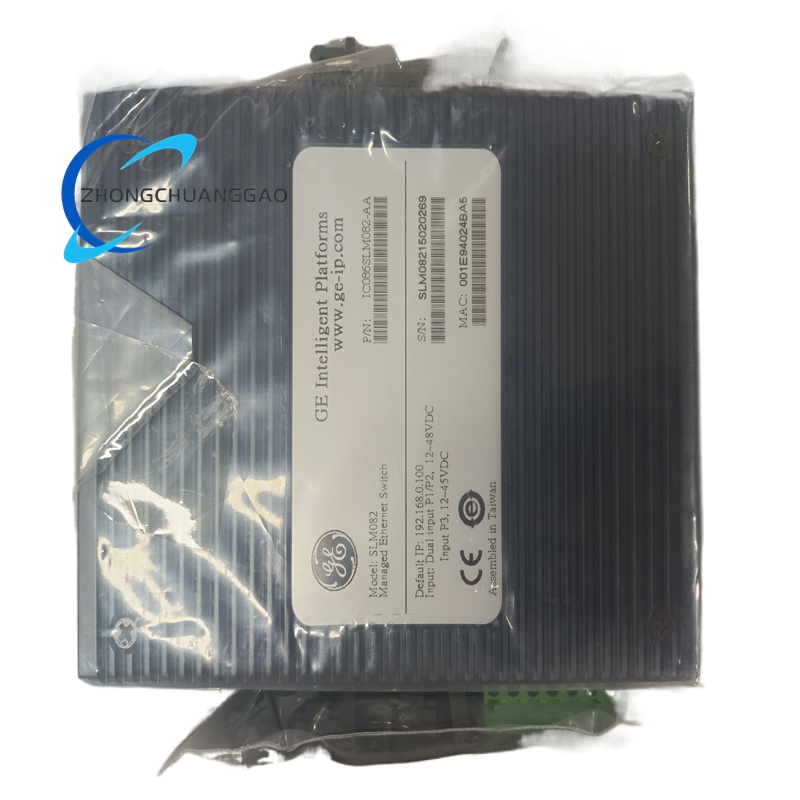

GE IC086SLM082 Industrial Ethernet Switch

Technical Specifications

• Ports: 8 x 10/100Base-T(X) RJ45 electrical ports, 2 x 100/1000Base-X SFP slots for fiber optic connections.
• Redundancy Protocols: Supports Redundant-Ring (with up to 250 nodes per ring and self-healing time < 10ms), RSTP/STP (IEEE 802.1W/D) for rapid network recovery.
• Network Management: Supports SNMP v1/v2c/v3, Web, Console (CLI), and Windows-based management software (PACSystems Ethernet Switch Configuration Tool) for centralized configuration and monitoring.
• VLAN Support: 802.1Q VLAN and GVRP protocols for efficient network segmentation and management.
• Quality of Service (QoS): 802.1p priority tagging to prioritize critical network traffic.
• Security Features: 802.1X authentication, RADIUS support, and MAC-based port security for enhanced network protection.
• Operating Temperature: -40°C to 70°C, ensuring reliable operation in extreme environmental conditions.
• Power Supply: Redundant power inputs with a wide voltage range (12-48VDC), supporting both terminal block and DC jack connectors.
• Mechanical Design: IP-30 rated enclosure, available in both DIN rail and wall-mount configurations for flexible installation.
• Certifications: Complies with various industrial standards including EMI (FCC Part 15, CISPR (EN55022) class A) and EMS (EN61000-4-2/3/4/5/6/8/11), ensuring robustness against electromagnetic interference.

Functional Features

• Rapid Network Recovery: With Redundant-Ring and RSTP/STP protocols, the switch ensures minimal network downtime by quickly rerouting traffic in case of link failures.
• Centralized Management: The Windows-based management software allows for easy configuration, monitoring, and troubleshooting of multiple switches from a single interface.
• Enhanced Security: The switch supports multiple security protocols to prevent unauthorized access and protect against network threats.
• Flexible Network Design: The combination of electrical and fiber optic ports supports various network topologies and distances, catering to diverse industrial applications.
• Reliable Operation in Harsh Conditions: The wide operating temperature range and rugged mechanical design make the switch suitable for deployment in challenging industrial environments.

Application Scenarios

• Industrial Automation: Used in manufacturing plants to connect and manage various automation devices such as PLCs, sensors, and actuators, ensuring seamless communication and control.
• Power Generation and Distribution: Deployed in substations and power plants to monitor and control critical infrastructure, enhancing grid reliability and efficiency.
• Transportation Systems: Utilized in railway and metro signaling systems to provide reliable communication between control centers and trackside equipment, ensuring safe and efficient operation.
• Oil and Gas: Installed in remote and hazardous locations to monitor and control production processes, withstand extreme temperatures, and resist explosive atmospheres.
• Water and Wastewater Treatment: Used to connect and manage equipment in treatment plants, ensuring continuous monitoring and control of water quality and distribution processes.
