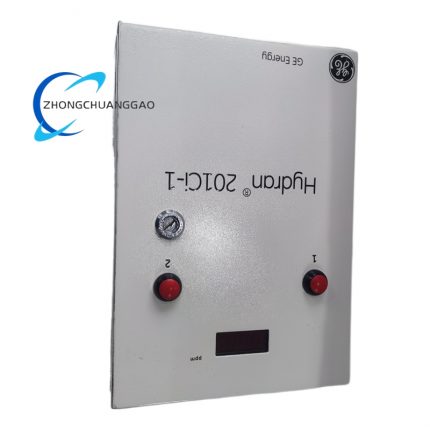

GE H201TI

• Communication Interface: Standard RS-485 connection, supporting Modbus or Hydran protocols.
• Display: LCD screen for easy viewing of gas readings and status information.
• Power Supply: Typically 24VDC or 230VAC, depending on the configuration.
• Operating Temperature Range: 0°C to 60°C (module level).
• Storage Temperature Range: -40°C to 85°C.
• Relative Humidity: 5% to 95% non-condensing.
• Protection Class: IP20 (module level).
• Electrical Isolation: 2500V AC isolation between channels and between channels and the backplane (for 1 minute).
• Mounting: GE standard rack slot mounting.
• Dimensions: 89mm × 152mm × 127mm (length × width × height).
• Weight: Approximately 0.8 kg.
• Power Consumption: Typical 5W, maximum 7W.

Functional Characteristics:

• Real-Time Monitoring: Continuously measures composite fault gases in transformers, providing immediate alerts to potential problems.
• Self-Diagnostic Capabilities: Includes full system self-check and self-diagnosis functions, recording data and significant events for up to one year.
• Remote Monitoring: Enables remote viewing of gas readings and trends via serial port communication, facilitating proactive maintenance.
• Easy Installation: Designed for permanent installation on transformers, with a simple single-valve mounting process.
• No Moving Parts: Eliminates the need for pumps or additional piping, reducing maintenance requirements.
• No Field Calibration Required: Maintains accuracy without the need for regular calibration in the field.
• High Reliability: Built with high-quality components and designed for long-term stable operation in harsh industrial environments.

Application Scenarios:

• Power Industry:
  • Used in fire-powered boilers and nuclear power auxiliary equipment for temperature analysis and fault gas monitoring.
  • Ideal for monitoring transformers in power distribution networks, providing early warning of faults to prevent failures.
• Oil and Gas Industry:
  • Monitors reaction kettles and pipeline media temperatures, ensuring safe and efficient operation.
  • Used in gas extraction and processing facilities for fault gas detection and prevention.
• Metallurgical Industry:
  • Applied in smelting furnaces and rolling mill roller temperature monitoring, optimizing production processes.
• Chemical Industry:
  • Monitors gasification furnaces and chemical raw material heating temperatures, ensuring process stability.
• Water Treatment Industry:
  • Used in sewage treatment equipment and heating device temperature monitoring, improving treatment efficiency.
• Cement Industry:
  • Monitors rotary kiln and raw material preheating temperatures, optimizing cement production.
• Pharmaceutical Industry:
  • Applied in reaction tanks and drug drying temperature monitoring, ensuring product quality.
