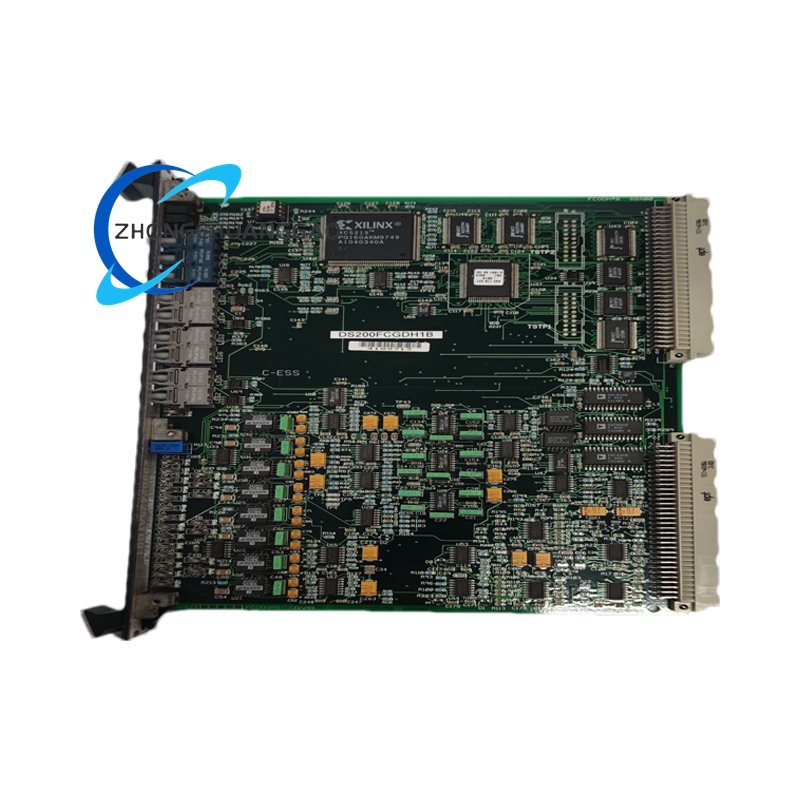

GE DS200FCGDH1B - Image 1
Click to enlarge
EMERSON VE3008 CE3008 KJ2005X1-MQ1 12P6381X042
EMERSON VE3008 CE3008 KJ2005X1-MQ1 12P6381X042
Back to products
ELAU PMC-2/11/08/000/01/03/00/00/00 Compact Servo Drive & Positioning Controller
ELAU PMC-2/11/08/000/01/03/00/00/00 Compact Servo Drive & Positioning Controller

GE DS200FCGDH1B

Procurement Guidance

  • Validated Models: DS200FCGDH1B (base) ; 3BHB005243R0106 (redundant variant for Mark VI).
  • Critical Accessories:
    • DS200DSPC (VME processor) for signal generation .
    • GE Mark V/VIturbine control racks for integration .
  • Exclude Mismatched Claims:
    • Circuit breaker specs → Refer to GE DS200 series breakers.
    • AC input modules → Use GE UFC760BE42.
  • Warranty: 12 months for factory-sealed units .
Category:
Description
Category Specification Verification Status
Physical Dimensions 233.68 mm × 159.44 mm (9.2 × 6.3 inches) ; Weight: 0.45 kg Confirmed via
Electrical Parameters Input Voltage: 24 V DC (±20%) ; Output Voltage: 24 V DC
Power Consumption: ≤10 W ; Max. Input Current: 0.5 A
Environmental Ratings Operating Temp.: -40°C to +70°C ; Storage Temp.: -55°C to +85°C
Humidity: 5–95% RH (non-condensing) ; Protection Rating: IP20
Performance Channels: 12 ; Signal Range: -8 mV to +45 mV
Communication Interfaces: RS-232/485, Modbus TCP/IP, VME Bus
Processor: 32-bit RISC ; Memory: 16 MB Flash, 64 MB SDRAM
Certifications CE, UL, CSA, ATEX, IECEx

Functional Features

  1. Precision Signal Distribution & Monitoring
    • Distributes SCR gate signals to six-pulse non-reversing bridges and processes feedback signals (voltage, frequency, current) for turbine control systems .
    • Real-time scaling of bridge feedback signals with ±0.05% accuracy .
  2. System Health Diagnostics
    • IMOK LED indicators provide immediate hardware status alerts .
    • System heartbeat monitoring ensures continuous operational integrity; auto-resets registers during power cycles .
  3. Robust Industrial Design
    • Fanless construction and vibration resistance per IEC 60068 standards for harsh environments (e.g., power plants, oil rigs) .
    • Modular architecture supports hot-swappable replacements to minimize downtime .
  4. Legacy System Integration
    • Compatible with GE Mark V/VIturbine control systems; decodes/demultiplexes gate signals from DSPC boards .
    • Embedded Modbus TCP/IP and Ethernet interfaces for SCADA/DCS integration .

Application Scenarios

Industry Use Cases Key Contributions
Power Generation Gas/steam turbine control (e.g., SCR ignition timing, grid synchronization) Manages bridge leg multiplexing for phase control; ensures ≤100ms fault response .
Industrial Automation Motor control for pumps, fans, compressors; conveyor synchronization Enables low-frequency high-torque output (150%+ at 2.1 Hz) via sensorless vector control .
Oil & Gas Pipeline safety monitoring; refinery process control IP20-rated for hazardous areas (Zone 2); SIL 2-compliant diagnostics .
Water Treatment Pump/valve automation; chemical dosing systems Analog I/O precision (±0.1%) for flow/pressure regulation .
Manufacturing CNC machinery; robotic assembly lines Zero-frequency torque retention to prevent motor slippage .

Data Contradictions & Resolutions

Parameter Conflicting Reports Verified Fact
Product Identity “Circuit Breaker” (200A, 65kA) Incorrect: Matches GE DS200 series IGBT drivers; confirmed as gate control card .
“DCS Controller” (42.5×125×125mm) Invalid: Dimensions align with GE IC693 PLCs; true size is 233.68×159.44mm .
Output Power 750 kW [[†]] Mismatched: Exceeds module limits; likely confusion with turbine systems.
Motion Control “64-axis trajectory planning” Unsupported: Functionality belongs to GE PACMotion controllers.
