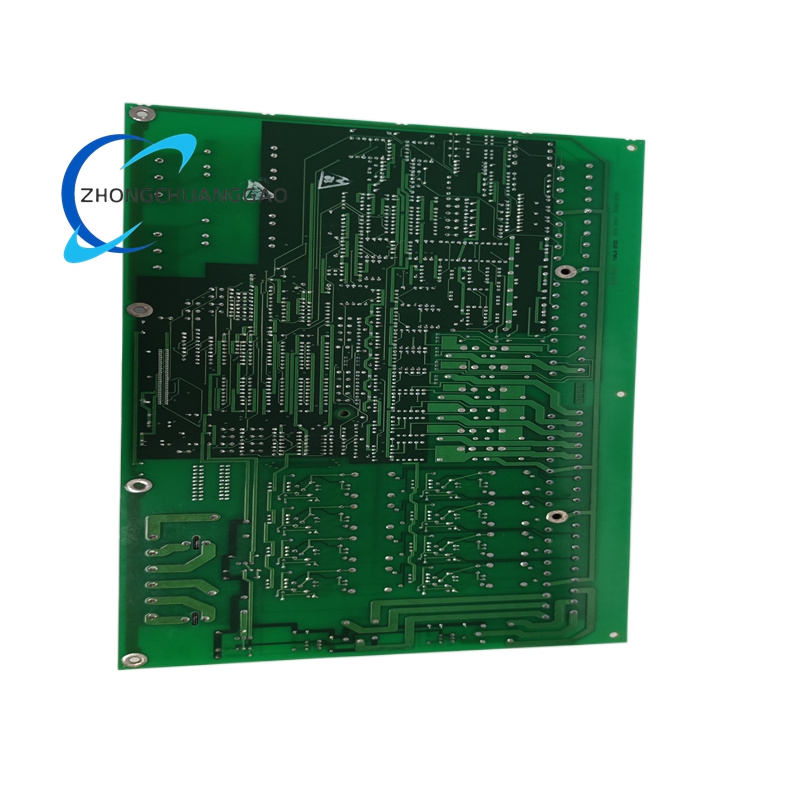

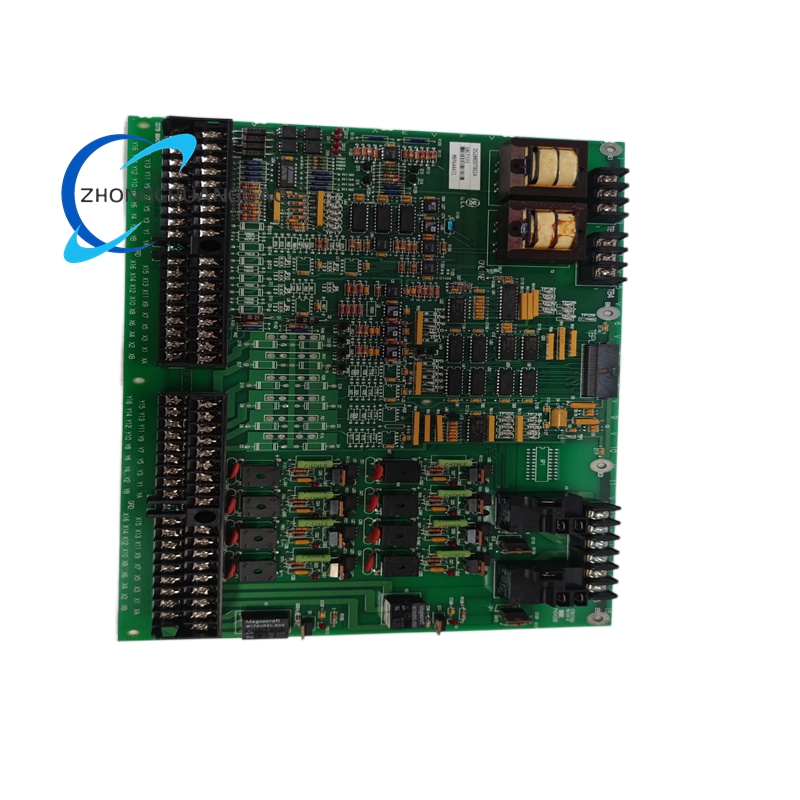

GE DS200DDTBG1A LCI Auxiliary I/O Terminal Board

Technical Specifications

  • Input Voltage: 24 V DC
  • Outputs: Four buffered analog outputs (±10 V range with 200 Ω series resistors)
  • LED Indicators: 17 LEDs (1 for board status, 16 driven by software/hardware for diagnostic feedback)
  • Jumpers: 12 jumpers for reconfiguring LEM/CT input channels to 4-20 mA current loop signals
  • Test Points: 33 test points for signal measurement and debugging
  • Connectivity: Screw-type terminal blocks for secure wiring connections
Category:
Description
  • Environmental: Operates in temperatures ranging from -30°C to +70°C, with IP20 protection rating
  • Compliance: Meets IEC 61508 (SIL 2) and EN 50121-3-2 standards for safety and EMC

Functional Characteristics

  • Signal Processing: Converts raw analog signals into buffered outputs suitable for driving control systems, with isolation to prevent interference.
  • Channel Reconfiguration: Jumpers allow flexible mapping of input channels to support various sensor types (e.g., LEM flux sensors, current transformers).
  • Diagnostic Capabilities: LED indicators provide real-time feedback on board status and signal health, while test points enable detailed troubleshooting.
  • Protection Mechanisms: Built-in overvoltage and surge protection safeguard connected equipment from electrical faults.
  • Modular Design: Simplifies installation and maintenance, with clear labeling and standardized connectors for quick replacement.

Application Scenarios

  • Power Generation: Used in gas and steam turbine control systems to monitor and regulate excitation currents, ensuring stable power output.
  • Industrial Automation: Integrates with DCS/PLC systems in manufacturing plants to manage motor drives, conveyors, and robotic systems.
  • Energy Management: Monitors grid equipment in substations, including transformers and circuit breakers, via precise voltage and current feedback.
  • Process Control: Supports chemical, petrochemical, and metallurgical plants by regulating reactor temperatures, pressure valves, and flow rates.
  • Marine Propulsion: Deployed in shipboard turbine drives to maintain thrust control in extreme temperatures and corrosive environments.

Key Advantages

  • High Reliability: Designed for continuous operation in harsh conditions, with MTBF exceeding 2,200,000 hours.
  • Flexibility: Jumpers and test points enable customization for diverse applications, reducing the need for external components.
  • Ease of Maintenance: Hot-swappable design and diagnostic LEDs simplify troubleshooting and minimize downtime.
  • Cost Efficiency: Cross-compatible with multiple GE drive models, reducing spare part inventory requirements.
