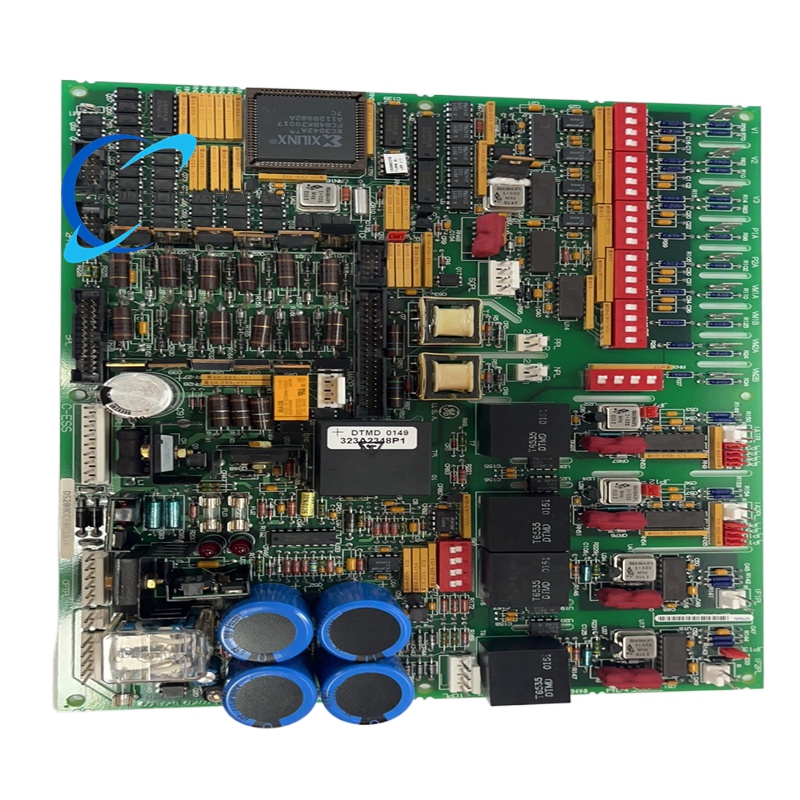

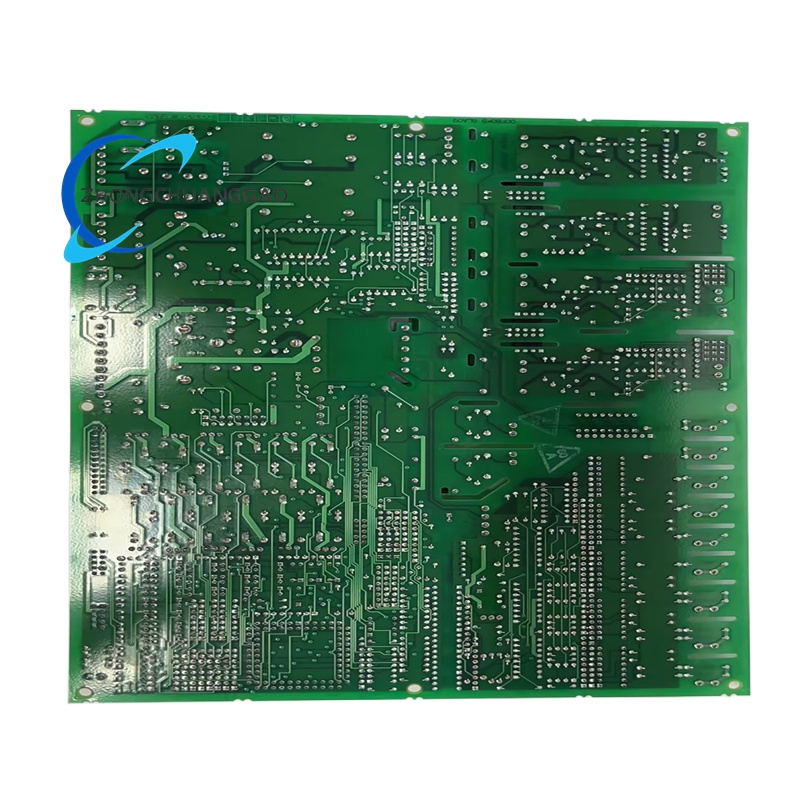

GE DS200DCFBG1BJB Drive Control Power Supply Board

Technical Specifications

  • Input Voltage Range: Compatible with multiple industrial power sources, typically ranging from 38 to 115 VAC (depending on system requirements).
  • Output DC Voltage: Adjustable to meet the specific needs of connected drivers or exciters.
  • Fan Power Supply: 115V AC (independent circuit to ensure reliable cooling).
  • Protection Features:
    • Overcurrent protection to prevent equipment damage.
    • Overvoltage/undervoltage protection to ensure system stability.
    • Feedback signal isolation to absorb millivolt-level interference and avoid unintended motor starts.
Category:
Description
  • Configuration Options:
    • 12 jumpers for custom parameter settings.
    • 7 DIP switches for flexible operation mode adjustments.
  • Compatibility: Works with various GE drive models, including DC2000, AC2000, CB2000, ME2000, FC2000, GF2000, and EX2000 IGBT drive applications.
  • Operating Temperature: -20°C to +60°C.
  • Certifications: Complies with relevant electrical safety and EMC standards.

Functional Characteristics

  • Stable Power Supply: Provides reliable DC power to drive control systems, ensuring normal operation of motors and other equipment.
  • Feedback Signal Processing: Monitors and regulates DC power feedback signals in real-time to maintain system stability.
  • Protection Mechanisms: Built-in overcurrent, overvoltage, and undervoltage protections enhance equipment safety and reduce the risk of unexpected downtime.
  • Modular Design: Facilitates easy installation, maintenance, and upgrades, reducing operational costs.
  • Status Indicators:
    • A neon light indicates 115 VAC line fuse status.
    • Two LED indicators show +24 VDC and -24 VDC line fuse status.
  • High Compatibility: Cross-compatible with multiple GE drive and exciter models, minimizing spare part inventory needs.
  • Industrial-Grade Components: Designed to withstand harsh industrial environments, ensuring long-term reliability.

Application Scenarios

  • Gas Turbine Control Systems: Provides stable DC power and feedback signal processing for gas turbines, ensuring efficient power generation.
  • Steam Turbine Control Systems: Controls the starting, stopping, and load regulation of steam turbines with high precision.
  • Combined Cycle Power Generation: Manages various aspects of combined cycle power generation systems to optimize performance.
  • Industrial Drive Control: Used in industrial motor drives to ensure stable and precise motion control, such as conveyors, fans, and pumps.
  • Power System Monitoring and Protection: Monitors and protects power generation, transmission, and distribution systems in power plants, substations, and grid equipment.
  • Heavy Machinery Automation: Supports the automation of heavy machinery like compressors and cranes, ensuring reliable operation.
  • Petrochemical Industry: Used in process control systems to manage various production processes.
