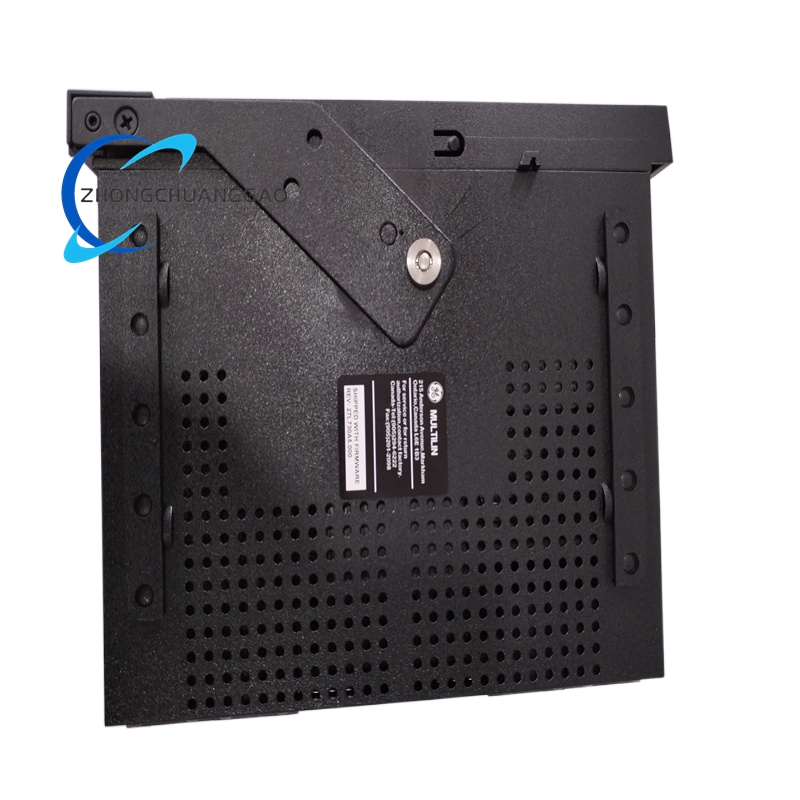

GE 760-P5-G5-S5-HI-A20-R Feeder Management Relay
GE 760-P5-G5-S5-HI-A20-R Feeder Management Relay - Image 2
GE 705-1512-01 Control Module
GE 705-1512-01 Control Module
Back to products
GE 04220FL11232A RXI Controller
GE 04220FL11232A RXI Controller

GE 760-P5-G5-S5-HI-A20-R Feeder Management Relay

Technical Specifications:

  • Current Inputs:
    • 5A phase current input
    • 5A zero-sequence current input
    • 5A sensitive ground current input
  • Power Supply:
    • Rated for 88-300 VDC or 70-265 VAC @ 48-62 Hz
  • Outputs:
    • Eight 4-20 mA analog outputs for integration with monitoring and control systems
Category:
Description
  • Display:
    • Enhanced LCD display with a wider viewing area and simplified design for easy local parameter viewing and operation
  • Communication:
    • Ethernet 10Base-T option for network connectivity and remote interaction

Functional Characteristics:

  • Comprehensive Monitoring:
    • Monitors various electrical parameters such as voltage, current, frequency, and power factor to detect abnormalities and potential faults.
  • Protection Functions:
    • Provides overcurrent, undercurrent, overvoltage, undervoltage, overfrequency, and underfrequency protection to safeguard feeder circuits from damage.
  • Data Logging and Analysis:
    • Features data recording, oscilloscope, waveform capture, and actual value metering functions for detailed system analysis.
    • Users can view data via the LCD display or use GE Multilin’s EnerVista 760 software for trend analysis, graphing, and exporting data.
  • Remote Monitoring and Control:
    • Supports remote monitoring and control via Ethernet, enabling real-time system status checks and adjustments from a central location.
  • Automation Capabilities:
    • Can be programmed to execute automated operations based on predefined conditions, such as switching to backup feeders in case of a fault.
  • User-Friendly Interface:
    • Offers programmable setpoint menu navigation, allowing users to easily access and configure metering, status, maintenance, and trip counter settings.
  • Security Features:
    • Includes hardware and password security functions to prevent unauthorized changes and ensure system integrity.

Application Scenarios:

  • Power Distribution Systems:
    • Used in electrical substations and distribution networks to monitor and protect feeder circuits, ensuring reliable power delivery to end-users.
  • Industrial Automation:
    • Integral part of industrial control systems, providing protection and monitoring for motors, pumps, and other critical equipment in manufacturing plants.
  • Renewable Energy:
    • Applied in solar and wind power generation systems to manage and protect feeder circuits connecting renewable energy sources to the grid.
  • Infrastructure Projects:
    • Used in large-scale infrastructure projects such as airports, railways, and data centers to ensure the stable operation of electrical feeder systems.
