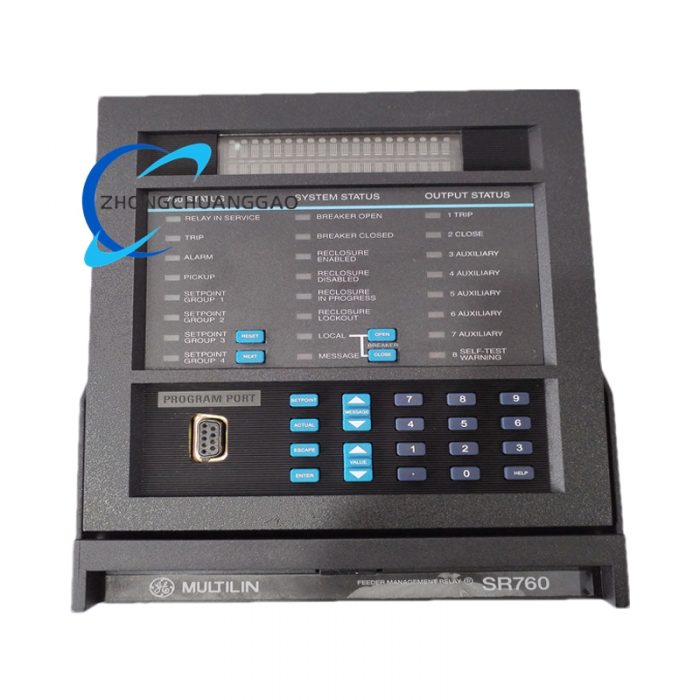

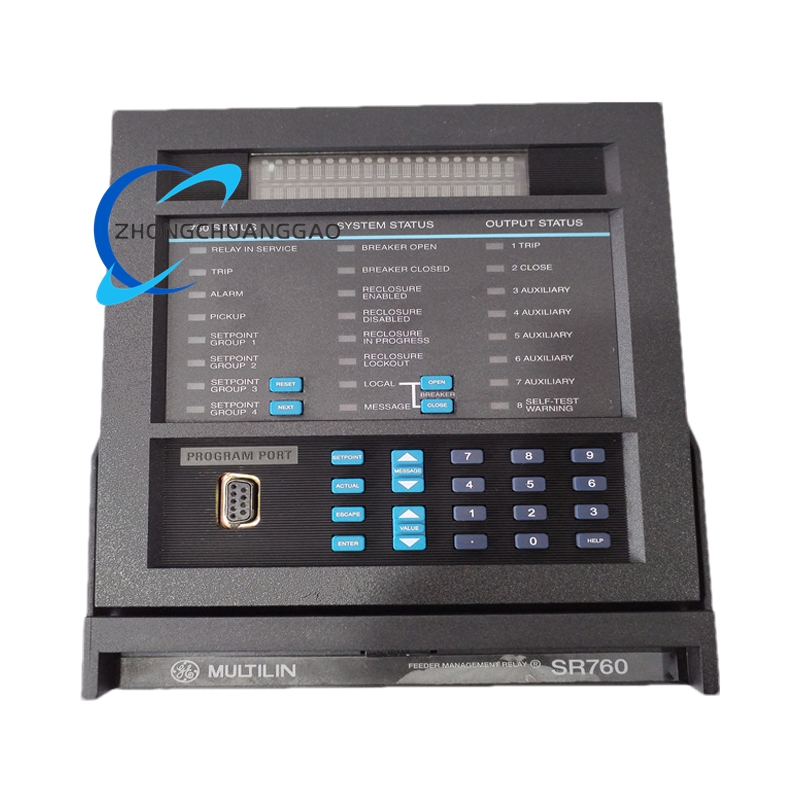

GE 760-P5-G5-S5-HI-A20-R

  • Power Supply: Rated 88 – 300 VDC, 70 – 265 VAC @ 48 – 62 Hz.
  • Ambient Storage Temperature Range: – 40°F to + 176°F (- 40°C to + 80°C).
  • Operating Temperature Range: – 40°F to + 140°F (- 40°C to + 60°C).
  • Pollution Degree: II.
  • Analog Input Conversion Range: 0 to 21 mA.
  • Communications Baud Rate: 300 to 19200 baud.
  • Relay Dimensions: Approximately 18 cm W, 16.5 cm L, 21.5 cm H.
  • Outputs: Eight 4 – 20 mA analog outputs.
Category:
Description
Function Features
  • Current Input Options: It has 5A phase current inputs, 5A zero sequence current inputs, and 5A sensitive ground current inputs, providing versatility for different power system applications.
  • Display and Interface: Includes a red breaker closed LED and an enhanced display with an Ethernet 10Base – T option. The enhanced faceplate has a wider LCD and a simpler design, allowing the relay to connect to larger networks and be interacted with remotely.
  • Monitoring Functions: With data logging, oscillography, waveform capture, and actual value metering functions. Users can view some of this data through the device’s 40 – character alphanumeric LCD display or use GE Multilin’s Enervista 760 software program, which provides a more streamlined and extended user interface. Data recorded by the relay can be trended, graphed, and exported for further review.
  • Protective Features: Some of the protective features common to the series, such as reclosure (able to open a circuit when overcurrent is detected and auto – assess system conditions to decide whether to reclose), neutral and phase directional control (protecting against phase – to – phase and phase – to – earth short – circuits), bus transfer (transferring the load bus to an alternate power source when normal power fails), and reverse power detection (raising a trip or alarm when power flows in an unintended direction).
Application Scenarios
  • Power Distribution Systems: It is mainly used in power distribution feeder systems to monitor and protect the normal operation of the feeder, ensuring the reliability and safety of power supply.
  • Industrial Power Systems: Applicable to various industrial power systems, such as factories, mines, etc., to protect the safe operation of electrical equipment in the system and prevent power failures and faults.
