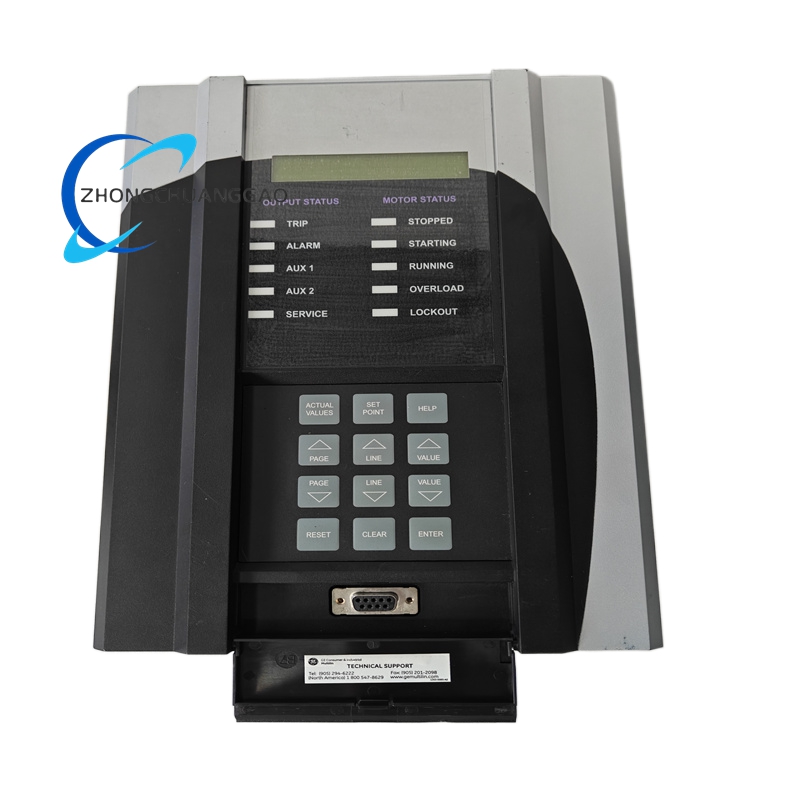

GE 369-HI-R-M-0-P1-0-E Motor Management Relay

Technical Specifications:

  • Control Power Input: 50-300 VDC or 60-265 VAC
  • Current Input: 1 A or 5 A (secondary of current transformers)
  • Voltage Input: 50-300 VAC (line-to-line)
  • Frequency Range: 45-65 Hz
  • Output Contacts: Multiple programmable relay outputs (up to 8) for tripping and alarm functions
  • Analog Outputs: 4-20 mA or 0-20 mA programmable outputs for metering or control purposes
  • Digital Inputs: 6 optically isolated inputs for external control or status monitoring
  • RTD Inputs: 12 channels for temperature monitoring (e.g., stator windings, bearings)
Category:
Description
  • Operating Temperature: -40°C to +70°C
  • Storage Temperature: -40°C to +85°C
  • Humidity Tolerance: 5% to 95% RH (non-condensing)
  • Enclosure Rating: IP20 (indoor use)
  • Mounting: DIN rail or panel-mounted
  • Communication: RS-485 or RS-232 for integration with SCADA or DCS systems
  • Display: Backlit LCD with 40-character alphanumeric display for easy parameter viewing and configuration

Functional Characteristics:

  • Advanced Motor Protection:
    • Overcurrent protection with inverse-time, definite-time, and thermal overload curves.
    • Phase loss and phase reversal detection.
    • Ground fault protection with adjustable sensitivity.
    • Stalled rotor protection to detect motor blockages.
    • Negative sequence current protection for unbalanced conditions.
  • Customizable Overload Curves:
    • Supports up to 15 standard overload curves or custom FlexCurve™ profiles for precise motor thermal modeling.
  • Precision Metering:
    • Measures real-time parameters such as voltage, current, power factor, frequency, and energy consumption.
    • Provides true RMS measurements for accurate readings under non-linear loads.
  • Event Logging and Waveform Capture:
    • Records fault events, alarms, and operational data for troubleshooting.
    • Captures waveforms during fault conditions for detailed analysis.
  • Thermal Monitoring:
    • Integrates RTD inputs to monitor motor temperatures and prevent overheating.
  • User-Friendly Interface:
    • Intuitive keypad and LCD display for local configuration and monitoring.
    • EnerVista 369 software support for remote programming and data analysis.
  • High Reliability:
    • Designed for harsh industrial environments with robust construction and wide temperature tolerance.

Application Scenarios:

  • Industrial Automation:
    • Protects motors in conveyor systems, pumps, fans, and compressors.
  • Power Generation:
    • Ensures reliable operation of motors in turbines, generators, and auxiliary systems.
  • Oil and Gas:
    • Safeguards motors in drilling, pumping, and refining processes where downtime is costly.
  • Water Treatment:
    • Monitors and protects motors in water and wastewater treatment plants.
  • HVAC Systems:
    • Controls and protects motors in heating, ventilation, and air conditioning units.
  • Chemical and Petrochemical:
    • Used in process control systems where motor failure could lead to safety hazards.
  • Mining and Cement:
    • Provides protection for heavy-duty motors in crushers, mills, and conveyors.
  • Transportation:
    • Applicable in rail systems, electric vehicles, and airport baggage handling systems.
