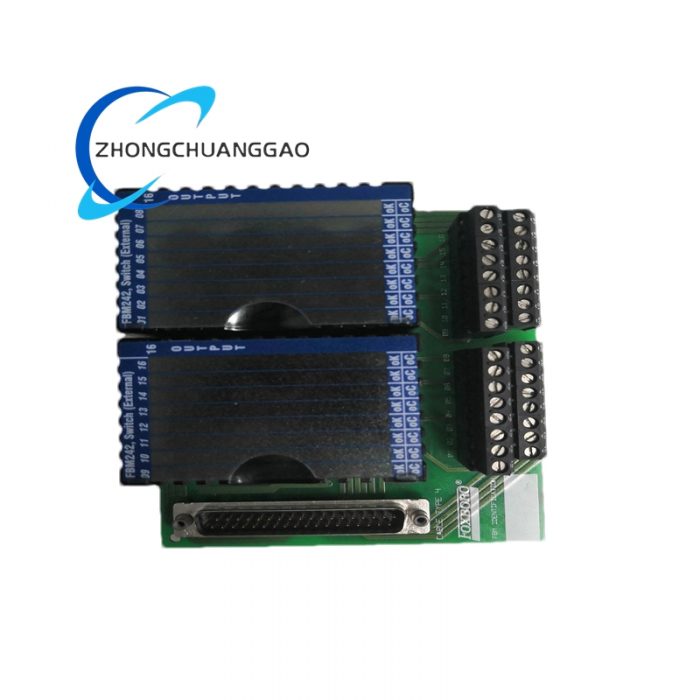

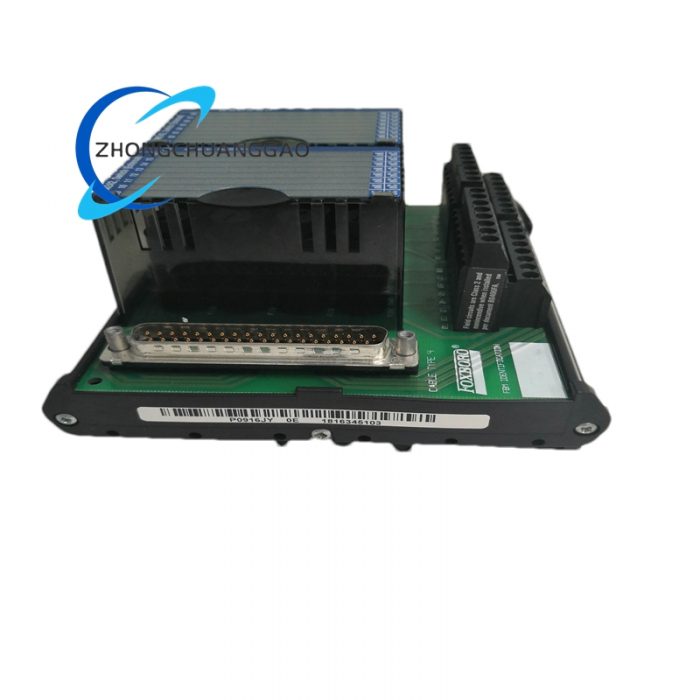

Foxboro P0916JY

Technical Specifications
  • Power Supply: 24 VDC
  • Power Consumption: 50 mA
  • Input Voltage Range: 0 to 24 VDC
  • Input Current: 2 mA
  • Output Voltage Range: 0 to 24 VDC
  • Output Current: 2 A
  • Operating Temperature: – 40 to 70 °C
  • Storage Temperature: – 40 to 85 °C
  • Humidity: 0 to 95% RH, non – condensing
  • Vibration: 5 g rms, 10 to 500 Hz
  • Shock: 15 g, 11 ms half – sine
Category:
Description
Functional Characteristics
  • Multiple I/O Points: It has 16 switch inputs and 8 switch outputs, which can meet the needs of different field device connections.
  • Contact Types: It supports form A and form C contacts, providing more connection flexibility.
  • Isolation: The inputs and outputs are isolated, which can effectively prevent interference between different circuits and improve the reliability of the system.
  • Mounting Method: It is DIN rail mountable, which is convenient for installation and saves space.
Application Scenarios
  • Industrial Automation: It is ideal for use in industrial automation systems where reliable switching is critical, such as in manufacturing production lines for equipment control and status monitoring.
  • Process Control Systems: It can enhance the functionality of process control systems by managing external signals and devices, such as in chemical production processes for monitoring and controlling the on – off of valves and pumps.
  • Safety Systems: It can be employed in safety – critical systems requiring robust external switching mechanisms, such as in power plants for safety interlock control.
