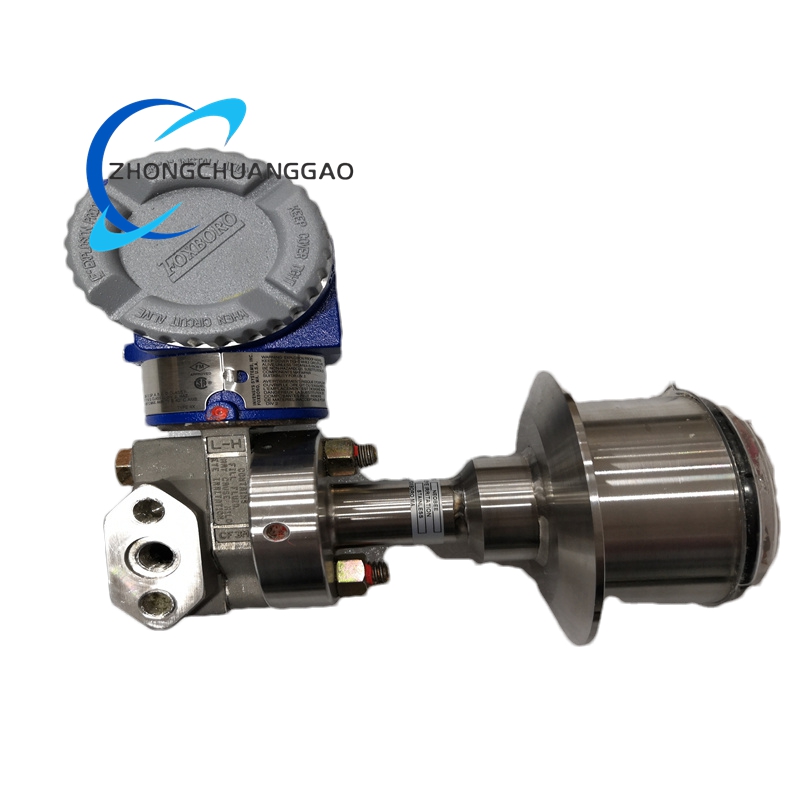

FOXBORO IDP10-AF1C01F Pressure Transmitter

• Electrical Interface:
  • M20×1.5 internal thread for electrical connections.
  • Supports 24 V DC loop-powered operation.
• Process Connection:
  • Flange-mounted or threaded connection options for compatibility with diverse piping systems.

Key Features

• High Stability:
  • Utilizes advanced silicon pressure-sensitive elements and dynamic Wheatstone bridge circuits to ensure linear output and minimal temperature drift.
• Robust Construction:
  • 316SS process housing and cobalt-nickel-chromium sensors provide durability under static pressures up to 25 MPa.
• Self-Diagnostics:
  • Built-in fault detection and diagnostic tools simplify maintenance and troubleshooting.
• Flexible Configuration:
  • Adjustable zero and span settings via LCD displays or software interfaces.
  • Supports multiple display units (e.g., kPa, bar, psi).
• Energy Efficiency:
  • Low power consumption (24 V DC loop-powered) reduces operational costs.

Applications
The FOXBORO IDP10-AF1C01F is widely deployed in industries requiring precise pressure monitoring and control:

• Chemical Processing:
  • Monitors reactor, pipeline, and vessel pressures to ensure safe chemical reactions and material handling.
• Oil & Gas:
  • Tracks pressure in wells, pipelines, and storage tanks to prevent leaks and optimize extraction/transport processes.
• Power Generation:
  • Regulates steam, gas, and liquid pressures in turbines and boilers to maintain stable energy output.
• Water Treatment:
  • Controls pressure in pumps, pipes, and tanks to sustain consistent water flow and quality.
• Manufacturing:
  • Integrates into automated production lines to monitor pressure in hydraulic systems, pneumatic tools, and material handling equipment.
• Pharmaceuticals:
  • Ensures sterile and controlled environments by tracking pressure in reactors and filtration systems.

Additional Notes

• The transmitter’s modular design allows for easy upgrades and scalability, extending its service life.
• Complies with international standards such as UL, CE, and CENELEC for safety and environmental resilience.
• FOXBORO’s global support network ensures prompt technical assistance and spare parts availability.
