Foxboro FPS400-24 P0922YU

Technical Specifications
  • Input Voltage: 120/240 V AC or 125 V DC. The input voltage range is 85 – 265 V AC or 108 – 145 V DC.
  • Input Frequency: 47 – 63 Hz.
  • Output Voltage: 24.0 V DC, with a tolerance of ±0.2 V DC.
  • Output Current: Up to 16.7 A.
  • Power Capacity: 400 W.
  • Efficiency: Up to 90%.
  • Dimensions: Approximately 17.8 cm x 10.7 cm x 21.5 cm.
  • Weight: About 2.84 kg.
  • Operating Temperature Range: – 40°C to +70°C.
Category:
Description
Functional Characteristics
  • Wide – Range Input Voltage: Can automatically accept both AC and DC input voltages, adapting to different grid conditions in various countries and regions.
  • High Efficiency: The sealed power supply is highly efficient, with a maximum efficiency of up to 95% for P0922YU, reducing heat generation and improving energy utilization.
  • Power Factor Correction: It has power factor correction function, which can improve the power utilization rate.
  • Multiple Protection Functions: Includes over – voltage, over – current and short – circuit protection, as well as double – stage current limiting and over – voltage shutdown circuits to ensure the safety and stability of the power supply.
  • Modular Design: Easy to install and maintain, with a DIN – rail – mountable design.
Application Scenarios
  • Industrial Automation Control Systems: Such as the chemical, petroleum, natural gas, and power industries.
  • Process Control Systems: Like water treatment, pharmaceuticals, and metallurgy.
  • Energy Management Systems: For example, the DCS monitoring system in power plants.
  • Building Automation Systems: Such as building HVAC control.
Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Foxboro FPS400-24 P0922YU”

Your email address will not be published. Required fields are marked *

Shipping and Delivery
wd-ship-1
wd-ship-2

MAECENAS IACULIS

Vestibulum curae torquent diam diam commodo parturient penatibus nunc dui adipiscing convallis bulum parturient suspendisse parturient a.Parturient in parturient scelerisque nibh lectus quam a natoque adipiscing a vestibulum hendrerit et pharetra fames nunc natoque dui.

ADIPISCING CONVALLIS BULUM

  • Vestibulum penatibus nunc dui adipiscing convallis bulum parturient suspendisse.
  • Abitur parturient praesent lectus quam a natoque adipiscing a vestibulum hendre.
  • Diam parturient dictumst parturient scelerisque nibh lectus.

Scelerisque adipiscing bibendum sem vestibulum et in a a a purus lectus faucibus lobortis tincidunt purus lectus nisl class eros.Condimentum a et ullamcorper dictumst mus et tristique elementum nam inceptos hac parturient scelerisque vestibulum amet elit ut volutpat.

Related products

Foxboro A2H124-24FX Ethernet Switch

Technical Specifications
  • Ports: 24 x 100Base - FX (MT - RJ), 2 x SFP uplink, 2 x 10/100/1000Base - T (RJ - 45), 1 x DB9 serial console port
  • Switching Capacity: 12.8 Gbps (standalone), 102.4 Gbps (stacked)
  • Forwarding Rate: 9.5 Mpps (standalone), 76.2 Mpps (stacked)
  • MAC Address Table: 8,000 entries
  • VLAN Support: 4,096 VLAN IDs, 1,024 VLAN entries per stack
  • Jumbo Frame Support: Up to 9,216 bytes
  • Power Input: 100 – 240 V AC, 50 – 60 Hz
  • Power Consumption: ~ 59 W
  • Operating Temperature: 0 °C to 50 °C
  • Storage Temperature: - 40 °C to 70 °C
  • Humidity: 5% to 95% (non - condensing)
  • Dimensions: 44.1 cm (W) × 4.4 cm (H) × 21.0 cm (D)
  • Weight: 2.7 kg
Read more
Quick view

FOXBORO A2H124-24FX Industrial Managed Switch

The FOXBORO A2H124-24FX (also referred to as the Enterasys A2H124-24FX) is a Layer 2 managed Ethernet switch designed for industrial and enterprise networks. Manufactured by Enterasys Networks (now part of Extreme Networks), this switch combines high-performance connectivity with robust security and scalability.
Read more
Quick view
Placeholder

Foxboro E69F-T-I2-JRS Pneumatic Signal Converter or Industrial Control Module

Technical Specifications
  • Input Signal Range: 4 - 20 mA DC, 4 - 12 mA DC or 12 - 20 mA DC
  • Output Signal Range: 20 - 100 kPa (3 - 15 psi, or 0.2 - 1.0 bar or kg/cm²)
  • Accuracy: ±0.5% of span
  • Resolution: 0.1%
  • Supply Voltage: 24 VDC
  • Operating Temperature: - 40°C to 85°C
  • Storage Temperature: - 55°C to 125°C
  • Enclosure Rating: IP66
  • Dimensions: 6.1 x 4.3 x 3.2 inches
  • Weight: 2.2 pounds
Read more
Quick view

Foxboro FBM211 P0916JT Digital Input Module

Technical Specifications
  • Input Channels: 16 group - isolated and independent channels
  • Input Range: 0 - 20.4 mA DC (each channel current limited to 33 mA)
  • Input Voltage Range: 24 V DC +5%, -10% (redundant)
  • Power Consumption: 7 W (maximum) at 24 V DC, 11 W (maximum) at 24 V DC with all inputs at 20.4 mA (internal power)
  • Communication: Communicates with its associated FCM or FCP via the redundant 2 Mbps module fieldbus
  • Dimensions: Approximately 10.2 cm (including mounting lugs) x 4.5 cm x 10.4 cm
  • Shipping Weight: 2 kg
Read more
Quick view

Foxboro FBM215 HART Communication Output Module

Technical Specifications
  • Output Channels: 8 isolated output channels
  • Output Signal: Standard 4 - 20 mA analog output signal or digital HART frequency - shift keying (FSK) signal superimposed on 4 - 20 mA analog output signal
  • Communication with Devices: Point - to - point, master/slave, asynchronous, half - duplex, 1200 baud
  • Error Check: Parity check for each byte, CRC check byte for each message
  • Power Supply Voltage: 24 V DC (+5%)
  • Power Consumption: 7 W (maximum)
  • Operating Temperature Range: -20°C to +70°C
  • Relative Humidity: 5% to 95% (non - condensing)
  • Altitude: -300 m to +3000 m
  • Vibration Resistance: 7.5 m/s² (0.75 g), 5 - 500 Hz
  • Dimensions: Approximately 4.6 cm x 11 cm x 11.5 cm
  • Weight: Approximately 0.32 kg
Read more
Quick view

Foxboro FBM217 P0914TR Group Isolated Input Module

Technical Specifications
  • Input Channels: 32 isolated channels
  • Input Voltage Range: 24 VDC (+5%, -10%)
  • Typical Current: 2.2 mA at 30 VDC
  • Power Consumption: 3 W max at 24 VDC
  • Dimensions (L x W x H): 10.2 cm x 4.5 cm x 10.4 cm
  • Weight: 0.3 kg
Read more
Quick view

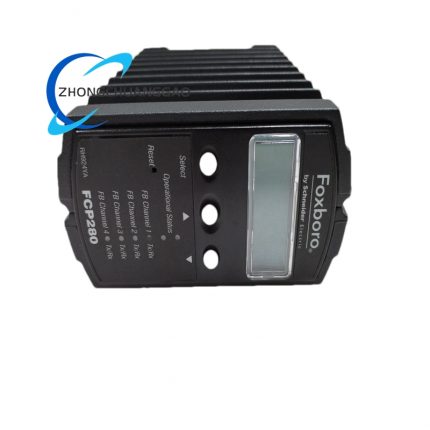

FOXBORO FCP280 RH924YA Field Control Processor
