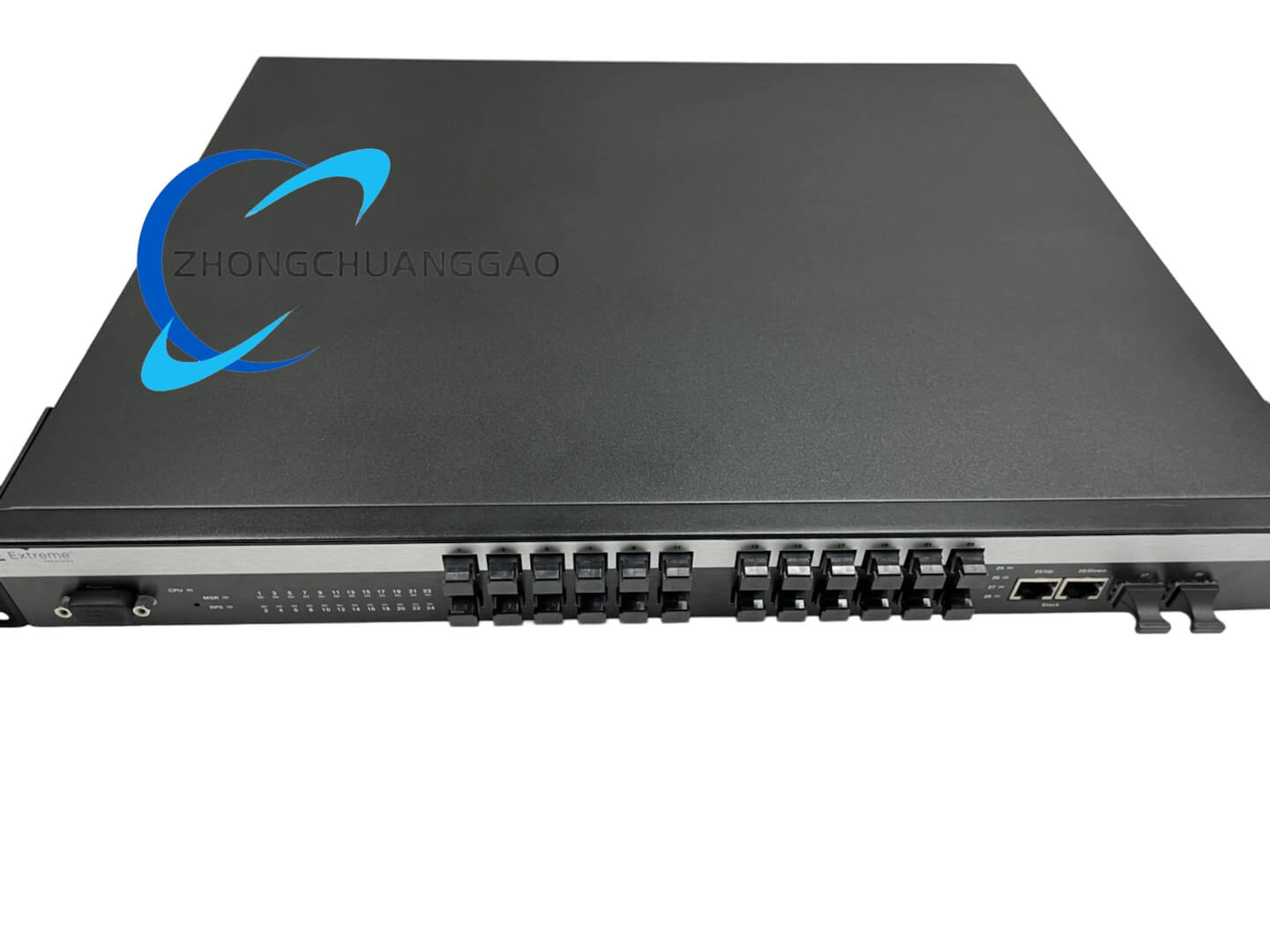

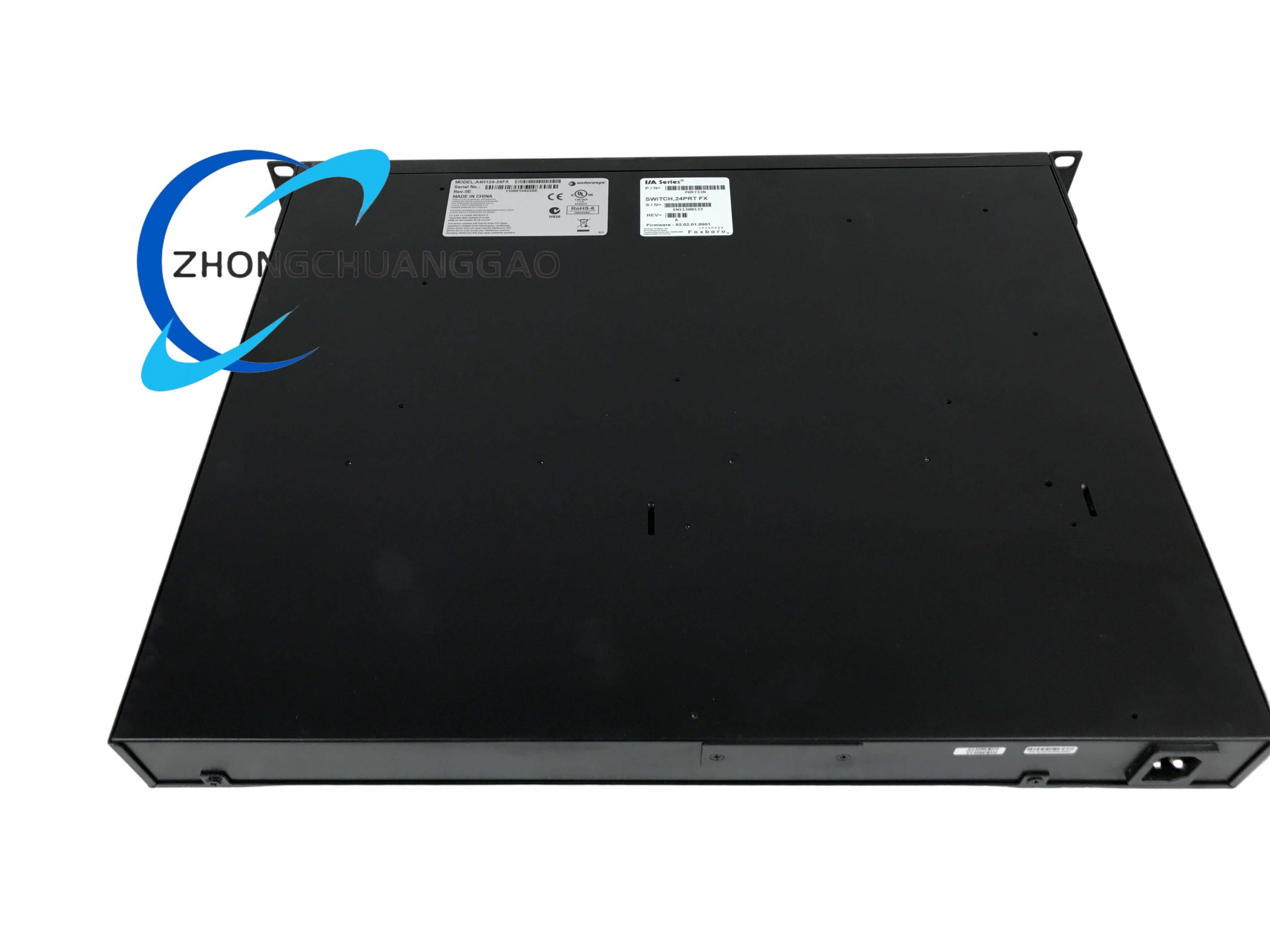

ExtremeNetworks A4H124-24FXP0973JN

• Power Supply:
  • Internal AC power supply (120/230V, 50-60Hz)
  • Optional redundant power supply (STK-RPS-150PS, 150W DC) for failover protection
• Management:
  • In-band management: Telnet, SNMP, RMON, HTTP, TFTP, SSH
  • Out-of-band management: DB9 console port for direct access
  • WebView for intuitive web-based configuration
  • CLI (Command-Line Interface) for advanced scripting and automation
• Environmental Tolerance:
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -40°C to 70°C
  • Humidity: 10% to 90% (non-condensing)

Key Features

• High Availability:
  • Redundant power supply support ensures continuous operation during power failures.
  • Stacking redundancy eliminates single points of failure, maintaining network connectivity even if one switch in the stack fails.
• Advanced QoS (Quality of Service):
  • Multi-layer packet classification and priority queuing ensure critical applications (e.g., VoIP, video streaming) receive preferential treatment.
  • Supports DiffServ, 802.1p, and port-based prioritization.
• Security:
  • Port security restricts access to authorized devices via MAC address filtering.
  • IEEE 802.1X authentication ensures only authenticated users can connect.
  • Access Control Lists (ACLs) filter traffic based on IP, MAC, or protocol.
• Scalability:
  • Stacking allows seamless expansion of port density and bandwidth without reconfiguring the network.
  • Supports Link Aggregation Control Protocol (LACP) for combining multiple links into a single logical connection.
• Energy Efficiency:
  • Designed for low power consumption, reducing operational costs.
  • Fanless design (in some configurations) ensures silent operation in noise-sensitive environments.

Applications

• Enterprise Networks:
  • Ideal for connecting end-user devices such as computers, IP phones, printers, and surveillance cameras in office environments.
  • Supports high-density wiring closets and departmental networks.
• Data Centers:
  • Provides reliable, high-speed connectivity for servers and storage devices.
  • Scalable architecture accommodates growing data center demands.
• Campus Networks:
  • Connects multiple buildings or floors within a campus, ensuring seamless communication between departments.
  • Supports bandwidth-intensive applications like video conferencing and online learning platforms.
• Industrial Automation:
  • Rugged design and wide temperature tolerance make it suitable for industrial environments requiring reliable network connectivity.
• Surveillance and Security:
  • Connects IP cameras and access control systems, ensuring real-time video transmission and monitoring.

Warranty and Support

• Limited Lifetime Warranty: Covers hardware defects and failures for the product’s lifespan.
• Firmware Updates: Regular updates to improve functionality and security.
• Technical Support: 24/7 assistance via phone, email, or online portal.
