B&R ECPP40-01 Power Supply Module
Technical Specifications:
- Input Voltage Range: 85-264V AC (50/60Hz)
- Output Voltage: 24V DC
- Rated Output Current: 1.7A (40W max power)
- Efficiency: ≥88%
- Protection Features: Overload, short-circuit, and overvoltage protection
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Cooling Method: Natural convection (fanless)
- Dimensions: 125mm × 80mm × 100mm (L × W × H)
- Weight: 0.6kg
- Certifications: CE, UL, cUL
- IP Rating: IP20 (dust and particle resistance)
B&R ECE243-0 Ethernet Communication Module
Technical Specifications:
- Interface: Dual Ethernet ports (10/100 Mbps)
- Protocols Supported: POWERLINK, OPC UA, Modbus TCP, EtherNet/IP, PROFINET
- Data Transfer Rate: Up to 100 Mbps
- Operating Temperature: -25°C to +60°C
- Storage Temperature: -40°C to +85°C
- Humidity Resistance: Up to 95% non-condensing
- Dimensions: 120mm × 80mm × 30mm (L × W × H)
- Weight: 0.3kg
- Power Consumption: 5W (typical)
- Certifications: CE, UL, cUL
- IP Rating: IP20 (dust and particle resistance)
B&R NT43 Power Supply Unit
Technical Specifications:
- Output Voltage: 24V DC
- Rated Current: 43A
- Input Voltage Range: 85-264V AC
- Efficiency: ≥90%
- Protection: Overload, short-circuit, and overvoltage protection
- Operating Temperature: -25°C to +70°C
- Storage Temperature: -40°C to +85°C
- Cooling: Natural convection (fanless)
- Dimensions: 125mm × 80mm × 100mm (L × W × H)
- Weight: 0.8kg
- Certifications: CE, UL, cUL
- IP Rating: IP20 (dust and particle resistance)
B&R ECPP60-01 Power Supply Module
Technical Specifications:
- Input Voltage: 100–240V AC (50/60Hz)
- Output Voltage: 24V DC
- Output Current: 2.5A (60W max power)
- Efficiency: ≥85%
- Protection: Overload, short-circuit, and overvoltage protection
- Operating Temperature: -25°C to +70°C
- Cooling: Convection cooling (no fans required)
- Dimensions: 125mm × 80mm × 100mm (L × W × H)
- Weight: 0.5kg
- Certifications: CE, UL, cUL
B&R ECPE84-2 Analog Input Module
Technical Specifications:
- Input Channels: 8 analog inputs
- Input Range: 0–25 mA (configurable)
- Resolution: 15-bit
- Isolation: Channel-to-system current isolation
- Input Voltage: 24V DC
- Operating Temperature: -20°C to +60°C
- Communication Interfaces: Ethernet, RS232, RS485
- Dimensions: 1.0 inch x 8.5 inches x 5.5 inches (2.5 cm x 21.6 cm x 14.0 cm)
- Weight: 0.3 kg
- Origin: Austria

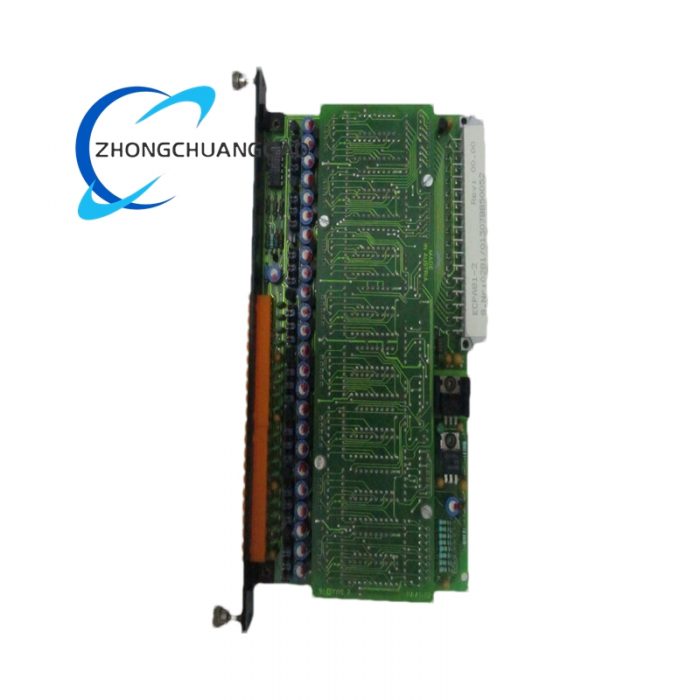

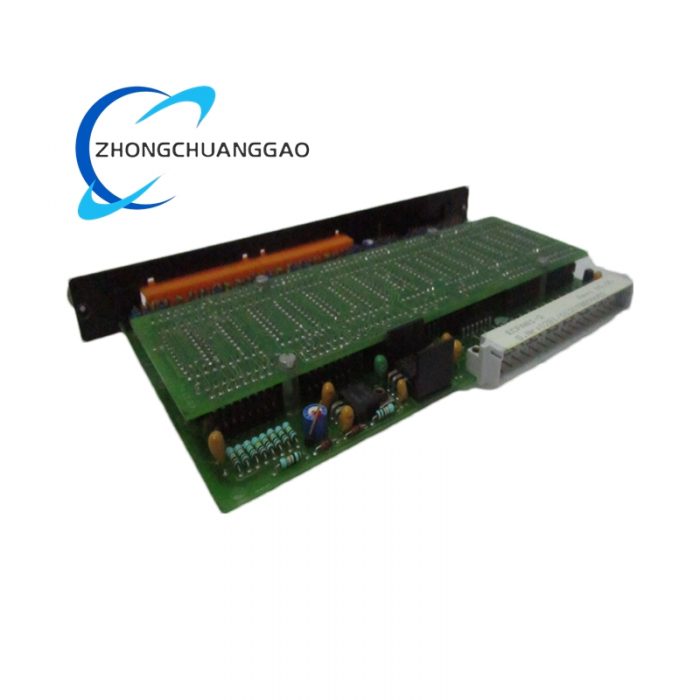

B&R ECPA81-2 Parallel Processor Interface Module
Technical Specifications:
- Control Functions: Equivalent to PLC capabilities for logic operations, sequence control, timing, and counting.
- Communication: Supports wireless pulse transmission.
- Addressing: Configurable via 8-bit rotary dial.
- Frequency Ranges: Two selectable frequency bands.
- Backup Power: Integrated connection for uninterrupted operation during power failures.
- Error Handling: Simplified detection and correction of setup errors.
B&R DI426 Digital Input Module
Technical Specifications:
- Input Channels: 32 digital inputs
- Input Voltage: 24V DC
- Response Time: 1 millisecond
- Input Types: Supports both sink (NPN) and source (PNP) configurations
- Isolation: 8-group electrical isolation between input channels
- Module Design: Modular structure for easy installation and maintenance
- Operating Temperature: -20°C to +60°C
- Protection Rating: IP20 (non-condensing environments)
B&R 2CP100.60-1 Control Module
Technical Specifications:
- Operating Voltage: 220V AC (±10%), 50Hz (±5%)
- Power Consumption: ≤20VA
- Indicating Accuracy: ±0.5%
- Recording Accuracy: ±1%
- Control Accuracy: ±0.5%
- Output Contact Capacity: AC 220V/1A (non-inductive load), DC 28V/2A (resistive load)
- Set Range: 0–100% (two groups)
- Travel Time: ≤5 seconds
- Indication Insensitivity Zone: ±0.25%
- Scale Length: 550mm
B&R HCMCO3MC-1A High-Performance Control Module
Technical Specifications:
- Operating Voltage: 220V AC (some sources indicate 240V AC for specific variants).
- Output Frequency: Up to 100kHz (30kHz in certain configurations).
- I/O Configuration: Configurable for discrete inputs/outputs (e.g., 16 channels for digital signals).
- Signal Types: Supports 4–20 mA, RS485, and HART protocols for sensor communication.
- Environmental Rating: IP67 (dust-tight and waterproof), with operating temperatures ranging from -40°C to +85°C.
- Material: Stainless steel housing for corrosion resistance.
- Certifications: ATEX/CSA-certified for explosive atmospheres, complying with IEC 61511 (SIL 3) for safety systems.

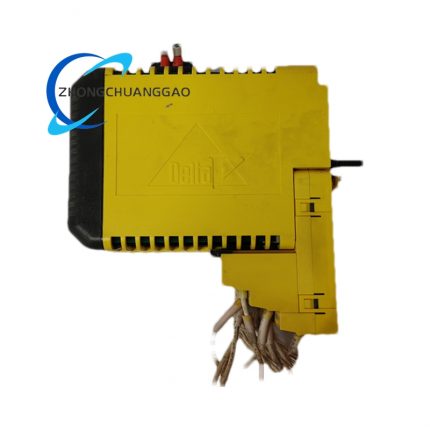

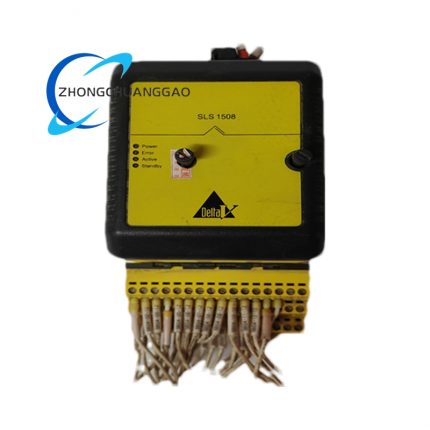

EMERSON SLS1508 Digital I/O Expansion Module & DeltaV SIS Logic Solver
Technical Specifications
Digital I/O Expansion Module:- I/O Channels: Configurable for discrete inputs/outputs (e.g., 16 channels for digital signals).
- Signal Types: Supports 4–20 mA, RS485, HART protocol for sensor communication.
- Power Supply: 24V DC (1A).
- Environmental:
- Temperature: -40°C to +70°C (extended models up to +85°C).
- Protection: IP67 (dust/water-resistant), ATEX/CSA-certified for explosive atmospheres.
- Material: Stainless steel housing for corrosion resistance.
EMERSON PR6426010-140 Pressure Transmitter with CON021916-200 Configuration
Technical Specifications:
- Pressure Range:
- Gauge Pressure: 0–10 bar (configurable for other ranges).
- Absolute Pressure: Up to 100 bar (model-dependent).
- Accuracy: ±0.075% of span (typical).
- Output Signal:
- 4–20 mA two-wire current loop (standard).
- HART digital communication for remote configuration.
- Overload Capacity: 2x rated pressure without damage.
- Process Temperature:
- Compensated Range: -40°C to +85°C.
- Operating Range: -50°C to +125°C (with appropriate cooling).
EMERSON Liebert 805411 Precision Cooling Controller
Technical Specifications:
- Control Capacity: Supports group control of up to 32 air conditioning units, with flexible grouping for backup, rotation, and load balancing.
- Communication Interfaces:
- RS485/Modbus RTU for integration with building management systems (BMS).
- Ethernet for remote monitoring and configuration.
- Input/Output Signals:
- Analog inputs for temperature/humidity sensors.
- Digital outputs for alarm and status indicators.
- Relay outputs for compressor/fan control.
- Display: LCD screen with multi-language support for real-time parameter visualization.
- Power Supply: 24V AC/DC with redundancy options.
