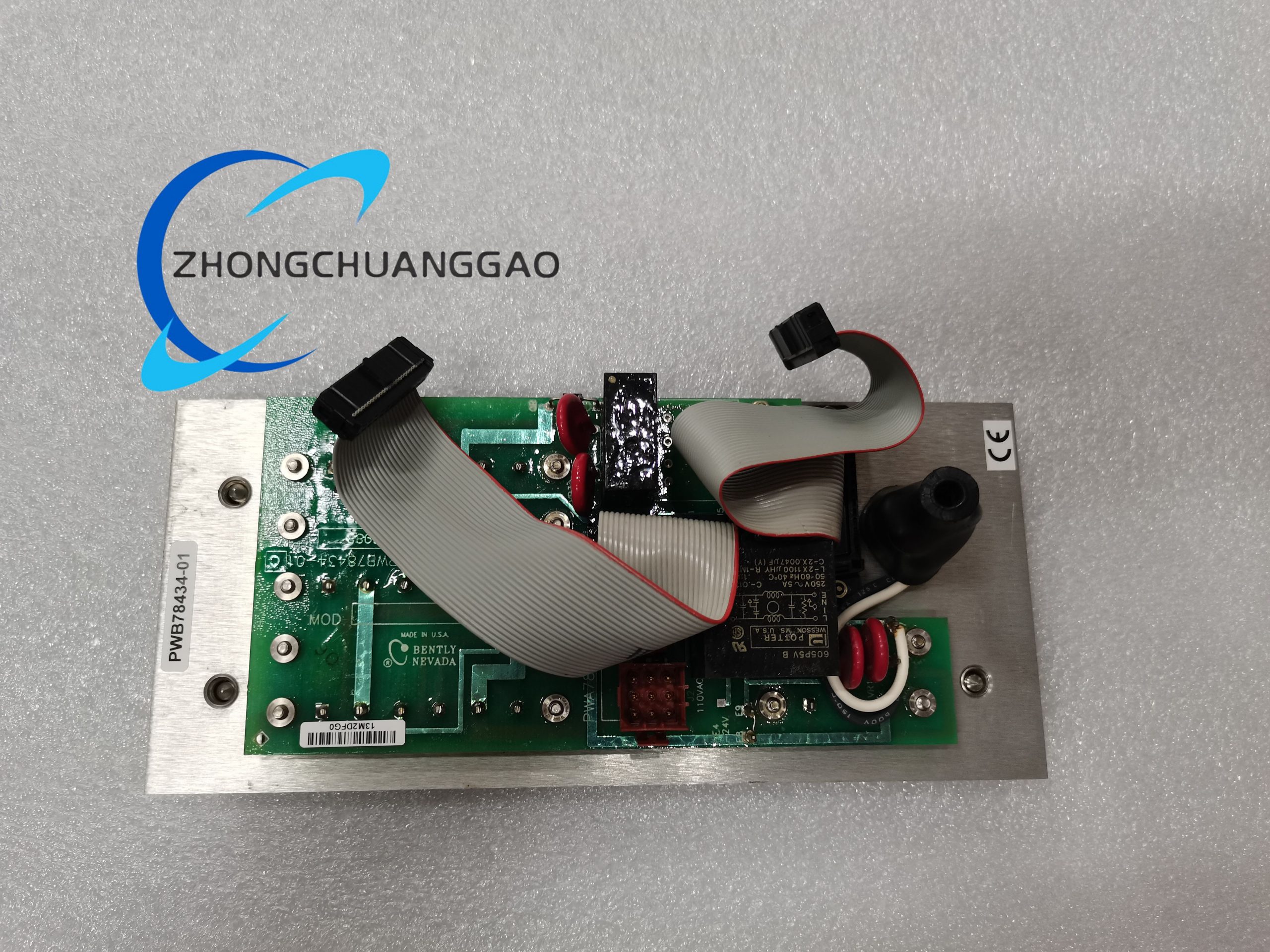

Bently Nevada PWB78434-01 Transient Data Interface PCB Circuit Board

• Transmission Performance: Supports high – speed transient data transmission, which can capture and transmit instantaneous equipment operation parameter signals without delay
• Installation Compatibility: Matches the standard slot design of Bently industrial control cabinets and can be installed in common industrial control chassis

Function Features

• High – speed Transient Data Processing: It focuses on capturing and processing transient data generated during the operation of industrial machinery. It can quickly identify and convert instantaneous signals such as sudden vibration surges and instantaneous pressure spikes of equipment into storable and analyzable data formats, ensuring no loss of key transient fault signals.
• Seamless System Integration: It supports multiple industrial communication protocols and can seamlessly connect with Bently’s 3500 series monitoring modules, DCS distributed control systems and SIS safety instrument systems. It realizes unobstructed data sharing between different system components and eliminates data communication barriers between devices.
• Stable Operation in Harsh Environments: The PCB circuit board is designed with anti – interference and anti – corrosion properties. It can resist electromagnetic interference from industrial power supplies and mechanical vibration on production sites. It maintains stable data transmission and processing capabilities in high – temperature, high – dust and high – humidity working conditions.
• Easy Replacement and Maintenance: It adopts a modular design that conforms to industrial standard specifications. It can be quickly removed and installed during maintenance. Suppliers can deliver the product within a short time after payment, which minimizes the downtime of the entire control system caused by module failure.
• Reliable Quality and Traceability: It undergoes strict quality testing before leaving the factory. The product has clear part number marking and supply chain records. The matching UPC code facilitates product information query and traceability, ensuring the authenticity and reliability of the product in procurement and use.

Application Scenarios

• Power Plant DCS Monitoring Systems: It is installed in thermal power and hydropower plants to match steam turbines and generator sets. It collects and transmits transient data such as instantaneous vibration of turbine shafts and sudden changes in generator load. It provides real – time data support for the DCS system to help operators detect potential equipment faults in a timely manner and avoid large – scale power outages.
• Petrochemical Compressor Units: It is applied to compressor units in oil and gas extraction and refining sites. It monitors transient parameters such as instantaneous pressure fluctuations in compressor cylinders and sudden changes in rotational speed during start – up. It transmits data to the SIS safety system. Once abnormal transient data exceeds the threshold, it triggers an early warning to prevent leakage accidents caused by compressor failure.
• Chemical Fluid Control Systems: It is integrated into chemical plant liquid medicine constant flow control systems. It captures transient changes in fluid flow rate and pressure in the pipeline. It ensures the stability of the chemical reaction process by transmitting data to the control system to adjust the flow valve in real time and avoid production quality problems caused by sudden changes in fluid parameters.
• Metallurgical Production Equipment: It is used in blast furnaces and rolling mill equipment in the metallurgical industry. It monitors transient vibration and temperature changes of equipment during high – load operation. It helps the control system adjust operating parameters in a timely manner, reduces equipment wear caused by unstable operation and ensures the continuity of the metallurgical production line.
