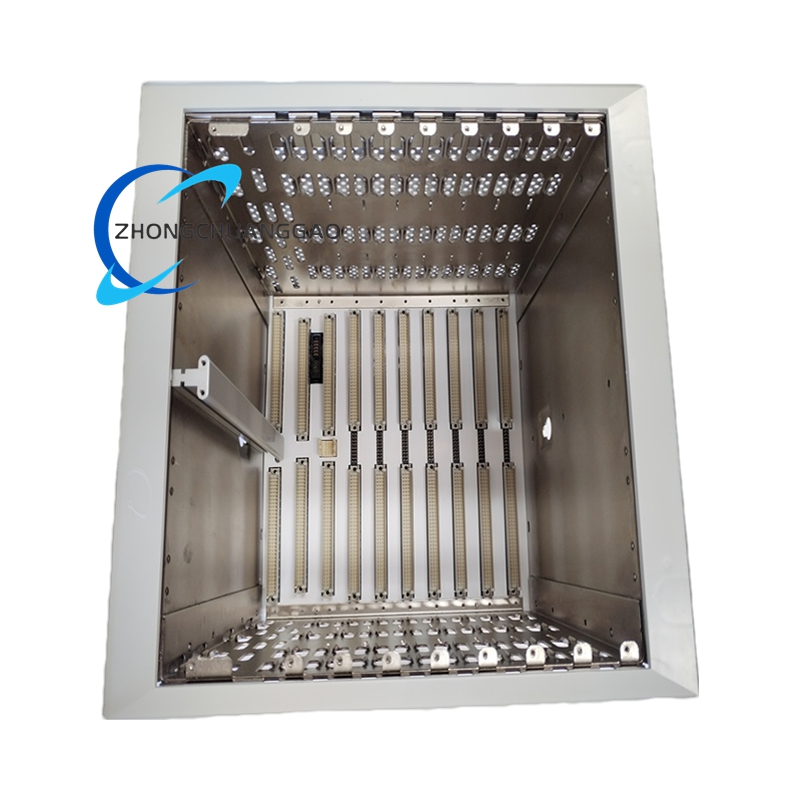

Bently Nevada 350005

• • Weight:
    • Full-size: 3.5 kg (7.7 lb); Mini-rack: 2.1 kg (4.6 lb) .
  • Mounting Options:
    • Panel Mount: Secures to rectangular cutouts in control panels with clamps.
    • Rack Mount: Installs on 19-inch EIA rails.
    • Bulkhead Mount: Mounts flush against walls/panels with front-accessible wiring (mini-rack not supported) .
  • Environmental Ratings:
    • Operating Temperature: -40°C to +85°C (-40°F to +185°F) .
    • Humidity: 5–95% non-condensing .
    • Protection: IP20 (dust protection) for indoor use .
• Power Supply:
  • Input: 85–264 VAC or 20–30 VDC via dedicated power supply modules (e.g., 3500/15) .
  • Output: 24 VDC distributed to all modules through the rack’s backplane.
  • Power Consumption: <10 W per module slot .
• Electrical Interfaces:
  • Backplane Communication: Proprietary high-speed bus for real-time data exchange between modules.
  • External Connectivity:
    • Optional communication gateway modules (e.g., 3500/92) support Modbus RTU, Ethernet/IP, and Profibus DP .
    • RS-485 and Ethernet ports for integration with SCADA/DCS systems .

Functional Features

1. Modular Architecture:
   • Slot Configuration:
     • Leftmost slots reserved for power supplies and rack interface modules (RIM).
     • Remaining slots accommodate a mix of monitoring modules (e.g., vibration, displacement, speed) and I/O modules .
   • Hot-Swap Capability: Modules can be replaced without powering down the system.
2. Centralized Data Management:
   • Real-Time Processing:
     • Aggregates data from up to 14 monitoring modules (e.g., 3500/42M for vibration, 3500/53 for speed) .
     • Supports waveform capture and trend analysis for predictive maintenance.
   • Alarm Handling:
     • Two-stage alarms (Alert/Danger) with configurable setpoints and relay outputs.
     • Fault logging with timestamped events (up to 200 records) .
3. System Integration:
   • Protocol Flexibility:
     • Integrates with PLCs and HMIs via industry-standard protocols.
     • Optional IEC 61131-3 PLC functionality for custom control logic .
   • Redundancy:
     • Dual power supplies and communication paths ensure fault tolerance.
4. User Interface:
   • Local HMI: Optional front-panel display for real-time status monitoring.
   • Remote Access: Web-based interface accessible via Ethernet for configuration and diagnostics .

Application Scenarios

1. Power Generation:
   • Steam/gas turbines, generators, and pumps in thermal/nuclear plants.
   • Example: Monitoring turbine shaft vibration and bearing temperature to prevent catastrophic failures .
2. Oil & Gas:
   • Compressors, centrifuges, and pipeline pumps in refineries and offshore platforms.
   • Example: Detecting impeller imbalance in a centrifugal compressor via 3500/42M modules .
3. Manufacturing:
   • Motors, gearboxes, and conveyor systems in automotive/chemical plants.
   • Example: Monitoring gear mesh frequency in a paper mill’s drive train for early wear detection .
4. Marine:
   • Shipboard engines, propeller shafts, and HVAC systems.
   • Example: Ensuring safe operation of a vessel’s main propulsion turbine through real-time speed and vibration analysis .

Functional Architecture

• Hardware:
  • Backplane: High-speed data bus supporting 10 Mbps communication between modules.
  • Power Management: Redundant power supplies with surge protection .
• Software:
  • 3500/92 Gateway: Converts proprietary data to industry-standard protocols.
  • Bently Navigator Software: Configures modules, analyzes data, and generates reports.

Safety & Compliance

• Certifications: CE, UL, and IEC 61000-6-2/6-4 for EMC immunity .
• Cybersecurity:
  • Role-based access control (RBAC) and encrypted firmware updates.
  • Compliance with NERC CIP standards for critical infrastructure protection .

Typical Configuration Example

• System Setup:
  • A 3500/05 full-size rack with:
    • Two 3500/15 power supplies (N+1 redundancy).
    • Four 3500/42M vibration monitoring modules (8 channels total).
    • One 3500/53 speed/over-speed module.
    • One 3500/92 Ethernet gateway.
• Functions Enabled:
  • Real-time vibration analysis (RMS/peak velocity) of a gas turbine’s bearings.
  • Speed monitoring with 2-out-of-3 voting for over-speed protection.
  • Data transmission to a DCS via Modbus TCP for process integration.
