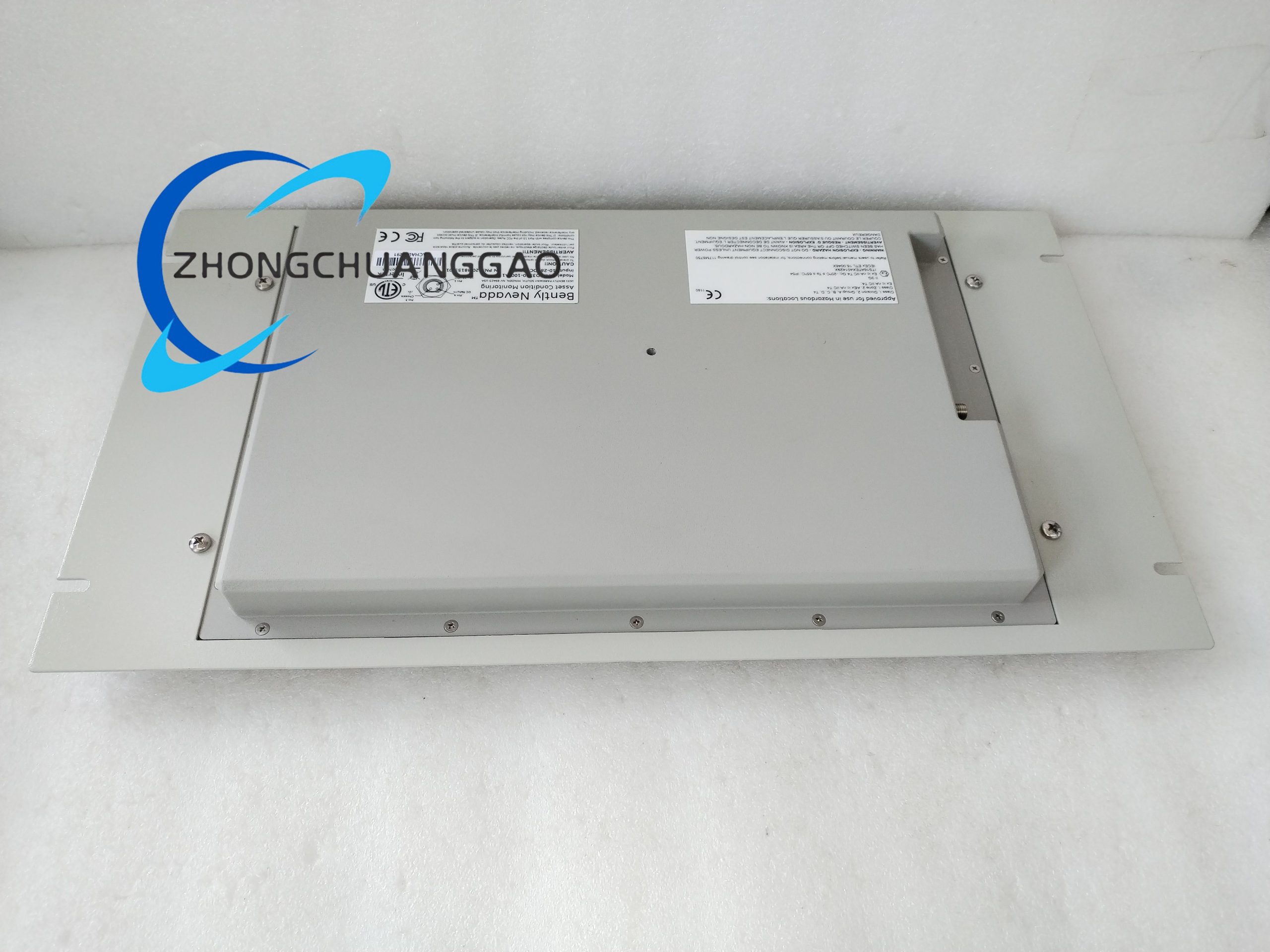

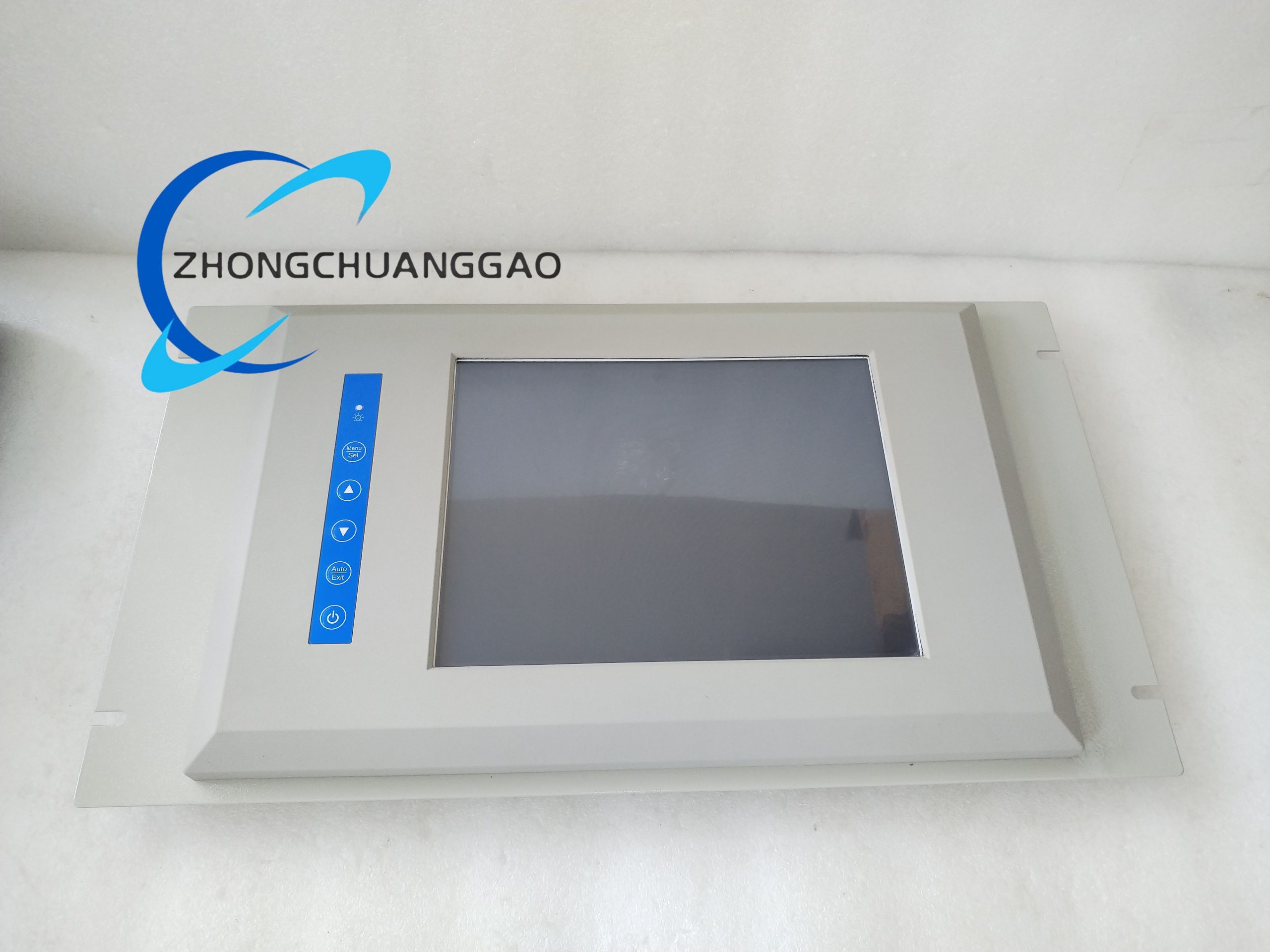

Bently Nevada 3500/94M VGA Display Monitor Module

• Communication Ports: RS232 port for touch controller data transmission, high-speed network interface for data and status monitoring
• Front Panel Ports: 24VDC power output, VGA signal output, and touch command input ports
• Extended Cabling: Up to 6 meters with standard cables; extendable to 10 kilometers using a supported keyboard video monitor extender
• Compliance Certifications: Complies with ROHS 2011/65/EU directive, EMC standards including EN 61000 – 6 – 2 and EN 61000 – 6 – 4

Function Features

• Customizable Multi-screen Display: Up to nine unique screens can be configured via 3500 rack configuration software. Default screens include bar graphs for filtered vibration readings and proximity transducer gap values, and custom screens can group system data into machine train categories or multiple pages for targeted viewing.
• Centralized Multi-rack Data Viewing: With an optional display router box, the module can display data from up to four separate 3500 racks. The upper right corner of the display constantly shows alarm and normal statuses, and the rack selection button changes color when a connected rack malfunctions.
• Interactive Touch Screen Operation: It adopts touch screen technology, enabling operators to interact with real-time data intuitively. This eliminates the need for complex external input devices and allows for quick switching between data interfaces, checking alarm details, and adjusting display settings directly on the screen.
• Stable and Reliable Long-term Operation: It has a rugged sealed structure that resists mechanical vibration up to 2.0 grms within the 10 – 500 Hz range. Its low power consumption design and industrial-grade component selection ensure continuous and stable operation for long hours in harsh industrial environments.
• Seamless System Compatibility: It integrates perfectly with the entire 3500 series platform, protecting users’ existing equipment investments. It supports connection with upper-level control systems and can work in coordination with other modules of the 3500 series without requiring complex system overhauls during integration.

Application Scenarios

• Oil and Gas Industry: It is deployed in oil refineries and natural gas processing plants to monitor turbines, compressors, and pipeline pumps. Certified for hazardous areas, it displays parameters such as equipment vibration and bearing temperature in real time, avoiding safety accidents like medium leakage caused by equipment failures.
• Power Generation Industry: It is used in thermal and hydropower plants to monitor rotating machinery such as generators and steam turbines. Clear visualization of parameters like rotation speed and vibration helps technicians detect abnormal equipment conditions early and arrange maintenance during planned outages.
• Chemical Processing Industry: It monitors distillation columns and reaction kettle supporting equipment in chemical plants. It maintains stable performance under high-temperature and high-humidity conditions, providing continuous data support for the stable operation of production processes and reducing production interruptions.
• Automotive Manufacturing Industry: It is integrated into robotic welding cells and assembly line motor control panels. It withstands continuous vibration in the production environment and displays the operating status of machining tools and robots, ensuring the stability of precision manufacturing processes.
• Heavy Manufacturing Industry: It is applied to monitor crushers, grinding machines, and other equipment in metallurgical and mining sites. It resists dust and large temperature fluctuations, continuously monitors the operating parameters of key machinery, and guarantees the continuity and safety of mining and smelting operations.
