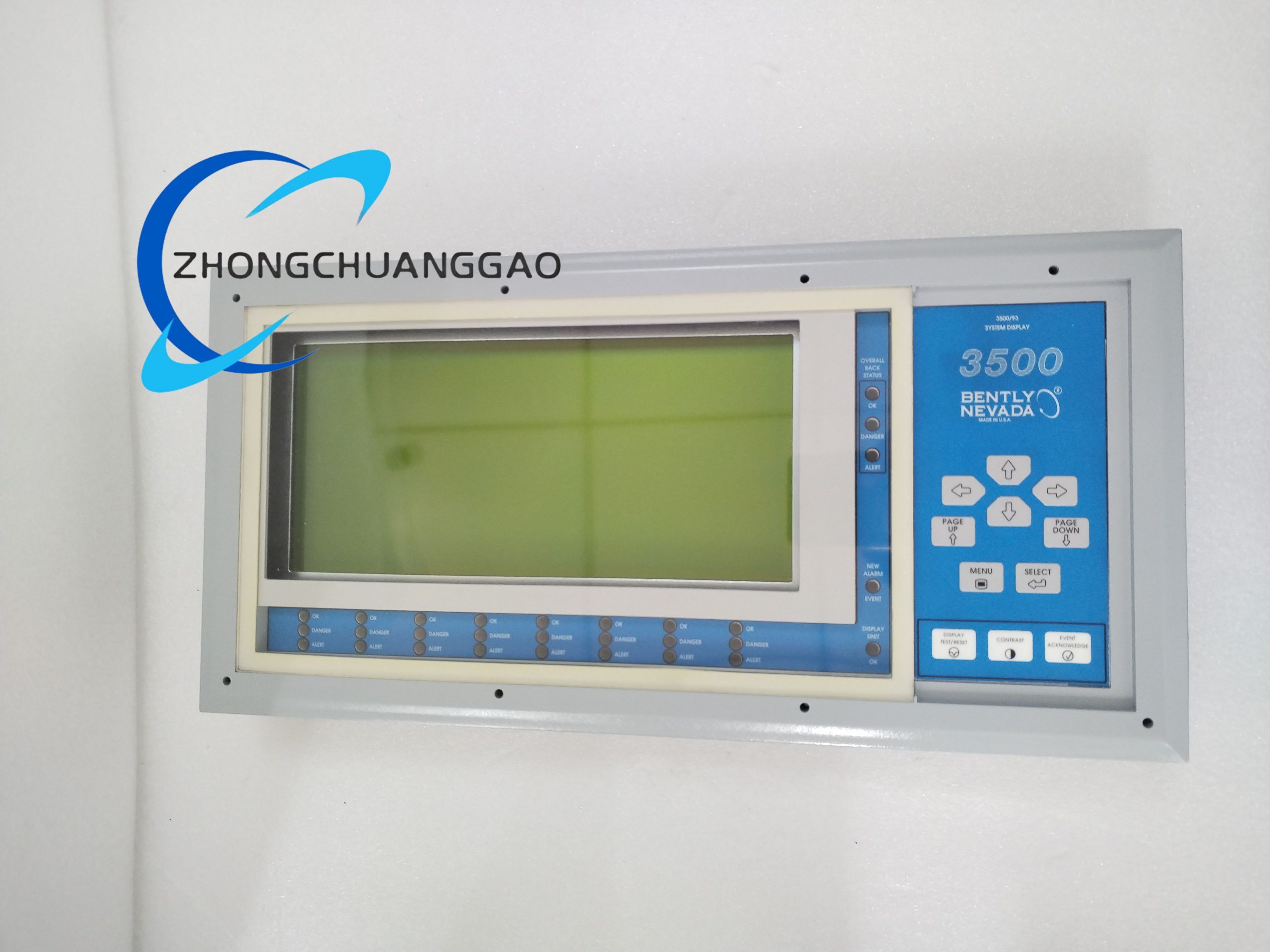

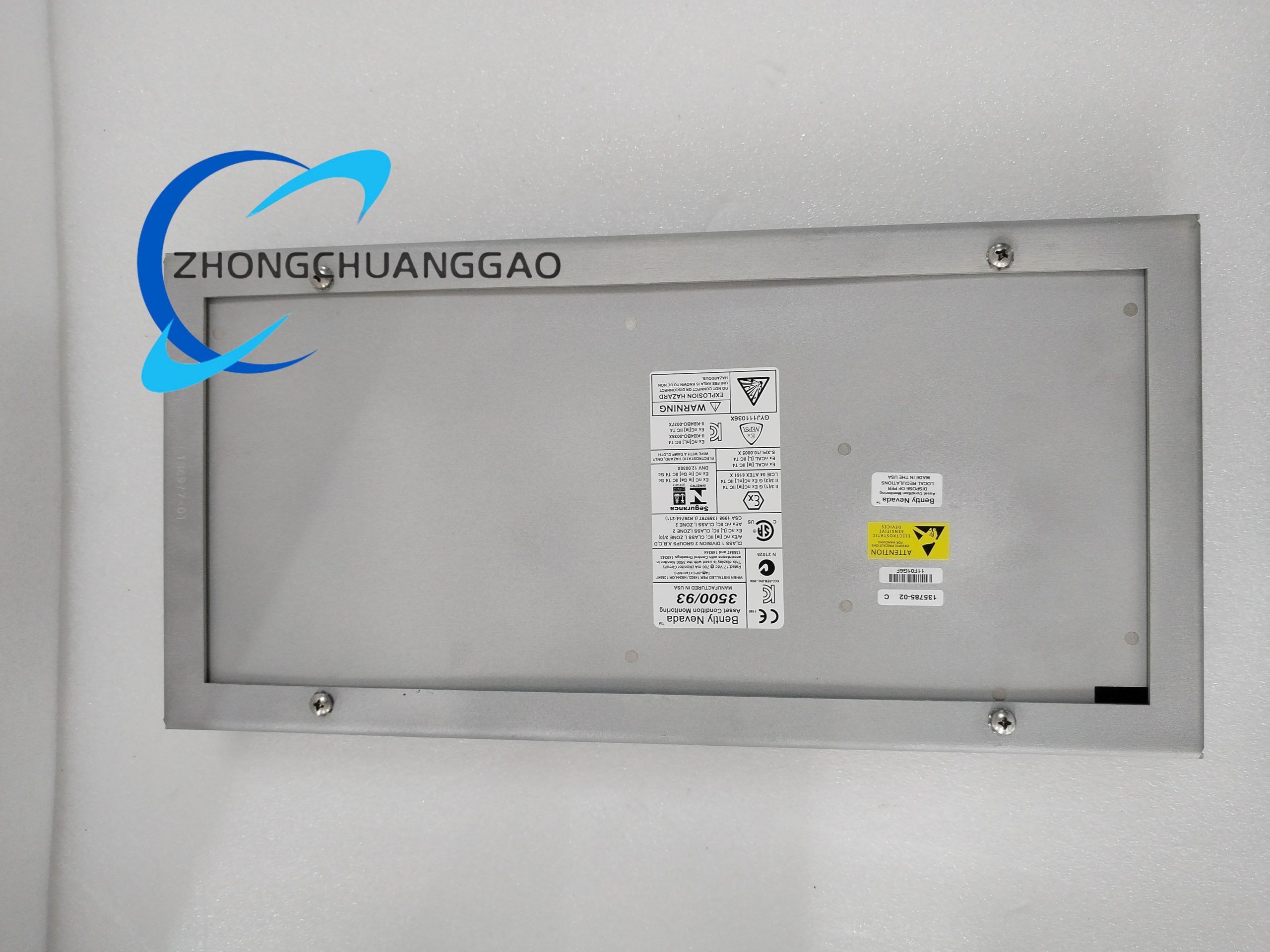

Bently Nevada 3500/93 System Display Interface I/O Module

• Communication Protocols: Supports Modbus RTU, CAN Open, DeviceNet, Modbus and OPC protocols
• Communication Interfaces: Equipped with Ethernet; some versions add Wi – Fi and Bluetooth connectivity
• Storage Capacity: High – end versions have 8GB RAM and 64GB SSD, and the storage capacity can reach 32GB at minimum
• Operating Temperature Range: -40°C to 70°C
• Storage Temperature Range: -20°C to 70°C
• Environmental Protection Rating: IP65 rated for effective dust and water resistance
• Operating Humidity: 0% to 95% relative humidity, non – condensing

Function Features

• High – precision Data Acquisition and Analysis: It can accurately collect vibration signals of rotating machinery within the frequency range of 0 to 10,000Hz. It performs spectrum analysis on the collected signals and provides in – depth fault diagnosis and trend analysis functions, which can identify potential equipment faults such as mechanical wear and imbalance at an early stage.
• Intuitive Data Visualization: It is equipped with a high – resolution LCD display that clearly shows system status, equipment operating metrics and alarm information. The user – friendly menu and graphic interface allow operators to quickly understand the health status of machinery without complex professional training.
• Multi – protocol and Multi – interface Compatibility: It supports a variety of communication protocols including Modbus RTU, CAN Open and DeviceNet, and is also compatible with Ethernet communication. This compatibility enables seamless integration with different types of industrial automation systems and software, eliminating communication barriers between devices.
• Strong Environmental Adaptability: With an IP65 protection rating, it can resist dust and water intrusion. It can work normally in the temperature range of -40°C to 70°C, which fully meets the harsh working environment requirements of industries such as petroleum and chemical engineering.
• Easy Installation and Maintenance: It adopts a modular and 19 – inch rack – mountable design, which simplifies the on – site installation process. The configuration information can be quickly modified and updated through the upper – level system. Its simple structure also reduces the difficulty of daily maintenance and shortens the downtime during maintenance.

Application Scenarios

• Power Industry: It is widely used in thermal, hydropower and nuclear power plants to monitor the operating status of key equipment such as steam turbines, generators and boiler feed pumps. It detects abnormal vibration and speed fluctuations in a timely manner to prevent major equipment failures that may lead to power outages.
• Petrochemical Industry: It is installed in oil refineries, natural gas processing plants and long – distance pipelines. It monitors compressors, pipeline pumps and reaction kettles. It ensures the safe and stable operation of equipment in high – pressure and high – temperature environments and avoids accidents such as media leakage.
• Aerospace Field: It is applied to the testing and monitoring of aircraft engines and auxiliary rotating machinery. It collects and analyzes vibration and speed data during the operation of the engines to ensure the reliability and safety of the engines during flight and provide data support for ground maintenance.
• Metallurgical and Mining Industry: In steel mills and mines, it is used to monitor blast furnace blowers, rolling mill motors, crushers and conveyor equipment. It helps technical personnel find equipment faults in advance and reduces production losses caused by sudden equipment shutdowns.
• General Manufacturing Industry: It is deployed in the production lines of automobile manufacturing, household appliance production and other fields. It monitors precision machining tools, transmission gears and motor equipment. It ensures the stability of the production process and improves the qualification rate of products by maintaining the normal operation of the equipment.
