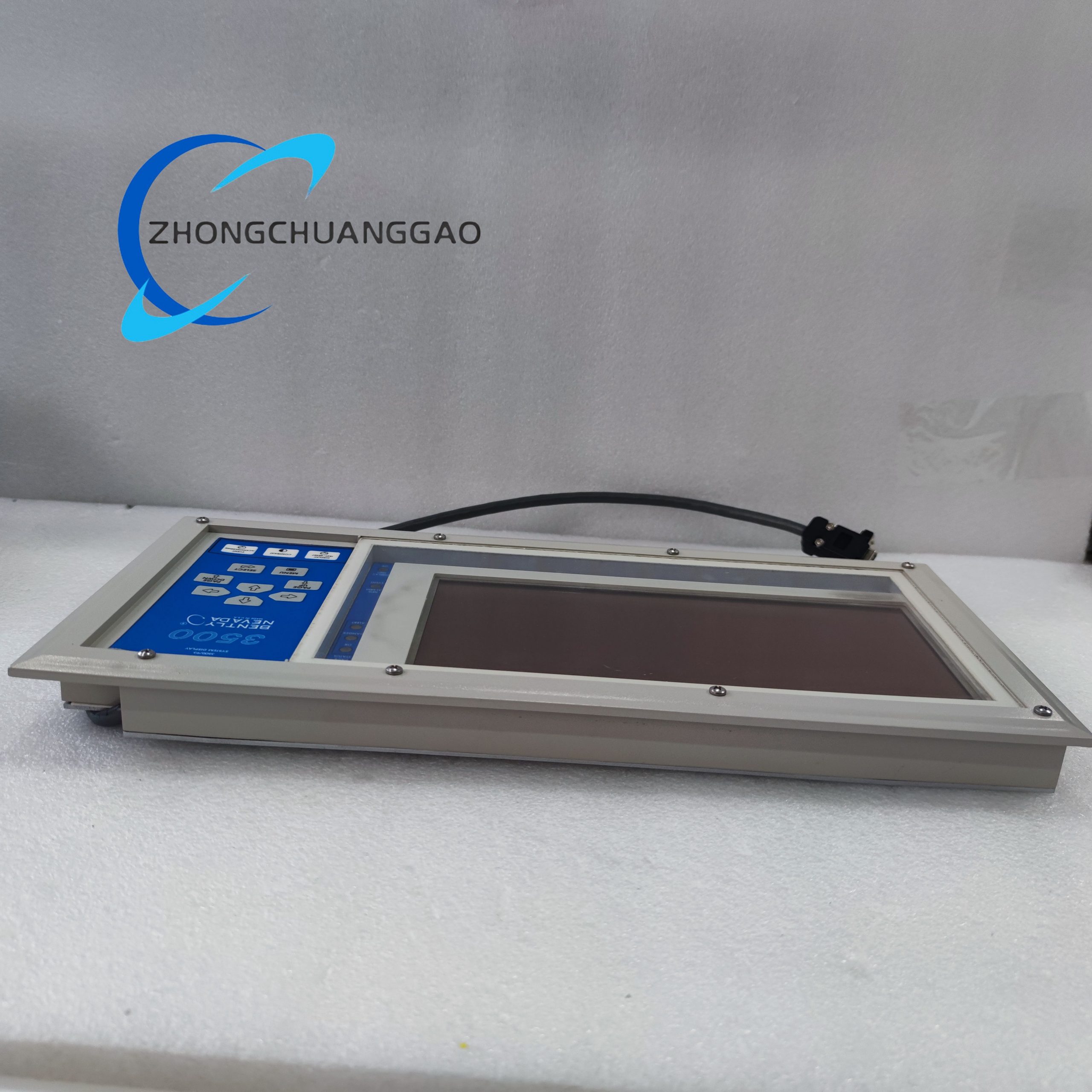

Bently Nevada 3500/93 135785-01 System Display Screen Monitor with Integrated

• Communication Interfaces: Ethernet, RS232, RS422 and RS485
• Supported Protocols: Modbus, Modbus/TCP, Ethernet/IP, Profinet and Bently Nevada proprietary protocol
• Operating Temperature Range: -10°C to 50°C
• Storage Temperature Range: -30°C to 70°C
• Operating Humidity: 10% to 90% relative humidity, non-condensing
• Protection Rating: IP65
• Certifications: Complies with CE, FCC and RoHS standards

Function Features

• Comprehensive Multi – channel Data Acquisition: It is equipped with four sensor inputs and four temperature inputs that cover common industrial sensors. It can comprehensively collect key operating parameters of machinery, and match with corresponding outputs to transmit processed data to recorders or other control components, meeting the full – cycle data monitoring needs of equipment.
• Clear Data Visualization and Intuitive Operation: The high – definition TFT LCD screen presents equipment operating data, channel status and alarm information clearly. The customizable interface and intuitive operation logic allow operators to quickly grasp equipment conditions. It also supports an optional remote display/keyboard installation up to 75 meters away for on – site parameter adjustment.
• Flexible and Diversified Communication Integration: It integrates Ethernet and multiple serial communication interfaces, and is compatible with a variety of mainstream industrial protocols. It can directly transmit static variables, event lists and time – date information to Modbus clients, realizing seamless integration with DCS, SCADA and PLC systems, which eliminates communication barriers between different devices.
• Convenient Configuration and Stable Data Storage: Users can create configuration files on a computer and download them to the module via Ethernet. The configuration information is permanently stored in non – volatile memory and can be uploaded to a computer for modification at any time. It also has a 200 – entry event list to record equipment operating events for later review and analysis.
• Reliable Network Redundancy and Data Security: It has network redundancy function, which maintains continuous and complete data transmission when some network components fail. It also provides encrypted communication options to prevent data tampering or theft during transmission, ensuring the security and stability of data in industrial control networks.

Application Scenarios

• Power Industry: It is used to monitor steam turbines, generators and boiler feed pumps in thermal, hydropower and nuclear power plants. It collects vibration and temperature data of equipment and transmits it to the centralized control system, enabling early detection of abnormal equipment conditions and avoiding unplanned power outages.
• Petrochemical Industry: It is deployed in oil refineries and natural gas processing plants to monitor the operating status of compressors, pipeline pumps and reaction kettles. It sends real – time data to the SCADA system, ensuring the safe operation of equipment under high – pressure and high – temperature conditions and reducing the risk of media leakage accidents.
• Metallurgical Industry: It is applied to monitor blast furnace blowers, rolling mill motors and conveyor systems in steel mills. It continuously collects and displays key data such as motor vibration and bearing temperature, helping technicians adjust production processes in a timely manner and reducing production losses caused by equipment failures.
• General Manufacturing Industry: It is installed on production lines for automobile parts and household appliances to monitor precision machining tools and assembly line motors. It provides data support for predictive maintenance of equipment through stable data collection and transmission, improving the stability of the production process and product qualification rates.
• Mining Industry: It is used to monitor mining machinery such as crushers, mine pumps and conveyors in mining sites. It transmits the collected equipment operating data to the ground control center through multi – protocol communication, realizing remote monitoring of underground equipment and ensuring the safety of mining operations.
