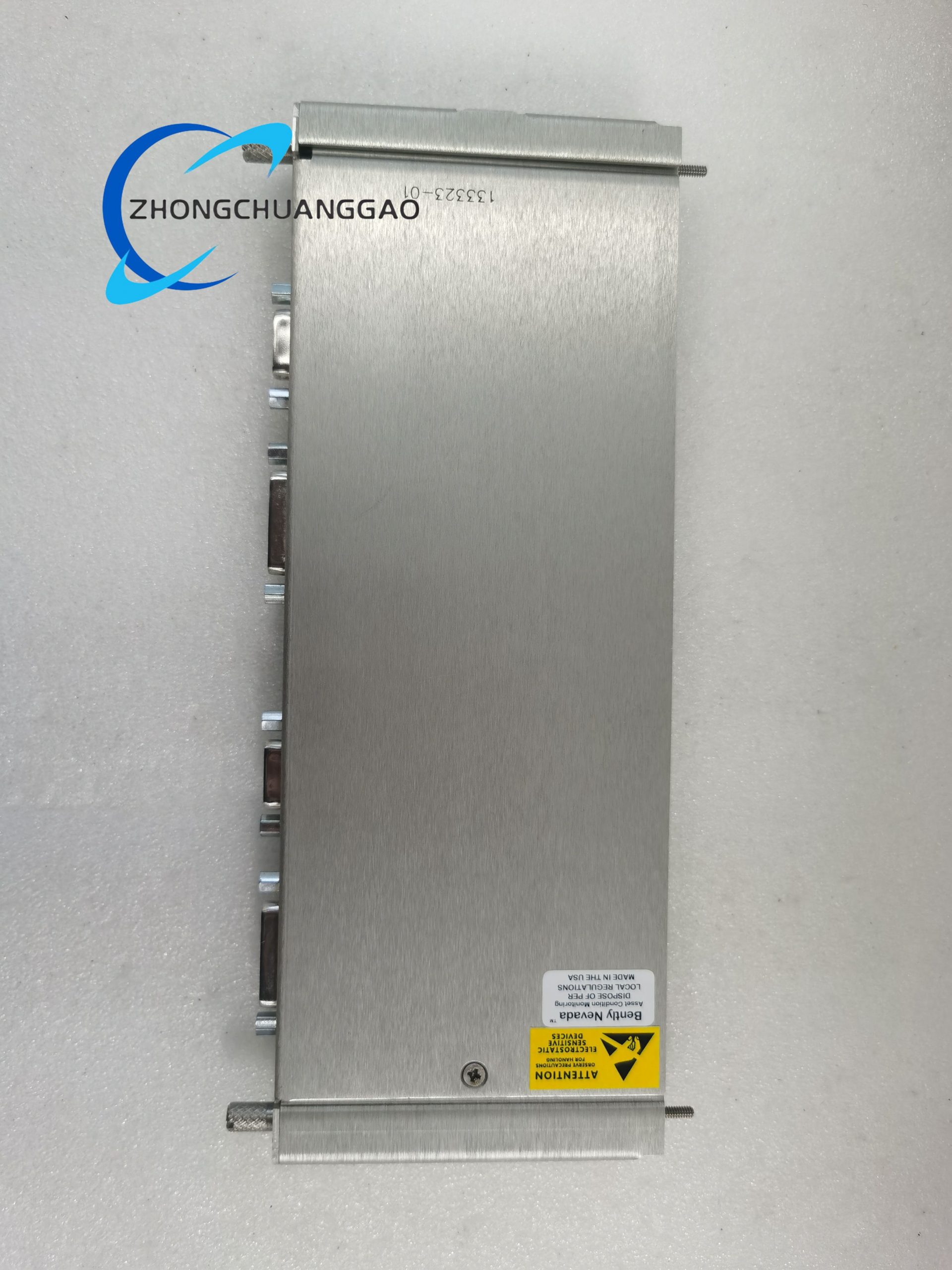

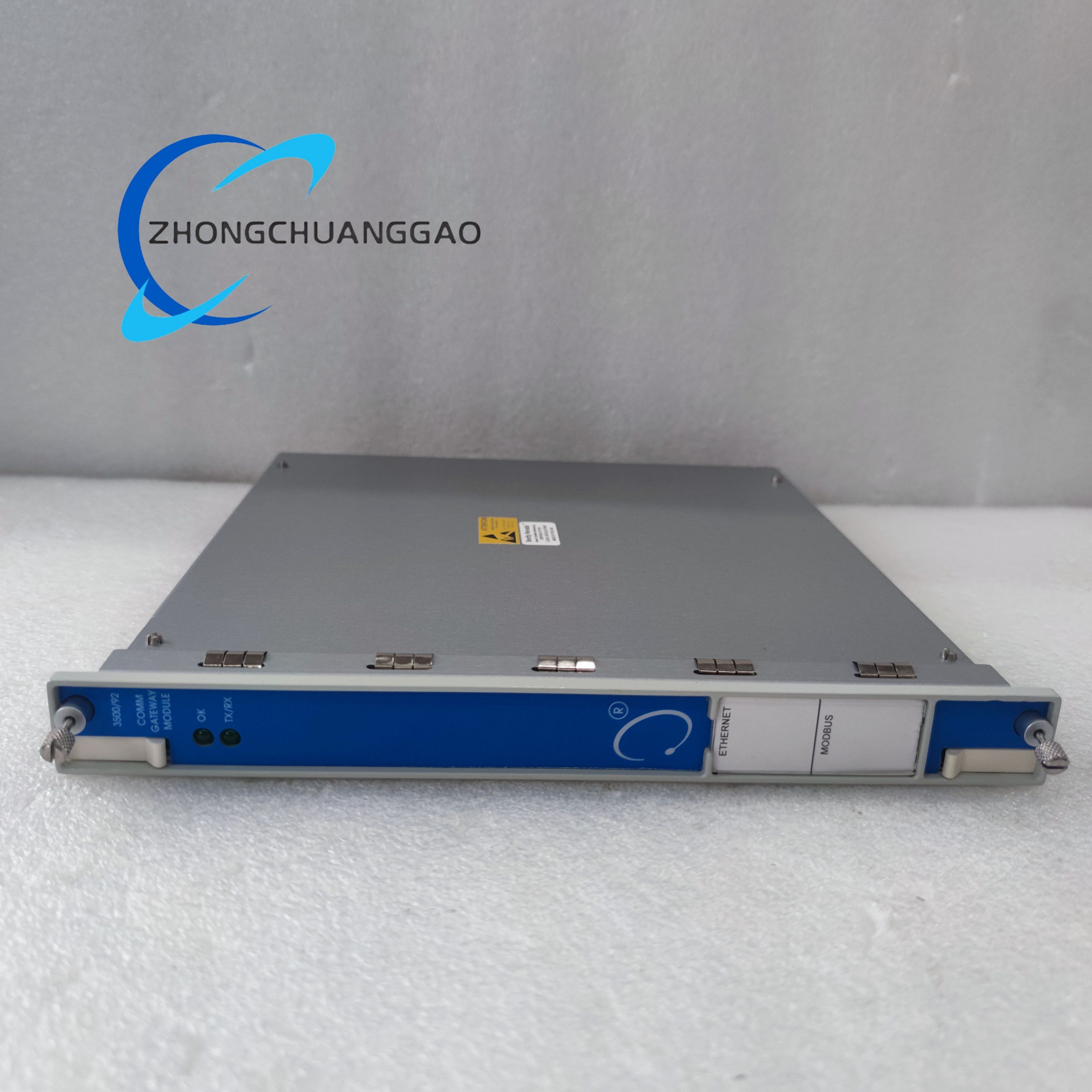

Bently Nevada 3500/92 Communication Gateway Module

Function Features

• Multi-protocol and Multi-interface Support: It comes with multiple communication interfaces and supports a variety of mainstream industrial protocols. This design allows it to establish stable connections with different types of external control and automation systems, breaking down data communication barriers between devices of different standards.
• Comprehensive Data Aggregation and Transmission: It can collect all monitoring values and status information from the 3500 series rack, including vibration, shaft displacement and speed of rotating machinery. It transmits the integrated data to external systems at an efficient rate, and the data acquisition rate for all modules in the rack does not exceed 1 second.
• Remote Configuration and Monitoring: It permits Ethernet communication with 3500 rack configuration software. Users can perform remote configuration and monitoring of the 3500 monitoring system without on-site operations, which greatly improves the efficiency of system debugging and daily maintenance.
• Customizable Modbus Registers: It is equipped with configurable Modbus register functionality. Users can customize Modbus register mapping according to specific application requirements, which enhances the module’s adaptability to different industrial application scenarios.
• Module Status Self-monitoring: It has the function of monitoring its own operating status. It can promptly feed back abnormal conditions during operation to the upper – level system, realizing active maintenance of the module itself and avoiding communication interruptions caused by module failures.

Application Scenarios

• Power Industry: It is widely used in thermal power plants, hydropower plants and nuclear power plants. It connects the 3500 monitoring system of key equipment such as steam turbines, generators and water turbines. It transmits real-time data such as equipment vibration and speed to the central control system to ensure the continuous and stable operation of power generation equipment.
• Oil and Gas Industry: It is applied to upstream oil extraction, midstream pipeline transportation and downstream refining links. It is used to monitor pumps, compressors and other equipment. It sends real-time operating data to the remote control center to prevent safety accidents such as equipment leakage and damage from affecting the normal progress of the oil and gas production chain.
• Chemical Industry: It is installed in chemical plants to match the 3500 monitoring system of reaction kettles, heat exchangers and various pumps. It transmits key process parameters such as temperature and pressure during production to the safety control system, and cooperates to trigger early warnings when parameters are abnormal to avoid dangerous chemical leakage accidents.
• Metallurgical Industry: It operates in steel and non-ferrous metal smelters. It connects the monitoring devices of blast furnace blowers, rolling mill motors and water pumps. It aggregates and transmits the operating status data of these equipment to the production scheduling system, which helps optimize the smelting process and extend the service life of the equipment.
• General Manufacturing Industry: It is integrated into the automation production lines of industries such as papermaking, cement and food and beverage. It connects the 3500 monitoring system with the production line control system. It monitors the operating status of conveyors, machine tools and other equipment to ensure the stable operation of the production line and reduce production losses caused by equipment failures.
