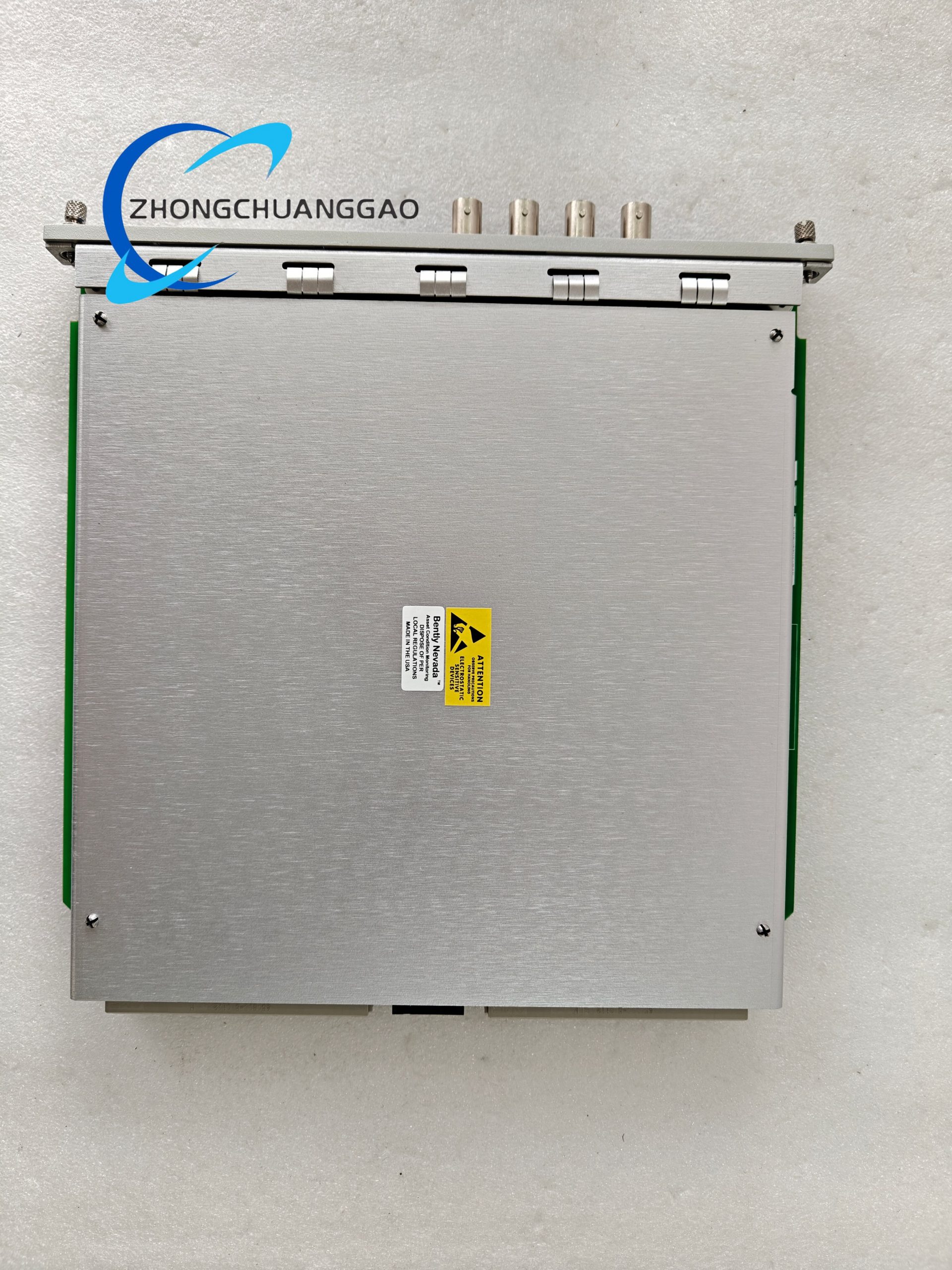

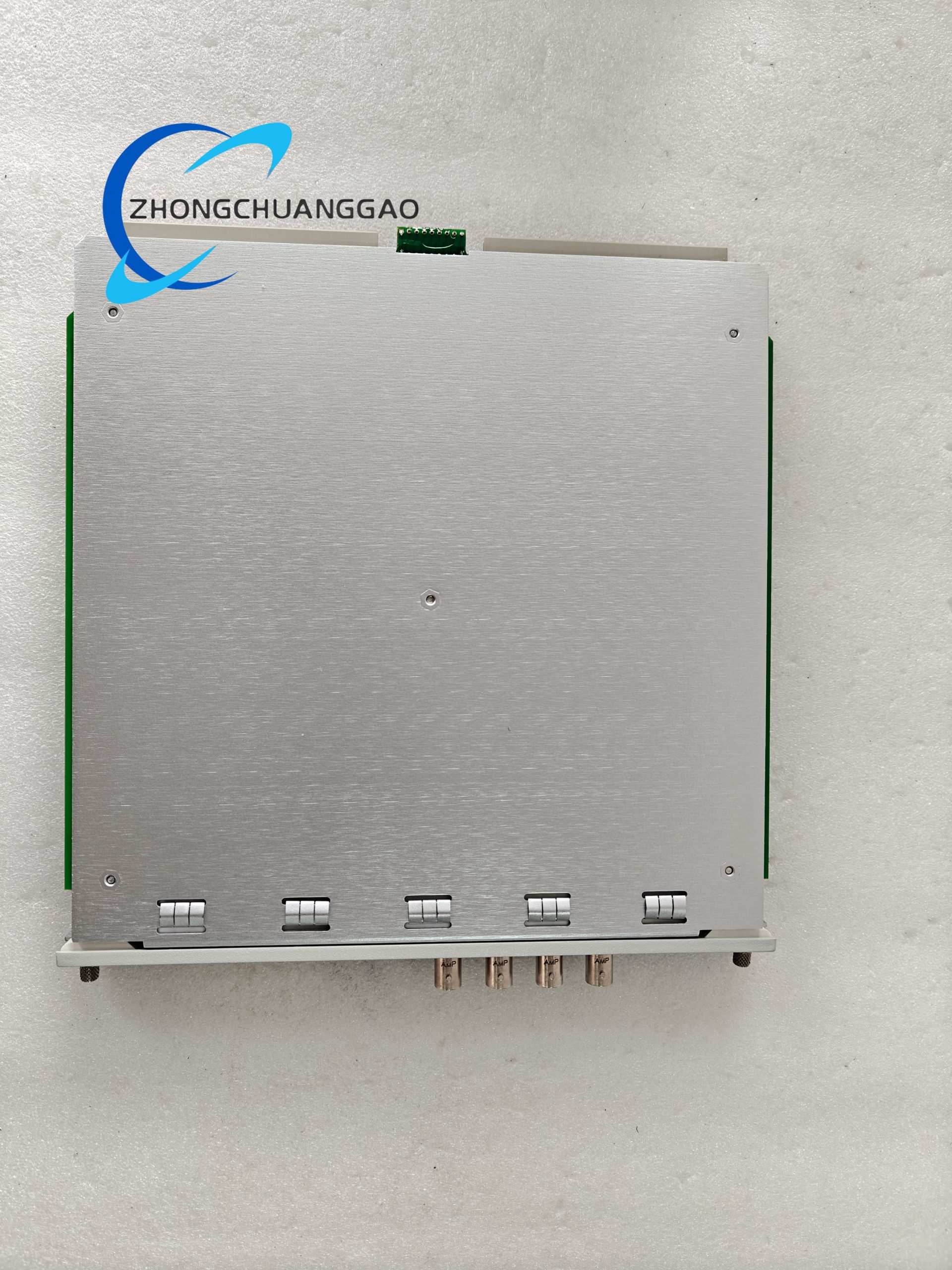

Bently Nevada 3500/64M 176449-05 Four-Channel Dynamic Pressure Monitoring Module

Function Features

• Multi-channel Isolated Measurement: It is equipped with four isolated channels that can independently collect and process dynamic pressure signals. This isolation design prevents signal interference between channels and ensures the accuracy of measurements even when multiple pressure points are monitored simultaneously.
• Precise Filtering Capabilities: It adopts advanced bandpass filtering and notch filtering technologies. These technologies can isolate pressure fluctuations within specific frequency ranges, which is critical for identifying problems such as pump cavitation and turbine aerodynamic instability through narrowband pressure spikes.
• Configurable Alarm Mechanisms: Users can set alert and danger setpoints for each measured variable based on equipment operating requirements. When the dynamic pressure exceeds the set thresholds, the module promptly triggers alarms to avoid catastrophic equipment failures.
• Seamless System Integration: It communicates with other modules in the 3500 series like communication gateways and power supply modules via the chassis backplane. It can also provide Keyphasor signals to coordinate with vibration and temperature monitoring modules, achieving comprehensive machinery health monitoring.
• Rugged Environmental Adaptability: Its IP67 rating effectively prevents dust and water ingress. It can resist vibration and electromagnetic interference, and its wide operating temperature range enables stable operation in extreme climate conditions and harsh industrial environments such as offshore platforms and petrochemical plants.
• Recorder Output Function: It is furnished with recorder outputs that can transmit real-time dynamic pressure data to external control systems. This facilitates continuous data recording and post-event analysis, laying a foundation for equipment performance optimization and maintenance plan formulation.

Application Scenarios

• Oil and Gas Industry: It is installed on offshore drilling rigs, oil pipeline compressors, and natural gas processing equipment. It monitors the dynamic pressure of pipelines and processing equipment in flammable and explosive environments. Its certified design for hazardous areas ensures safe and stable operation during oil and gas extraction, transportation, and processing.
• Power Generation Industry: It is applied to steam turbines, gas turbines, and water pumps in thermal power plants and hydropower stations. It monitors the dynamic pressure of steam pipelines and hydraulic systems. It detects abnormal pressure changes promptly to avoid equipment damage caused by pressure instability and ensures the continuous and stable operation of power generation equipment.
• Chemical Industry: It is integrated into the monitoring systems of chemical reactors, fluid transport pumps, and pressure vessels. It monitors the dynamic pressure during chemical reactions and material transportation. It complies with the safety requirements of chemical plants and prevents safety accidents such as material leakage and equipment explosion due to pressure abnormalities.
• Aerospace Industry: It is used for dynamic pressure monitoring of aero-engine test benches and ground gas transmission systems. It accurately captures pressure fluctuations during engine operation and test processes, providing precise data support for engine performance debugging and fault diagnosis.
• Marine Industry: It is deployed on marine diesel engines, marine pumps, and ship pipeline systems. It resists high humidity and salt spray corrosion under the marine environment. It monitors the dynamic pressure of the ship’s power system and ensures the reliability of the ship’s power equipment during navigation.
