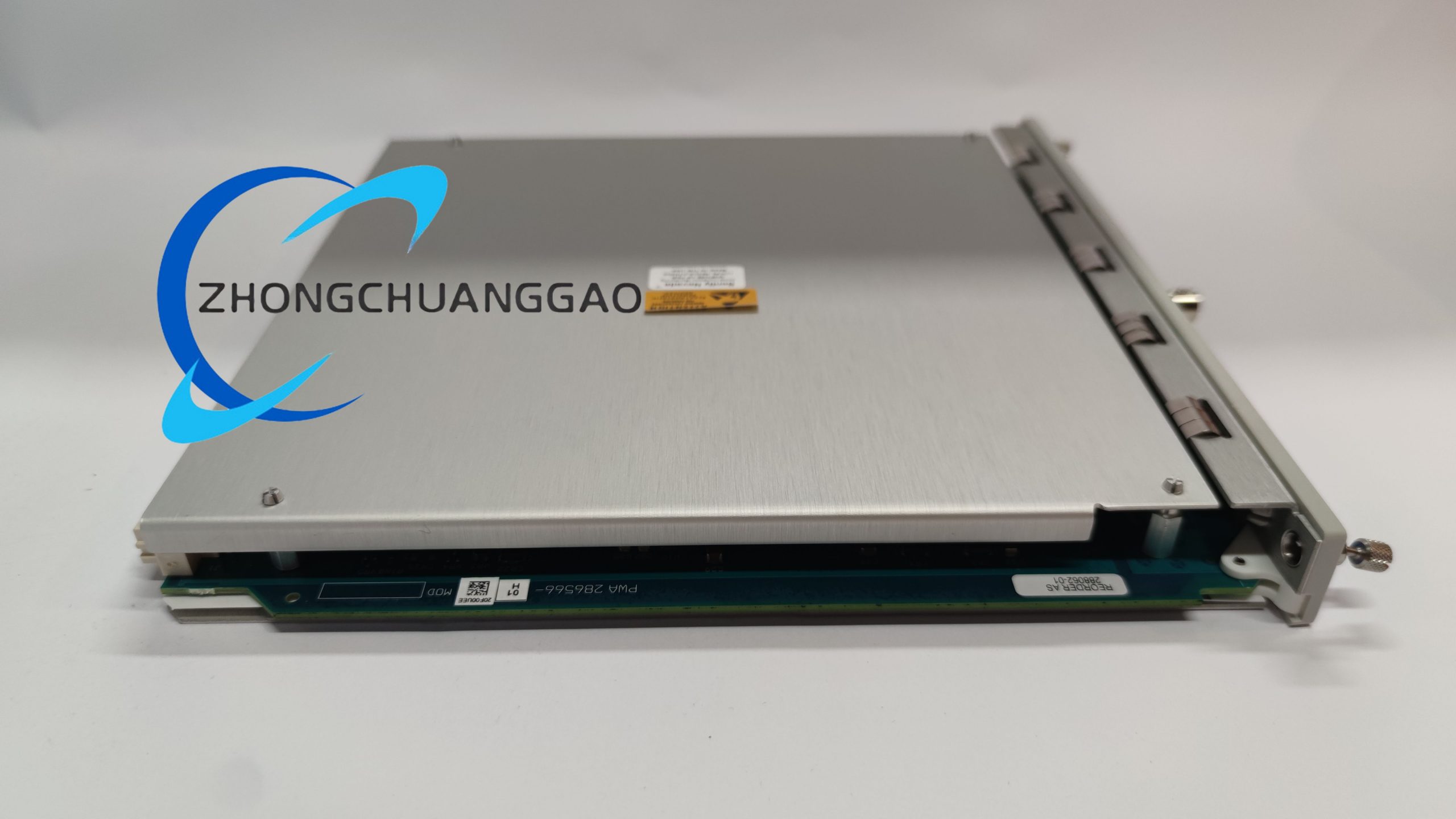

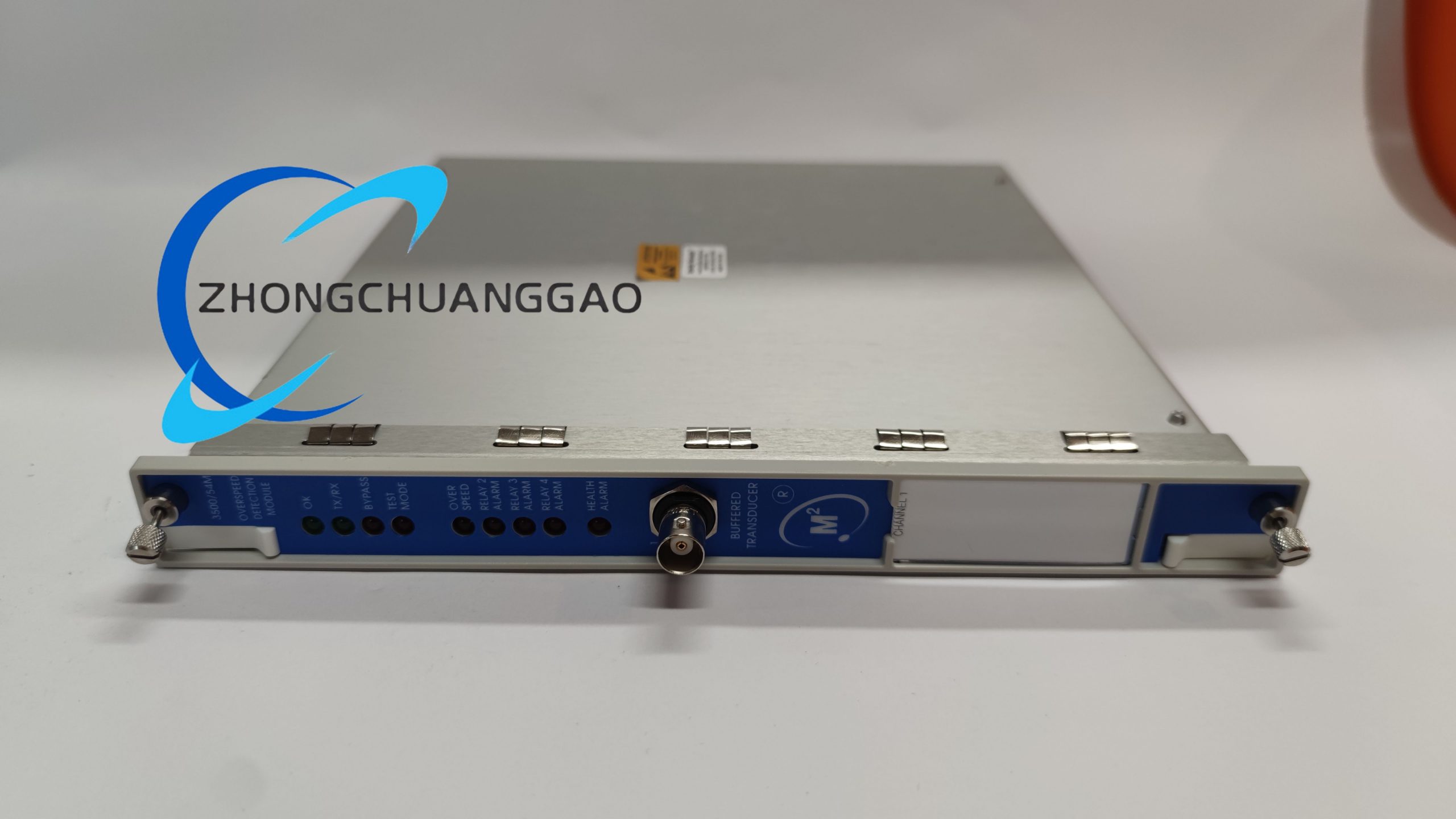

Bently Nevada 3500/54-03-00 Transient Data Interface Module

Function Features

• Dual – mode Configuration Connection: It is equipped with USB and Ethernet interfaces. The USB interface facilitates on – site rapid modification of system configurations, while the Ethernet interface realizes long – term stable connection between the rack and the industrial network, covering both local and remote operation needs.
• Comprehensive Status Indication: The four front – panel indicator lights clearly convey different working states. The OK light confirms normal operation of the module and its I/O components; the TX/RX light flashes during data transmission with other rack modules; the TM light indicates the rack’s trip multiply mode; and the Config OK light reflects configuration status and error conditions.
• Dual Security Configuration Protection: It is equipped with a keylock switch and software password protection. This dual security mechanism prevents unauthorized personnel from arbitrarily modifying the system configuration and ensures the security and stability of the monitoring system’s operating parameters.
• Redundant Power Supply Adaptation: It can work with the rack’s dual redundant power supplies. When the primary power supply fails, the backup power supply can immediately take over the power supply task independently, which guarantees the module and the entire rack system will not stop working due to power failures.
• Remote Function Activation: Its matching I/O module provides rear – panel connection ports. These ports support remote activation of various system functions and are equipped with a rack OK relay for general alarm notifications, enhancing the convenience of system operation and management.

Application Scenarios

• Power Generation Industry: It is widely used in the 3500 monitoring systems of steam turbines, generators, and water pumps in thermal and hydropower plants. It transmits vibration, displacement, and speed data in real time to the diagnostic system, which helps avoid major equipment failures and ensures the continuous and stable operation of the power grid.
• Oil and Gas Industry: It is applied to the monitoring systems of compressors, pipeline pumps, and turboexpanders in oil fields and natural gas processing plants. It adapts to the harsh on – site environments such as high pressure and corrosion, and provides reliable data support for the fault prevention and maintenance of key transmission equipment.
• Metallurgical Industry: It is integrated into the 3500 system of blast furnaces, rolling mills, and fan equipment in steel plants. It monitors the operating status of large – scale rotating machinery under high – load conditions in real time and sends early warnings of faults such as shaft misalignment and bearing wear.
• Paper and Pulp Industry: It is used in the monitoring systems of paper machine main motors and pulp pumps. It continuously collects equipment operation data, ensures the stable operation of the production line, and prevents production interruptions caused by mechanical failures.
• Marine and Offshore Industry: It is installed in the 3500 protection systems of marine propulsion equipment and offshore platform compressors. It meets the strict requirements of marine certification standards and provides reliable data interface services for the safe operation of offshore machinery in salt – fog and high – humidity environments.
