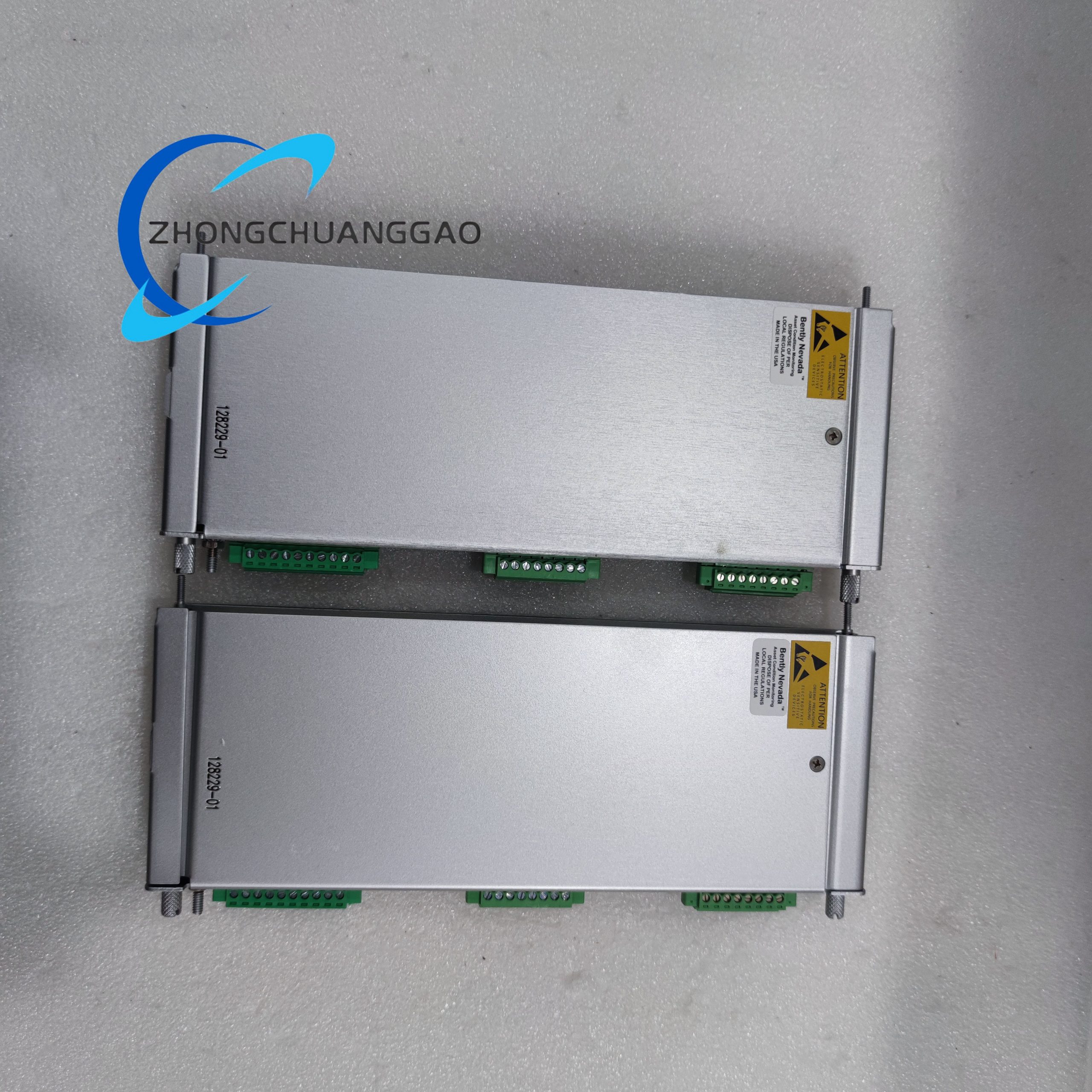

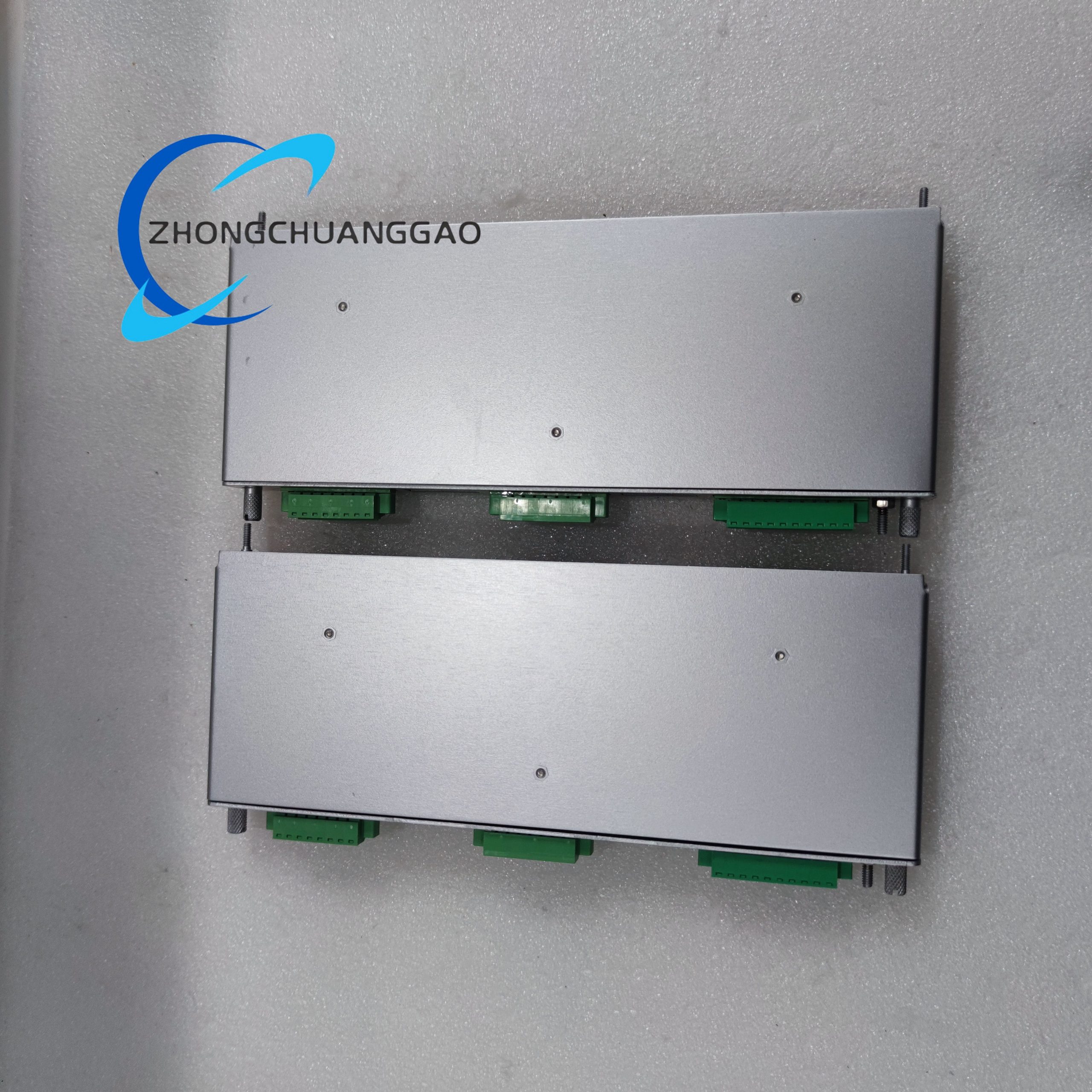

Bently Nevada 3500/42M 128229-01 4-Channel Proximitor/Seismic I/O Module

Technical Specifications

Manufacturer: Bently Nevada (previously part of GE, now part of ABB)
Product Type: 4-channel proximitor/seismic I/O module
Power Supply: 24 VDC
Number of Input Channels: 4 independent channels to support multi-point machinery health monitoring
Sensor Compatibility: Proximity sensors for vibration and position detection, seismic transducers, eddy current displacement sensors, velocity sensors and accelerometers
Measurement Sensitivity: Radial vibration, shaft displacement and eccentricity reach 3.94 mV/μm or 7.87 mV/μm; differential expansion is 0.394 mV/μm or 0.787 mV/μm; REBAM® is 40 mV/μm or 80 mV/μm; dual acceleration is 10 mV/(m/s²); dual speed has multiple specifications including 20 mV/(mm/s) pk
Output Signals: 1 channel of 4 – 20 mA proportional analog output for each channel to realize analog data transmission
Operating Temperature: 0 °C to 60 °C
Operating Humidity: 5% to 95% non-condensing
Dimensions: Mainboard is 241.3 mm × 24.4 mm × 241.8 mm; I/O module without safety barrier is 241.3 mm × 24.4 mm × 99.1 mm; I/O module with safety barrier is 241.3 mm × 24.4 mm × 163.1 mm
Weight: Mainboard weighs 0.91 kg; I/O module without safety barrier weighs 0.20 kg; I/O module with safety barrier weighs 0.46 kg
Mounting Method: Dedicated to Bently 3500 series racks, suitable for standard industrial control cabinets
Installation Feature: Hot-swappable, enabling module replacement without shutting down the 3500 framework
Compliance Standard: Complies with API 670 standard for global rotating machinery protection requirements
Communication Mode: Integrates with the Bently 3500 system through the backplane to achieve smooth digital and analog data transmission

Category: Bentley

Description

Function Features

Dual Sensor Compatibility: It can process both proximity sensor signals related to vibration and position and seismic sensor signals such as acceleration and velocity. This dual compatibility eliminates the need for multiple single-function modules, reducing system complexity and cutting installation costs significantly.
Comprehensive Measurement Capabilities: Each channel can be programmed via 3500 framework configuration software. It can measure multiple key parameters including radial vibration, thrust position, eccentricity, differential expansion, velocity and acceleration, covering all core health indicators of rotating machinery.
Reliable Alarm Mechanism: Users can program alarm thresholds based on specific equipment operating conditions. The module continuously compares real-time measurement data with preset thresholds and triggers alarms promptly when abnormalities occur, providing a solid guarantee for timely equipment protection.
Stable Signal Processing: It is equipped with built-in signal conditioning functions such as filtering and amplification. These functions effectively reduce electrical interference and noise in industrial environments, improving the accuracy and stability of signal transmission and ensuring the reliability of measurement results.
Convenient Maintenance and Installation: Its modular design fits perfectly with 3500 series racks, simplifying installation procedures. The hot-swappable feature allows maintenance personnel to replace the module without interrupting the entire monitoring system, minimizing production losses caused by maintenance.
Strong System Compatibility: It integrates seamlessly with the Bently 3500 monitoring framework via the backplane. It can smoothly interact with the overall system for data, supporting the unified management and analysis of equipment monitoring data in large-scale industrial scenarios.

Application Scenarios

Petrochemical Industry: It is widely used to monitor centrifugal compressors, pumps and reactors. It detects vibration spikes and position deviations of key components in a timely manner, preventing catastrophic failures and avoiding huge economic losses and safety accidents such as material leakage caused by equipment shutdowns.
Power Generation Industry: Applied to monitor steam turbines, gas turbines and generators in thermal power, hydropower and other power plants. It tracks parameters such as shaft vibration and eccentricity of power generation equipment, ensuring stable and continuous operation of the power grid and avoiding large-scale power outages.
Aerospace Field: Used for monitoring gas turbines and supporting rotating machinery in aerospace ground test equipment. It meets the high-precision monitoring requirements of aerospace equipment and ensures the safety and accuracy of various test processes.
Metallurgical Industry: Suitable for monitoring rolling mills, fans and motor units in ironmaking and steelmaking workshops. It can operate stably in high-temperature and dusty harsh environments and guarantees the continuous progress of metallurgical production by monitoring the operating status of key equipment.
General Manufacturing Industry: Applied to monitor pumps, fans, gearboxes and motors on various production lines. It provides data support for predictive maintenance of equipment, helps arrange maintenance plans reasonably and reduces production interruptions caused by sudden equipment failures.
