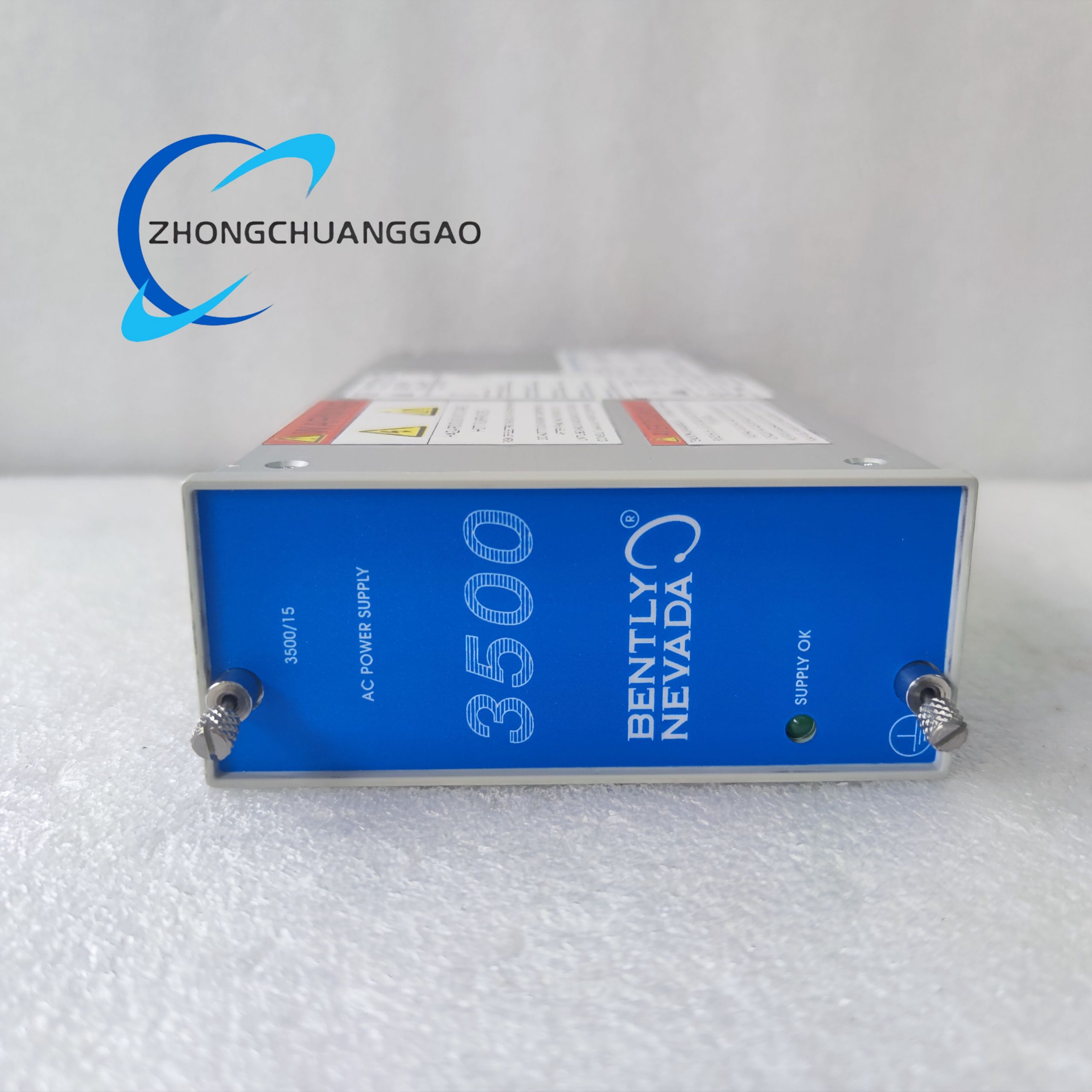

Bently Nevada 3500/15 106M1079-01 AC Power Supply Module
Technical Specifications
-
Input Voltage: 100–240 Vac, 50/60 Hz, 2 A max
-
Output Voltage / Current: 24 Vdc, 5.5 A (133 W continuous, 150 W peak)
-
Load Regulation: ±1 % from 0 A to 5.5 A
-
Ripple & Noise: <50 mV p-p, 20 MHz bandwidth
-
Efficiency: 87 % typical @ 230 Vac, full load
-
Hold-up Time: 20 ms @ 115 Vac, full load
-
Protection: Over-current 120 % (auto-recover), over-voltage 28 Vdc (hiccup), short-circuit (fold-back), over-temp 105 °C (shutdown)
-
Isolation: Input-to-output 3 kVac, input-to-earth 1.5 kVac
-
Temperature Range: –20 °C to +65 °C operational, –40 °C to +85 °C storage
-
Dimensions: 120.7 mm × 50.8 mm × 251.5 mm (H × W × D)
-
Weight: 1.39 kg (3.1 lb)
-
Cooling: Internal fan, temperature controlled
-
Indicators: Green “AC OK”, red “Fault” LEDs on front bezel
-
Connector: IEC C14 inlet, crimp fork terminals for DC output
-
Agency Marks: CE, UL 508, ATEX, IECEx, CSA, TR CU, RoHS, REACH
Description
Functional Highlights
-
Universal Input: Accepts any mains from 100 Vac to 240 Vac without jumper selection.
-
Hot-Swap Design: Slide-in module with captive screws; replacement <30 s while rack remains powered when redundant supply is present.
-
Redundancy Ready: Two modules can be installed in parallel with automatic load-sharing and fail-over.
-
Low Ripple Output: <50 mV noise ensures high-resolution vibration signals are not corrupted.
-
In-rush Limiting: Soft-start circuit reduces mains disturbance when multiple racks start simultaneously.
-
Thermal Management: Fan speed varies with temperature and load, extending bearing life and reducing acoustic noise.
-
System Integration: Front-panel LEDs and relay contacts report status to 3500/20 Rack Interface Module for System 1 software display.
Application Scenarios
-
Steam-, gas- and hydro-turbine generator vibration and thrust protection
-
Centrifugal and reciprocating compressors in LNG, olefins and refinery process trains
-
High-pressure boiler feed-water pumps in coal-fired and combined-cycle plants
-
Large motors, fans and gearboxes in steel, pulp & paper, mining and cement mills
-
Offshore platform critical drives and sub-sea pump motor monitoring
-
Nuclear reactor coolant pump vibration and speed trending
Installation Notes
Insert module into left-most slot; torque captive screws to 0.8 N·m; verify output is 24.00 V ±0.2 V before loading; bond earth terminal to rack earth bus with 2.5 mm² conductor; maintain 50 mm clearance above and below for fan cooling; operate only in environments that do not exceed IP 20 ingress protection.
Insert module into left-most slot; torque captive screws to 0.8 N·m; verify output is 24.00 V ±0.2 V before loading; bond earth terminal to rack earth bus with 2.5 mm² conductor; maintain 50 mm clearance above and below for fan cooling; operate only in environments that do not exceed IP 20 ingress protection.
