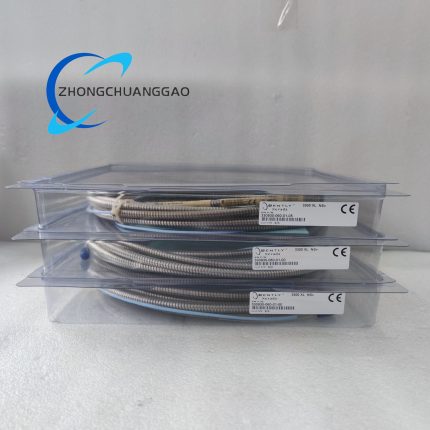

Bently Nevada 330930-065-01-00 3300 XL NSv Extension Cable
Technical Specifications
-
Cable Length: 6.5 m (21.3 ft)
-
Capacitance: 69.9 pF/m (21.3 pF/ft) conductor-to-shield @ 1 kHz
-
Characteristic Impedance: 75 Ω nominal
-
Conductor: Silver-plated copper, 3 × 0.51 mm² (20 AWG)
-
Insulation: Color-coded FEP, steam and chemical resistant
-
Shield: Overall silver-plated copper braid, ≥90 % optical coverage
-
Jacket: Extruded FEP, blue, self-extinguishing per UL VW-1
-
Armor: none (suffix 01 indicates standard unarmored construction)
-
Temperature Range: –51 °C to +177 °C (–60 °F to +351 °F) continuous
-
Fluid Resistance: Immune to mineral oils, phosphate esters, Skydrol, acids and alkalis
-
Bend Radius: 65 mm (2.5 in) minimum repeated flexing
-
Connector: Gold-plated brass ClickLoc, self-locking, mates with 3300 XL NSv probe & Proximitor
-
Agency Approvals: CE, RoHS (no additional approvals required)
Description
Functional Highlights
-
FluidLoc® Barrier: Patent cable core blocks oil wicking, eliminating fire hazard and tank drain-back.
-
Long-Distance Immunity: 6.5 m span maintains 0.2 % full-scale accuracy without extra shielding.
-
ClickLoc Mating: One-hand, finger-tight connection rated for 1 000 cycles under 50 g vibration.
-
Steam-Proof Jacket: FEP insulation survives super-heated steam washes and continuous 177 °C exposure.
-
API 670 Compliance: Certified linearity, sensitivity and temperature drift for machinery protection systems.
-
Hot-Swap Compatible: Cable can be replaced while loop is powered when used with 3500/42M or 1701 racks.
-
Cross-Series Fit: Fully interchangeable with legacy 3300 RAM NSv and 3000-series 5 mm systems.
Application Scenarios
-
Centrifugal air compressors on offshore platforms where panel space is minimal
-
Process gas compressors in ethylene and LNG plants for rod-drop and axial position monitoring
-
Refrigeration screw compressors for thrust-bearing wear and differential expansion
-
High-speed turbo-expanders in cryogenic services
-
Engine turbo-charger vibration and speed feedback
-
Packaging machinery and high-speed printing presses with tight cabinet clearance
Ordering Information
330930-065-01-00 decodes as:
330930 = 3300 XL NSv extension cable family
065 = 6.5 m length
01 = standard unarmored construction
00 = no additional agency approvals required
330930-065-01-00 decodes as:
330930 = 3300 XL NSv extension cable family
065 = 6.5 m length
01 = standard unarmored construction
00 = no additional agency approvals required
Installation Notes
Route away from power cables >300 V; maintain 65 mm bend radius; ground shield at Proximitor end only; torque ClickLoc to finger-tight plus 1/8 turn; verify 7.87 V/mm (200 mV/mil) system sensitivity with 25 µm (1 mil) shim stock during commissioning.
Route away from power cables >300 V; maintain 65 mm bend radius; ground shield at Proximitor end only; torque ClickLoc to finger-tight plus 1/8 turn; verify 7.87 V/mm (200 mV/mil) system sensitivity with 25 µm (1 mil) shim stock during commissioning.
