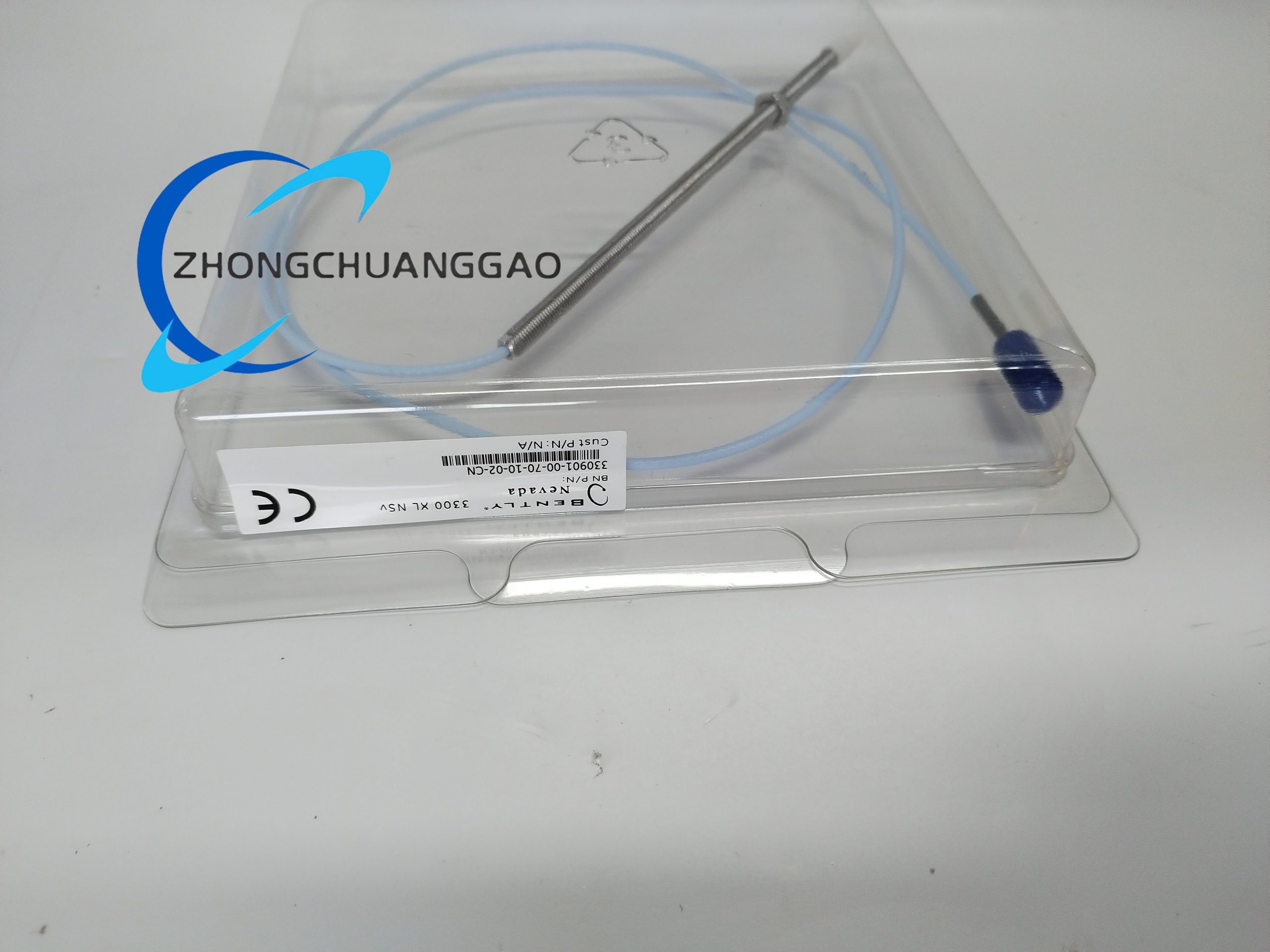

Bently Nevada 330901-00-70-10-02-CN 3300 XL NSv Proximity Probe

Technical Specifications

Probe Tip Diameter: 5 mm (NSv series)
Thread Type / Length: none (smooth case) / 0 mm
Overall Case Length: 1.5 in (38 mm)
Cable Length: 7.0 m (23 ft) 75 Ω triaxial FluidLoc
Cable Armor: none
Sensitivity: 7.87 V/mm (200 mV/mil) ±1 %
Linear Range: 0.25 mm to 2.5 mm (10 mil to 100 mil) gap
Probe Resistance: 8.5 Ω ±0.5 Ω @ 20 °C
Tip Material: Polyphenylene-sulfide (PPS)
Case Material: AISI 304 stainless steel
Temperature Range: –35 °C to +200 °C continuous, +250 °C peak <24 h
Ingress Protection: IP67 when properly installed
Weight: 150 g (5.3 oz)
Agency Approvals: CN (China), CE, RoHS, REACH

Category: Bentley

Description

Functional Highlights

Ultra-Slim 5 mm Tip: Fits counter bores, side-view and rear-view restrictions on small centrifugal air compressors, process gas screws and refrigeration machines.
FluidLoc® Cable: Patent core blocks oil migration along cable, eliminating fire hazard and tank drain-back.
ClickLoc Connector: Gold-plated, self-locking interface rated for 1 000 mate cycles under 50 g vibration.
Front & Back Sealing: Fluoro-rubber O-rings prevent moisture ingress during steam-wash cycles and long outages.
High-Temperature Rating: Continuous 200 °C operation with 250 °C short-term peak tolerance.
Direct Retrofit: Mechanical and electrical match for 3300 RAM and 3000-series 5 mm probes; no monitor re-span required.
CN Certification: Factory-supplied China national approvals shorten project lead-time and on-site inspection cost.

Application Scenarios

Centrifugal air compressors on offshore platforms where panel space is minimal
Process gas compressors in ethylene and LNG plants for rod-drop and axial position monitoring
Refrigeration screw compressors for thrust-bearing wear and differential expansion
High-speed turbo-expanders in cryogenic services
Engine turbo-charger vibration and speed feedback
Packaging machinery and high-speed printing presses with tight cabinet clearance

Ordering Information
330901-00-70-10-02-CN decodes as:
330901 = 3300 XL NSv proximity probe family
00 = 0.0 in unthreaded length
70 = 7.0 m cable length
10 = 1.5 in overall case length
02 = miniature coaxial ClickLoc connector
CN = China national approval

Installation Notes
Install with recommended 68 N·m torque; use anti-seize on smooth case; maintain minimum 25 mm bend radius on cable; ground shield at Proximitor end only; verify 7.87 V/mm sensitivity with 25 µm (1 mil) shim during commissioning.
