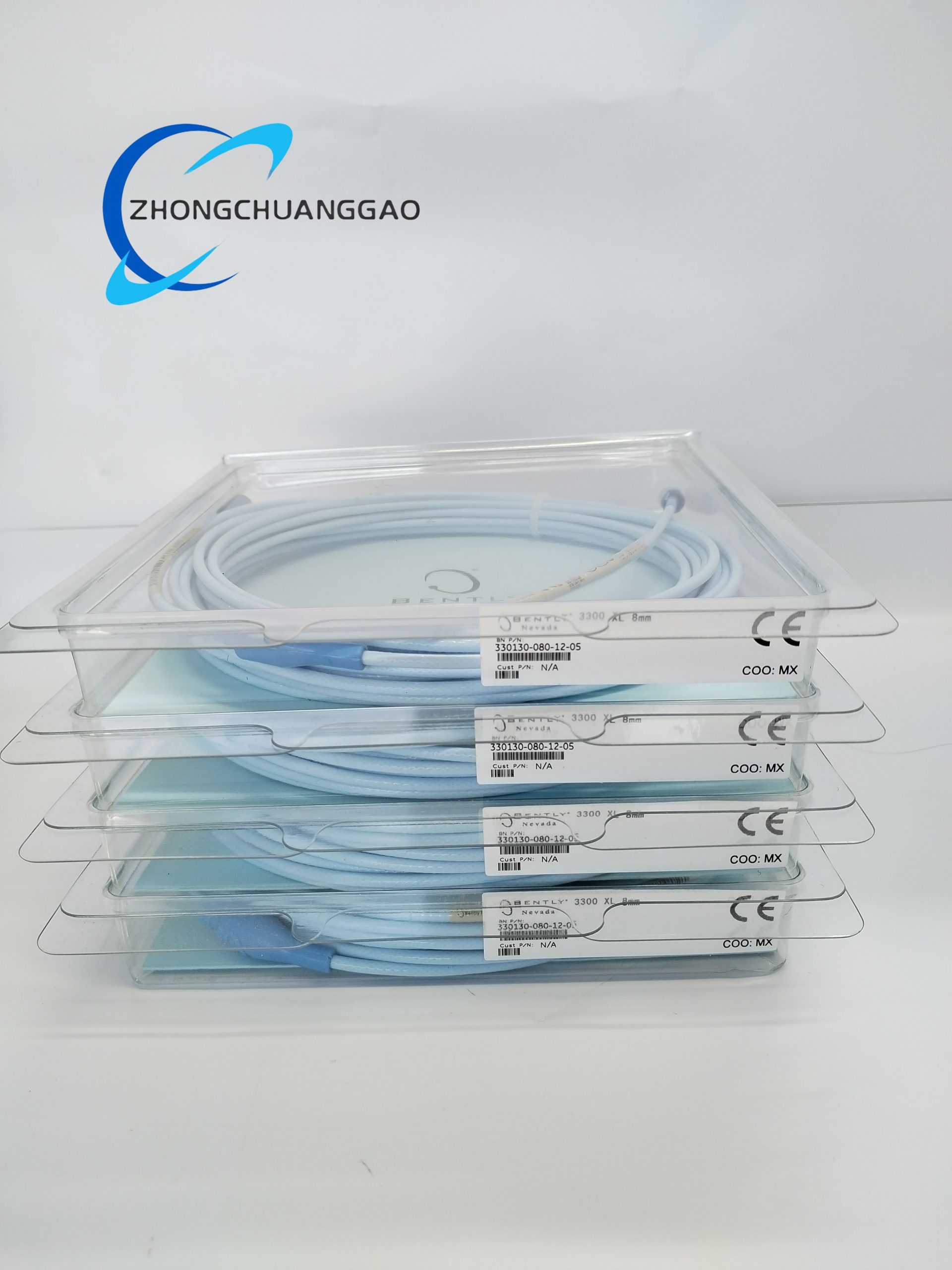

Bently Nevada 330130-080-12-05 Extension Cable
Technical Specifications
-
Part Number: 330130-080-12-05
-
Cable Length: 8.0 m (26.2 ft)
-
Characteristic Impedance: 75 Ω ±2 %
-
Conductor: Silver-plated copper, triaxial construction
-
Insulation/Jacket: Fluorinated ethylene-propylene (FEP), −51 °C to +177 °C
-
Outer Diameter: 3.8 mm (0.15 in)
-
Minimum Bend Radius: 25 mm (1 in)
-
Weight: 0.35 kg (0.77 lb)
-
Connector: Miniature coaxial, ClickLoc, gold-plated, IP67 when mated
-
Pull Strength: 330 N (75 lbf) guaranteed at connector interface
-
Capacitance: 69.9 pF/m (21.3 pF/ft) typical
-
Center-Conductor Resistance: 1.56 Ω ±0.23 Ω (8 m length)
-
Supply Range: −17.5 Vdc to −26 Vdc, 12 mA max
-
Agency Option: 05 – CSA, ATEX, IECEx, NEPSI multiple approvals
Description
Functional Highlights
-
TipLoc injection-molding creates a molecular bond between cable and connector, eradicating flex fatigue.
-
CableLoc design delivers 330 N retention force without secondary locking hardware.
-
FluidLoc barrier blocks fluid migration along cable core in oil-flood or splash zones.
-
Connector protector shields the probe-to-extension junction from mechanical stress and contaminant ingress.
-
Temperature-compensated internal conductors keep linearity within ±1 % across −51 °C to +177 °C.
-
ClickLoc audible/tactile latch confirms secure mating in high-vibration zones.
-
Fully interchangeable with every 3300 XL 8 mm probe and 330180/330780 Proximitor sensor; no serial-number matching required.
Application Scenarios
-
Steam and gas turbine shaft vibration, thrust position, and differential expansion monitoring
-
Centrifugal and reciprocating compressor rod-drop and cylinder vibration protection
-
Large motor and generator air-gap eccentricity or rotor bar measurement
-
Refinery and petrochemical pump speed, phase reference, and zero-speed detection
-
Steel mill fan, blower, and gearbox bearing condition trending
-
Offshore platform cooling-water pump and top-drive monitoring loops
-
API 670 compliant machinery protection systems in hazardous areas worldwide
