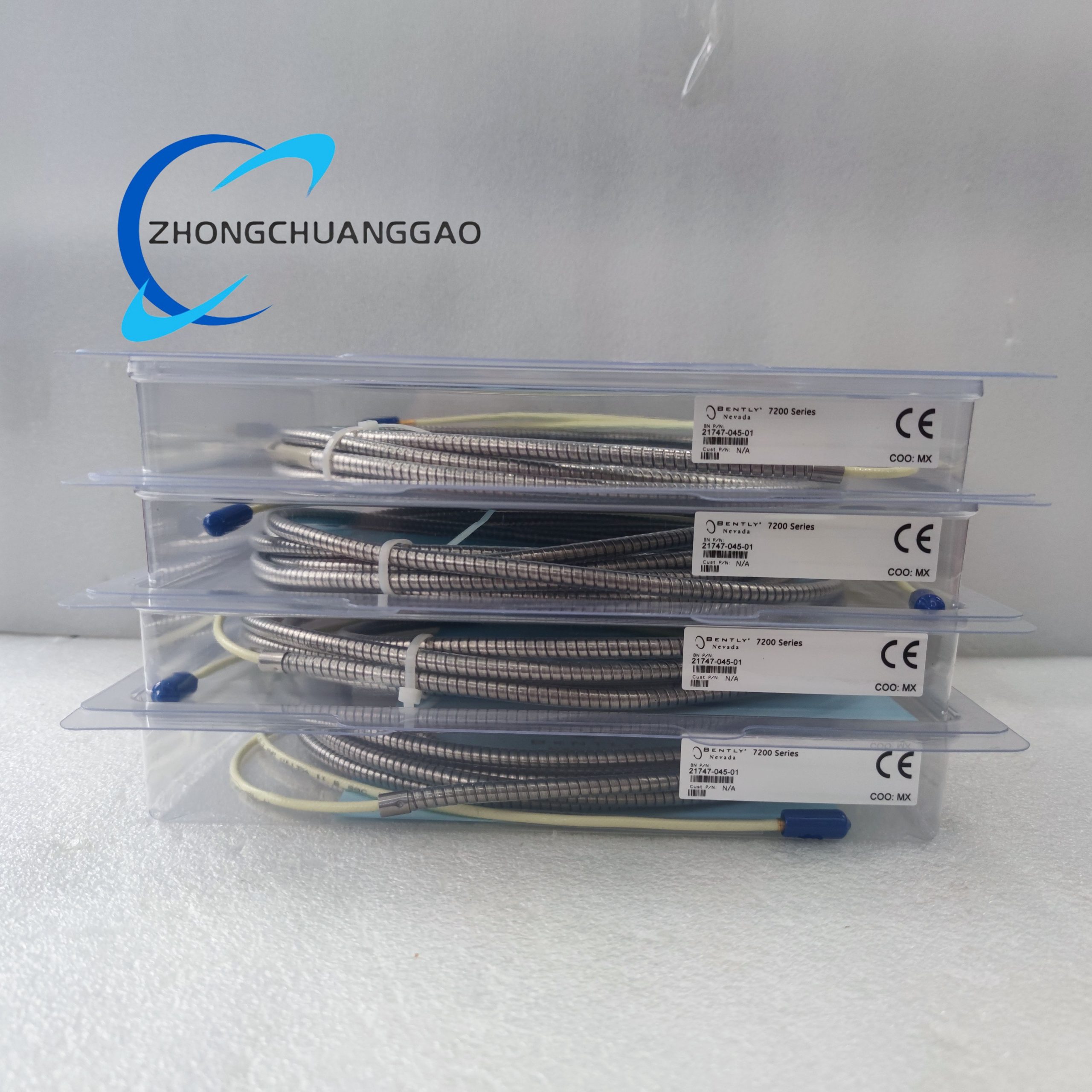

Bently Nevada 21747-045-01 High-Performance Proximitor Probe Extension Cable - Image 1
Click to enlarge
Bently Nevada 21000-16-05-00-050-04-02 Proximity Probe Housing Assembly
Bently Nevada 21000-16-05-00-050-04-02 Proximity Probe Housing Assembly
Back to products
Bently Nevada 30130-040-00-00 3300 XL Standard Extension Cable
Bently Nevada 30130-040-00-00 3300 XL Standard Extension Cable

Bently Nevada 21747-045-01 High-Performance Proximitor Probe Extension Cable

Technical Specifications

  • Product Type: Proximitor Probe Extension Cable
  • Core Material: High-grade conductive material with corrosion-resistant coating; high-strength alloy components
  • Cable Length: 4.5 meters (designated by “045” in part number)
  • Armor Protection: Steel armor (designated by “01” in part number)
  • Connector Type: DB9 shielded connector
  • Wire Gauge: 22 AWG
  • Operating Temperature Range: -34 °C to +177 °C (-29 °F to +351 °F)
  • Environmental Protection Rating: IP67 (dust-tight and water-resistant)
  • Electrical Rating: 24 V DC
  • Operating Frequency: Up to 1 MHz
  • Insulation Resistance: ≥ 100 MΩ @ 500 VDC
  • Signal Output: 200 mV/mil
  • Measurement Range Compatibility: 0 – 80 mils (0 – 2 mm)
  • Accuracy: ± 4% calibrated
  • Dimensions: 300 × 300 × 60 mm
  • Weight: 0.59 kg
  • Country of Origin: USA
Category:
Description

Functional Features

  • Superior Signal Integrity: Advanced shielding and conductive materials prevent electromagnetic interference, maintaining precise data transmission over the full cable length.
  • Robust Durability: Steel armor provides exceptional resistance to crushing, abrasion, and mechanical damage, while corrosion-resistant coating protects against harsh chemicals and moisture.
  • Broad Environmental Adaptability: IP67 rating and wide operating temperature range ensure reliable performance in dusty, wet, freezing, or high-heat industrial conditions.
  • Seamless Compatibility: Designed to integrate with Bently Nevada 3300, 3500, and 2300V3 series systems, as well as 8mm armored proximity probes, enabling easy setup with existing equipment.
  • Flexible Installation: Optimal length and bend radius (minimum 80mm) allow routing in tight spaces, reducing installation complexity and downtime.
  • Long-Term Reliability: Rigorous manufacturing standards and high-quality materials ensure consistent performance, supporting long-term predictive maintenance initiatives.

Application Scenarios

  • Power generation (gas, steam, and hydro turbines; generators)
  • Oil and gas industry (compressors, pumps, and rotating machinery)
  • Chemical and petrochemical plants (process control systems, mixers)
  • Manufacturing (automotive plant robots, food processing belts, papermaking/printing lines)
  • Airport and logistics (conveyor systems)
  • Agricultural equipment
  • Industrial automation (DCS distributed control systems, PLC programmable control systems)
  • Critical machinery condition monitoring and predictive maintenance programs
  • Harsh environment applications requiring dust, water, and corrosion resistance
