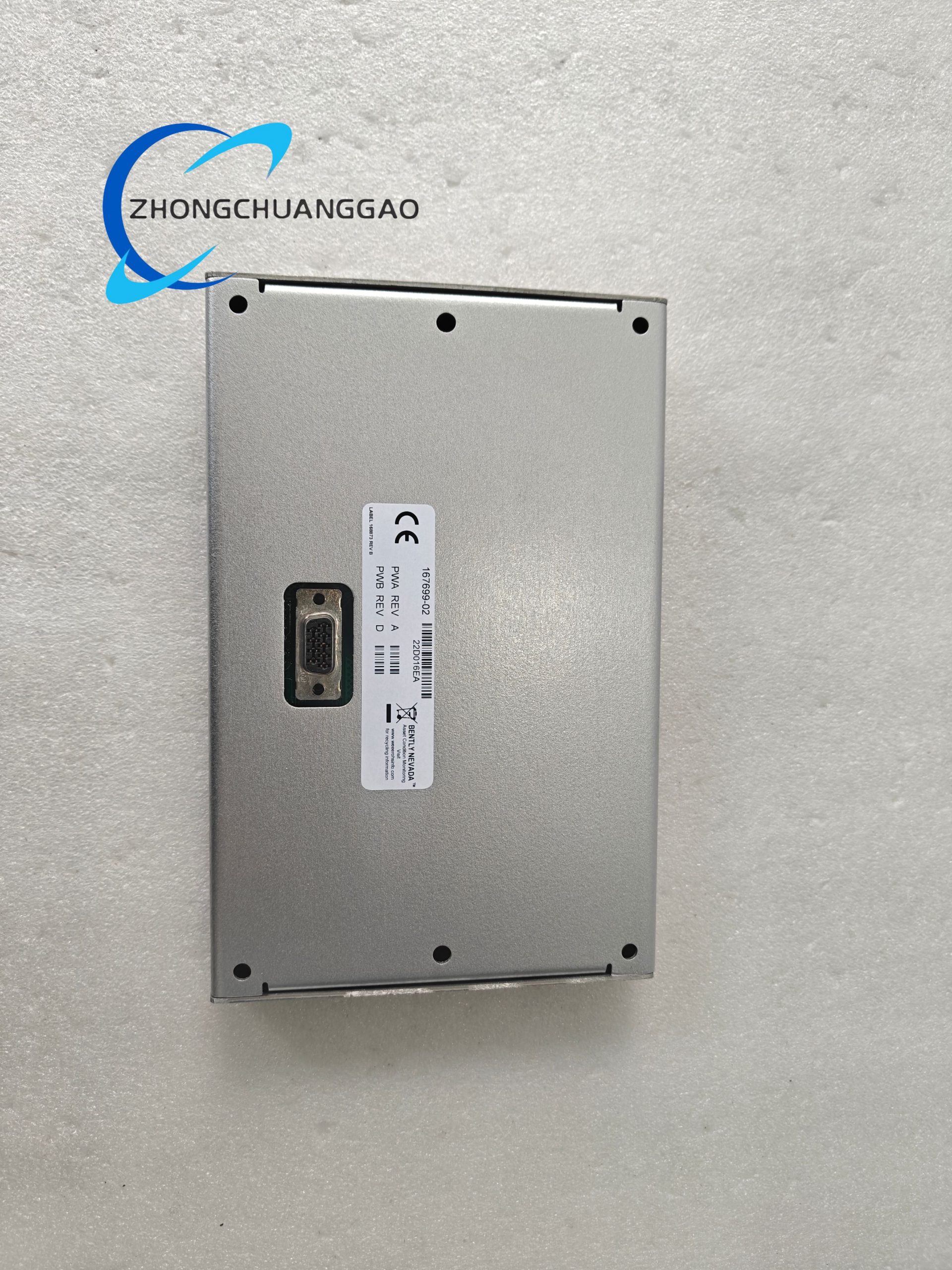

Bently Nevada 1900/65A 167699-02 Universal Equipment Monitor - Image 1
Bently Nevada 1900/65A 167699-02 Universal Equipment Monitor - Image 2
Click to enlarge

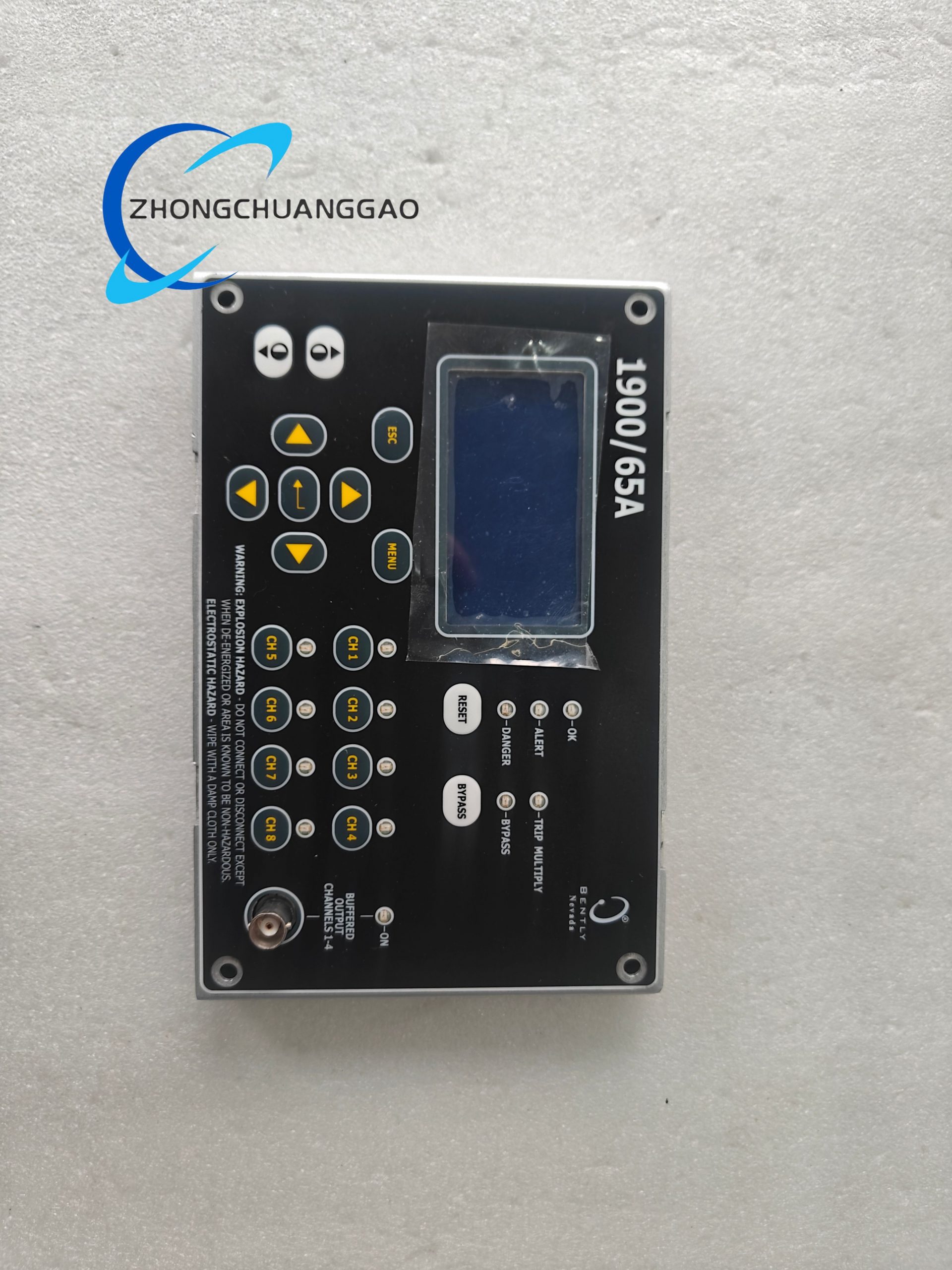

Bently Nevada 1900/65A 167699-02 Universal Equipment Monitor
Bently Nevada 1900/65A 167699-02 Universal Equipment Monitor - Image 2
Bently Nevada 170110-01 24V DC Power Supply Module
Bently Nevada 170110-01 24V DC Power Supply Module
Back to products

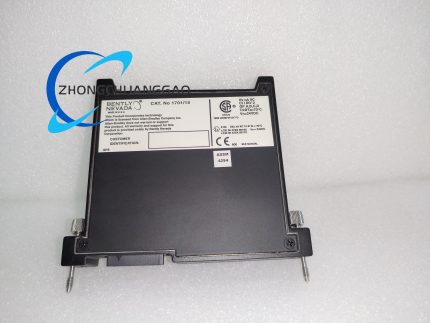

Bently Nevada 1701/15 FieldMonitor Proximitor Input Monitor
Bently Nevada 1701/15 FieldMonitor Proximitor Input Monitor

Bently Nevada 1900/65A 167699-02 Universal Equipment Monitor

Technical Specifications

  • Brand: Bently Nevada
  • Model: 1900/65A (167699-02)
  • Type: Universal Equipment Monitor
  • Power Supply: 12 V DC; 220 V (alternate input option)
  • Operating Temperature: -40 °C to +85 °C
  • Sampling Rate: 256 Hz
  • ADC Resolution: 24-bit
  • Accuracy: ±0.1% full scale
  • Sensor Inputs: 4 channels (configurable for 2-wire/3-wire accelerometers, velocity sensors, proximity probes)
  • Temperature Inputs: 4 channels (supports E, J, K, T-type thermocouples; 2-wire/3-wire RTDs)
  • Output Signals: 4 configurable 4-20 mA recorder outputs; buffered outputs for each sensor channel
  • Relay Outputs: 6 configurable relays
  • Communication Interfaces: RS-232/485 (software configurable), Ethernet; supports Modbus RTU, Ethernet/IP, Profinet
Category:
Description
  • Event Log Capacity: 200-entry event list
  • Frequency Response: 0.5 Hz to 200 Hz
  • Dimensions: 20 cm × 25 cm × 30 cm
  • Weight: 2.5 kg
  • Environmental Protection: Rugged construction for dust, moisture, and vibration resistance
  • Memory: Non-volatile memory for permanent configuration storage
  • Display Option: Optional remote display/keyboard (up to 75 meters distance)

Function Features

  • Multi-Parameter Monitoring: Simultaneously tracks vibration, position, speed, and temperature via dedicated input channels
  • High-Precision Conversion: 24-bit ADC system delivers accurate data for detecting subtle machinery anomalies
  • Configurable Alarms: Independent alarm and danger setpoints for each channel, with programmable relay triggers
  • Flexible Outputs: 4-20 mA recorder outputs and buffered sensor signals enable data logging and secondary analysis
  • Comprehensive Event Tracking: 200-entry event log stores historical data for maintenance troubleshooting and trend analysis
  • Seamless Integration: Supports Modbus, Ethernet/IP, and Profinet for connectivity with DCS, SCADA, PLC, and System 1 software
  • Standalone Operation: Optional display/keyboard allows on-site configuration and monitoring without external devices
  • Secure Configuration: Non-volatile memory preserves settings; configuration files downloadable/uploadable via Ethernet
  • Redundant Communication: Network redundancy and fault-tolerant data transmission ensure continuous operation
  • Encrypted Communication: Optional data encryption protects against tampering and unauthorized access

Application Scenarios

  • Power Generation: Monitors turbines, generators, and auxiliary rotating equipment to prevent unplanned downtime
  • Oil & Gas Industry: Tracks pumps, compressors, and drilling machinery in harsh upstream and downstream environments
  • Manufacturing: Protects production line motors, fans, and conveyors through real-time condition monitoring
  • Chemical Processing: Monitors agitators, mixers, and reactors where equipment failure risks process disruption
  • Mining & Heavy Industry: Supports reliability of crushers, mills, and heavy-duty pumps in extreme operating conditions
  • Pulp & Paper Mills: Monitors rollers, blowers, and processing equipment to maintain production consistency
  • Water & Wastewater: Ensures uptime of pumps and aerators critical to treatment processes
  • Food & Beverage: Safeguards hygienic processing machinery with non-intrusive monitoring capabilities
