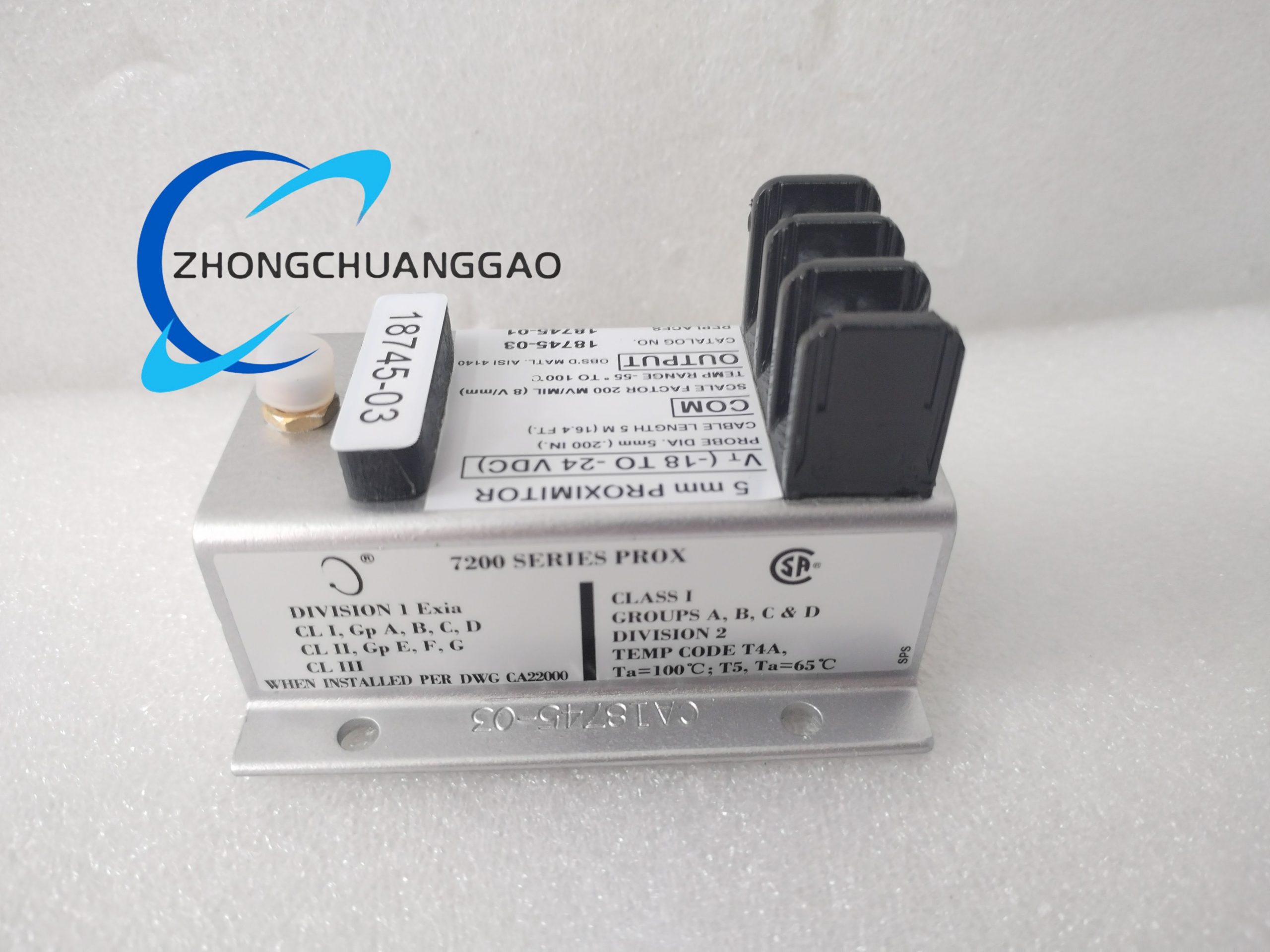

Bently Nevada 18745-03 Universal Equipment Monitor

• Mechanical Parameters
  • Material: High-grade stainless steel
  • Dimensions: 20 cm × 25 cm × 30 cm (length × width × height)
  • Weight: 2.5 kg
  • Mounting: Compatible with standard industrial mounting configurations
  • Proximitor design: Side-shielded to reduce target misalignment effects
• Environmental Parameters
  • Operating temperature: -40 °C to +85 °C
  • Corrosion resistance: High (stainless steel construction)
  • Operational compatibility: Suitable for harsh industrial environments with dust, humidity, and temperature fluctuations
• Performance Parameters
  • Efficiency: Over 95%
  • Overload capacity: 150% for 1 minute
  • Event logging: 200-entry event list with time and date stamping
  • Data storage: Non-volatile memory for configuration and event data

Function Features

• Multifunctional Monitoring CapabilityCombines proximitor sensor functions (distance/gap measurement) with universal monitoring (vibration, position, temperature), enabling comprehensive equipment condition tracking in a single unit.
• High Precision & ReliabilityDelivers ±25 µm measurement accuracy and ±1% of reading precision, paired with 24-bit ADC conversion for high-resolution data capture; side-shielded proximitor design minimizes target misalignment impacts.
• Flexible Input/Output ConfigurationSupports 4 sensor inputs (multiple sensor types) and 4 temperature inputs (various thermocouples/RTDs); offers 6 relay outputs, 4–20 mA recorder outputs, and dedicated buffer outputs for versatile system integration.
• Robust & Durable ConstructionBuilt with high-grade stainless steel for corrosion resistance and longevity, capable of withstanding extreme temperatures (-40 °C to +85 °C) and harsh industrial conditions.
• Seamless Industrial IntegrationSupports multiple communication protocols (Ethernet/IP, Profinet, Modbus) and interfaces (Ethernet, RS232/485), enabling direct connection to DCS, SCADA, PLC systems, and Bently System 1 software.
• User-Friendly Configuration & OperationConfigurable via 1900 software (PC/laptop) with non-volatile memory for settings; optional remote display/keyboard (up to 75 meters) allows on-site adjustments and standalone operation.
• Enhanced Safety & Fault ManagementFeatures independent alarm and danger setpoints, programmable relay actions, and a 200-entry event log for real-time fault detection and historical analysis; network redundancy ensures continuous data transmission.
• Energy Efficiency & Overload ProtectionOperates with over 95% efficiency to reduce energy consumption; 150% overload capacity for 1 minute safeguards against operational spikes.

Application Scenarios

• Power Generation IndustryMonitoring turbines, generators, and auxiliary equipment (pumps, fans) for vibration, shaft position, bearing temperature, and gap clearances, supporting predictive maintenance in thermal, nuclear, and renewable energy plants.
• Oil & Gas IndustryTracking rotating machinery (compressors, pumps, pipelines) and process equipment in refineries, offshore platforms, and gas processing facilities; measuring gaps, vibration, and temperature to prevent equipment failure in corrosive/high-temperature environments.
• Manufacturing & AutomationCondition monitoring of motors, conveyors, machining centers, and gearboxes in production lines; ensuring proper alignment, detecting wear, and optimizing process control for minimized downtime.
• Chemical & Pharmaceutical IndustryMonitoring reactors, mixers, and centrifuges for vibration, temperature, and component positioning; withstanding harsh chemical environments via corrosion-resistant construction.
• Mining & Heavy MachineryMeasuring gaps, vibration, and temperature in crushers, grinders, and conveyor systems; operating reliably in dusty, high-impact conditions with extreme temperature fluctuations.
• Water & Wastewater TreatmentMonitoring pumps, blowers, and agitators for bearing temperature, vibration, and shaft position; ensuring continuous operation of critical water management equipment.
• Industrial Process ControlIntegrating with DCS/SCADA/PLC systems for real-time data transmission, alarm triggering, and process adjustment; supporting automated control workflows and remote monitoring.
