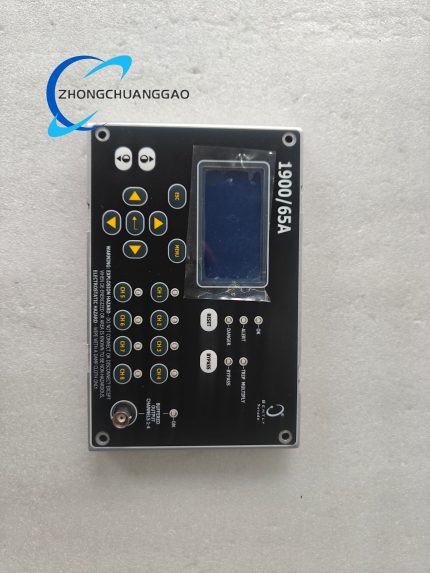

Bently Nevada 1900/65A 167699-02 Universal Equipment Monitor
Bently Nevada 1900/65A 167699-02 Universal Equipment Monitor

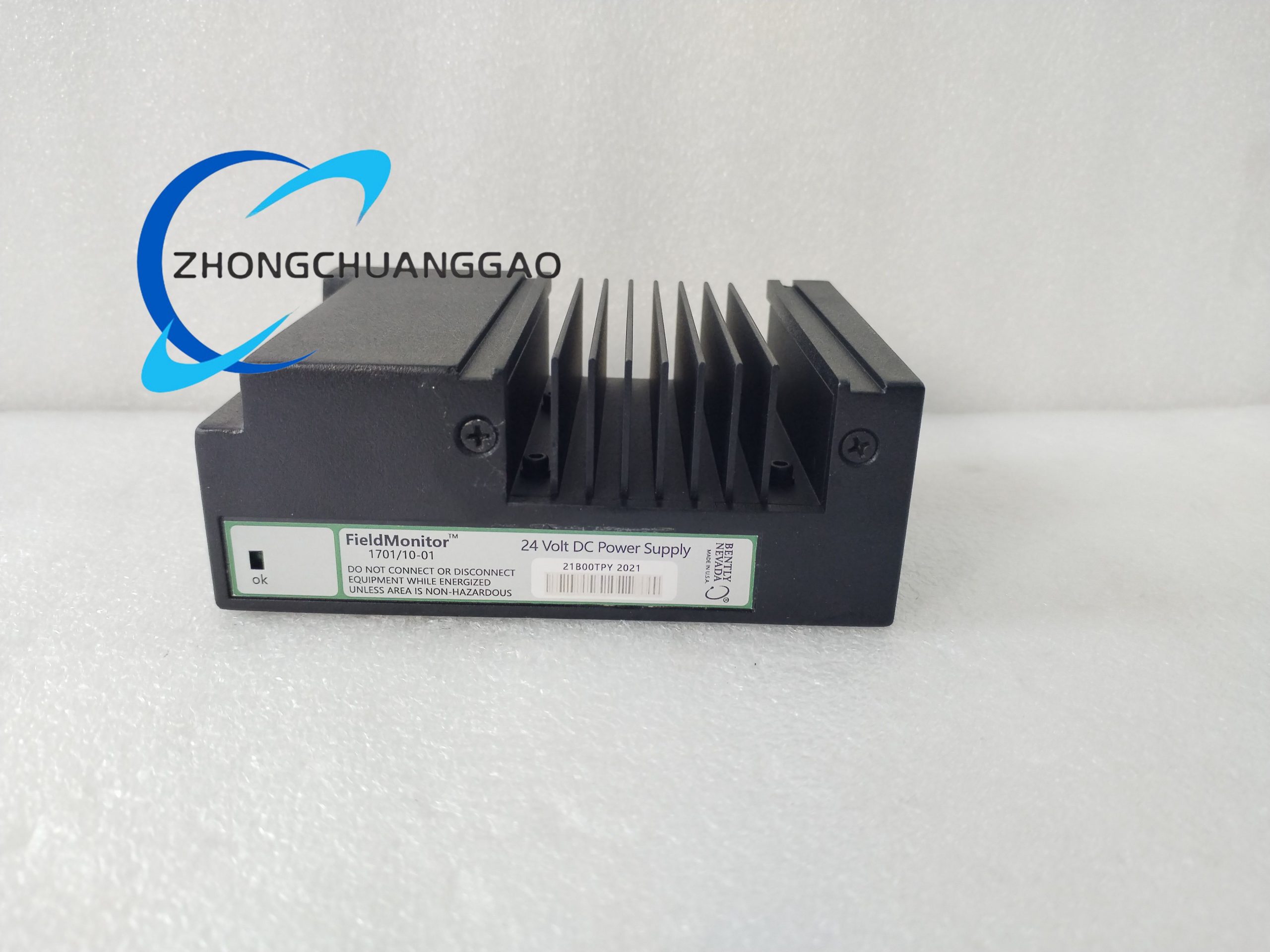

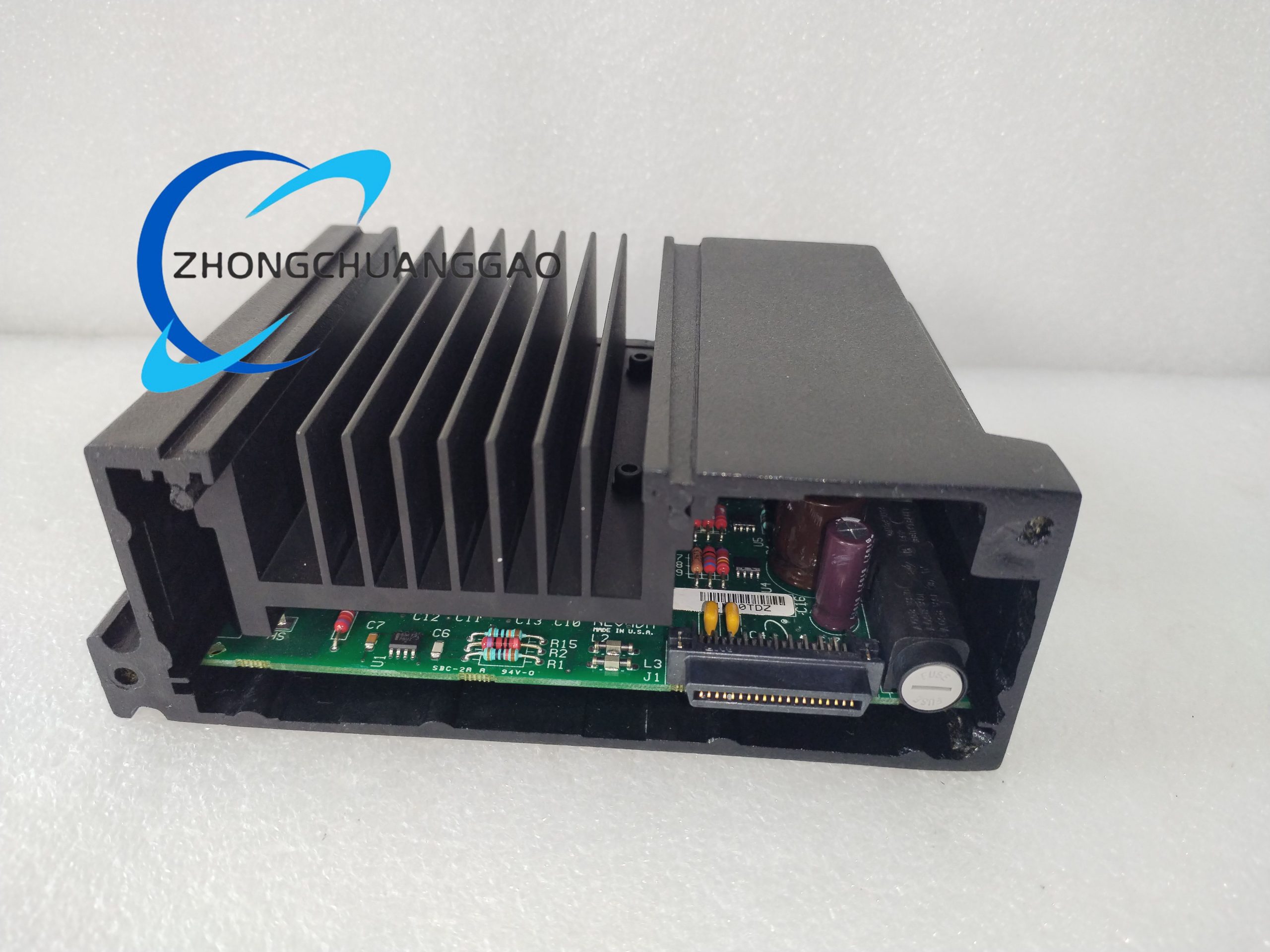

Bently Nevada 170110-01 24V DC Power Supply Module

Technical Specifications

  • Brand: Bently Nevada
  • Model: 170110-01
  • Type: 24V DC Power Supply Module
  • Series: 1700 Series
  • Input Voltage Range: +18 V DC to +36 V DC
  • Surge Current: 30 Amp peak (nominal)
  • Fuse Rating: 250 V, 3 Amp, SB type
  • Voltage Isolation: 850 V DC (primary to chassis) for 1 minute
  • Overvoltage Protection: Withstands up to 50 V DC without damage
  • Input Conductor Size: 14 to 26 AWG
  • Operating Temperature: -20 °C to +70 °C (-4 °F to +158 °F)
  • Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
  • Operating Humidity: 5% to 95% (non-condensing)
  • Storage Humidity: 5% to 95% (non-condensing)
  • Mounting Location: Special slot in Bently Nevada 1701/05 or 1701/06 FieldMonitor terminal bases
  • Warranty: 1 year
  • Availability: In stock
Category:
Description

Function Features

  • Dedicated Power Provision: Supplies required logic and sensor voltages to other FieldMonitor modules, ensuring system integrity
  • Wide Input Voltage Tolerance: Accepts +18 V DC to +36 V DC input, adapting to fluctuating industrial power conditions
  • Surge Protection: 30 Amp peak surge current handling capability prevents damage from power spikes
  • Overvoltage Safeguard: Withstands up to 50 V DC input without damage, enhancing operational durability
  • Reliable Isolation: 850 V DC isolation between primary circuit and chassis ensures electrical safety
  • Fuse Protection: 3 Amp SB fuse provides overcurrent protection for the module and connected components
  • Harsh Environment Adaptability: Operates in extreme temperatures and high humidity, suitable for industrial settings
  • System Integration: Seamlessly integrates with Bently Nevada 1701 Series FieldMonitor terminal bases and System 1 suite
  • Secure Wiring: Accommodates 14 to 26 AWG input conductors for flexible and secure electrical connections

Application Scenarios

  • Power Plants: Powers vibration and condition monitoring modules for turbines, generators, and auxiliary rotating equipment
  • Petrochemical Industry: Supports monitoring systems for pumps, compressors, and reactors in refining and drilling operations
  • Pulp and Paper Mills: Supplies power to machinery health monitoring modules for rollers, fans, and processing equipment
  • Heavy Industry: Powers control system modules for critical rotating machinery in mining, metallurgy, and manufacturing
  • Industrial Control Rooms: Serves as a dedicated power source for Bently Nevada FieldMonitor systems in centralized control environments
  • Mechanical Protection Systems: Enables stable operation of vibration, temperature, and position monitoring modules for equipment protection
  • Condition Monitoring Setups: Integrates into predictive maintenance systems to ensure continuous power for real-time data collection modules
