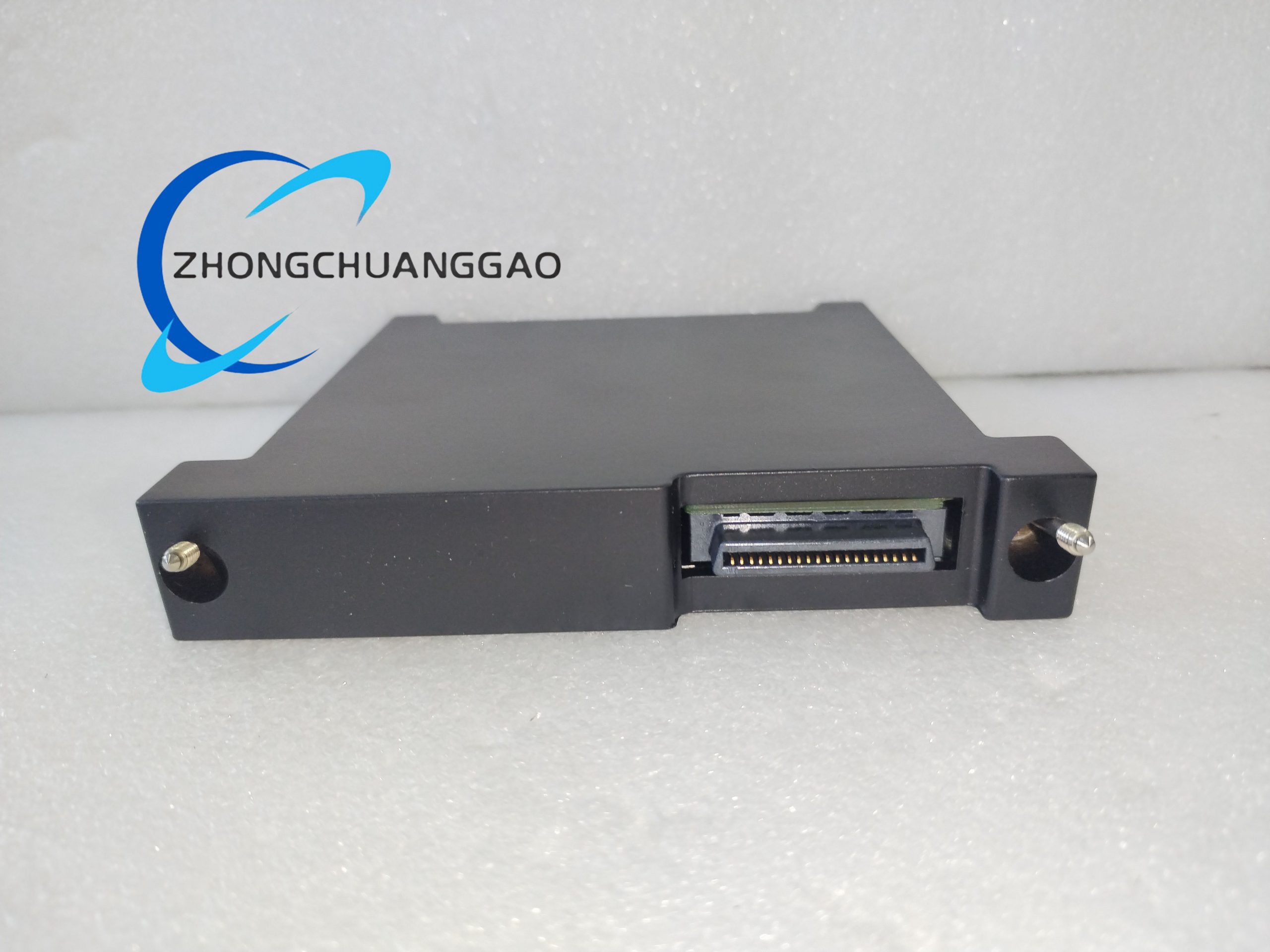

Bently Nevada 1701/25 FieldMonitor Seismic Input Monitor - Image 1

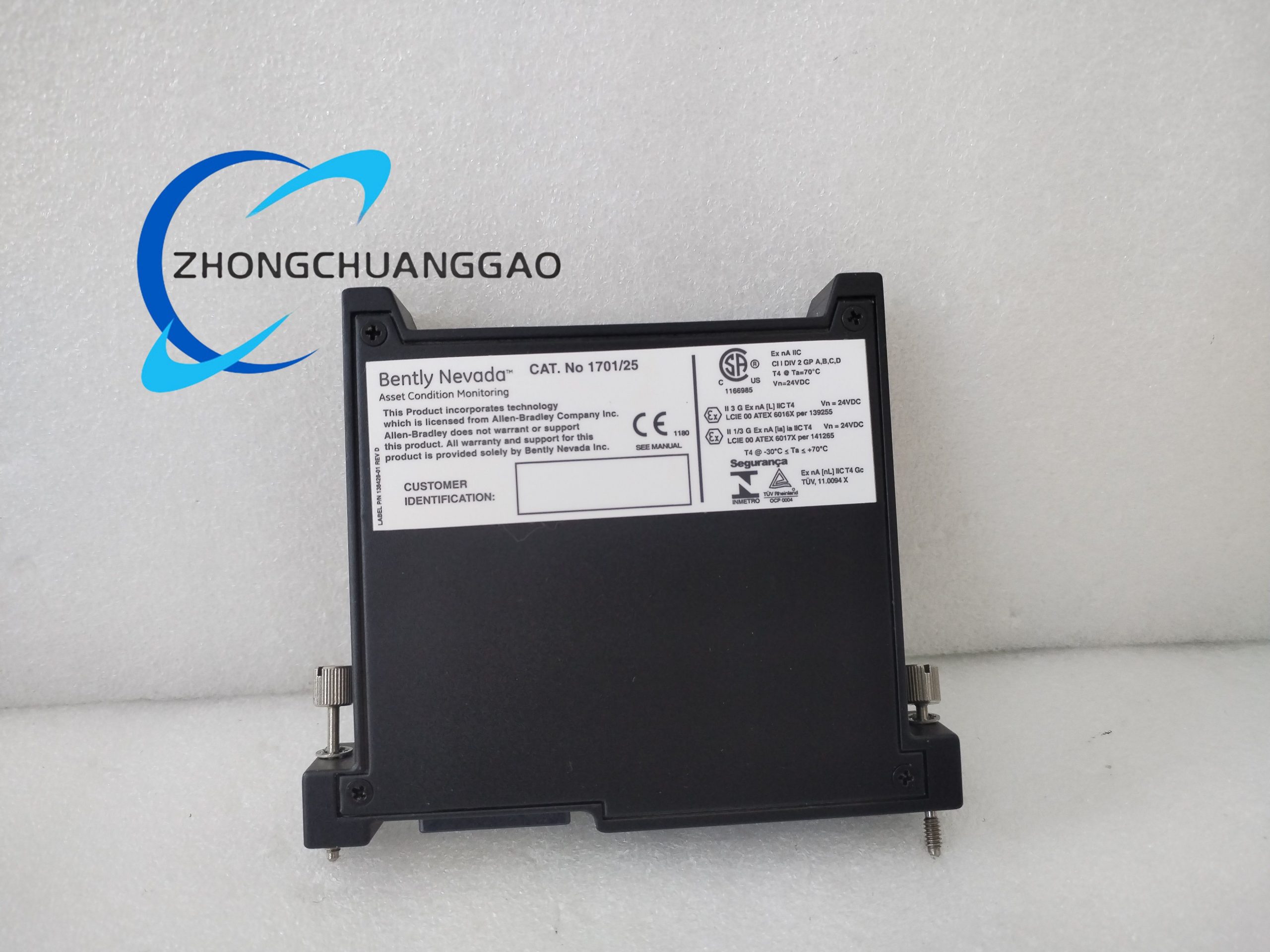

Bently Nevada 1701/25 FieldMonitor Seismic Input Monitor - Image 2

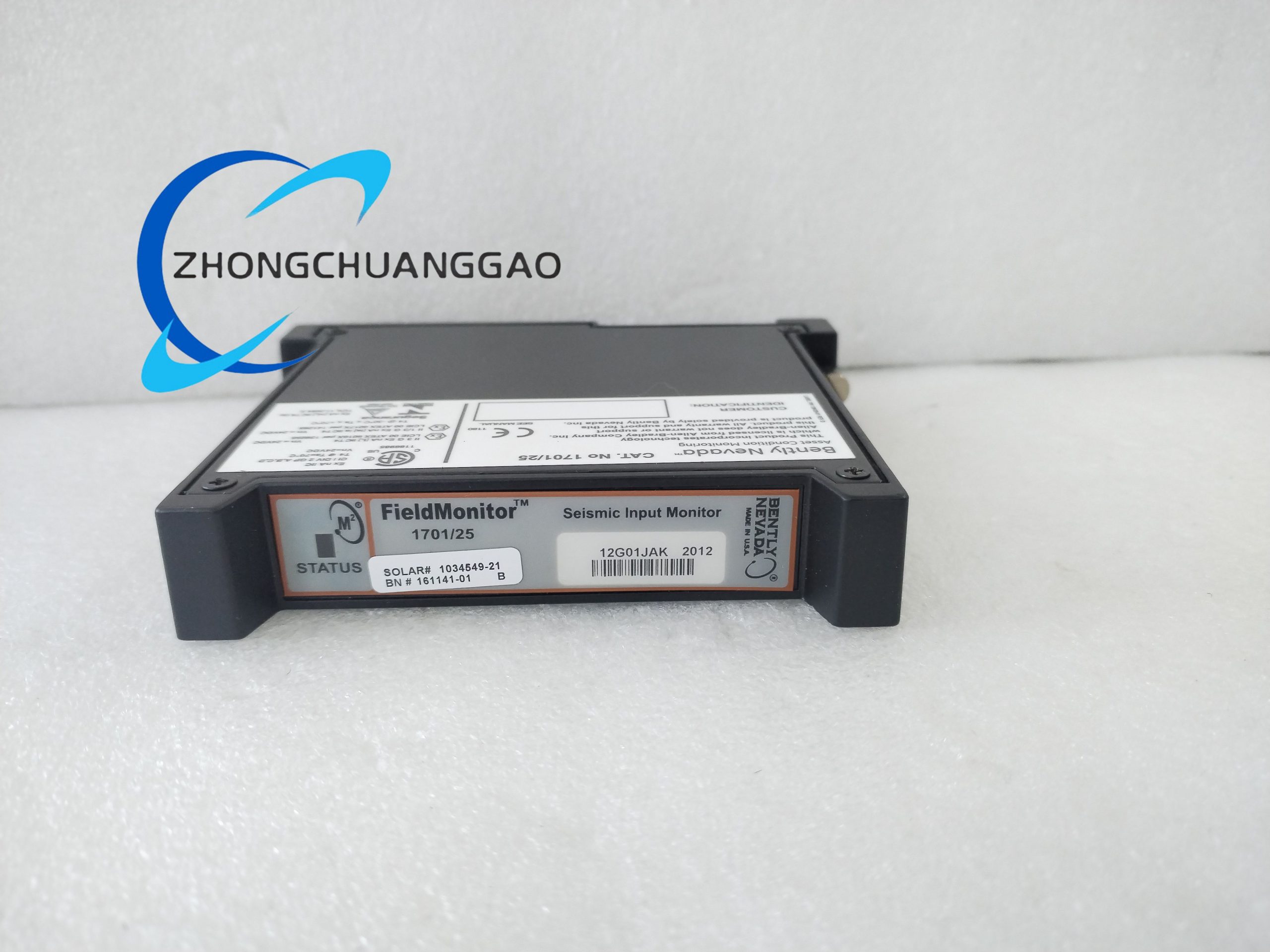

Bently Nevada 1701/25 FieldMonitor Seismic Input Monitor - Image 3
Click to enlarge
Bently Nevada 1701/25 FieldMonitor Seismic Input Monitor
Bently Nevada 1701/25 FieldMonitor Seismic Input Monitor - Image 2
Bently Nevada 1701/25 FieldMonitor Seismic Input Monitor - Image 3
Bently Nevada 1701/15 FieldMonitor Proximitor Input Monitor
Bently Nevada 1701/15 FieldMonitor Proximitor Input Monitor
Back to products

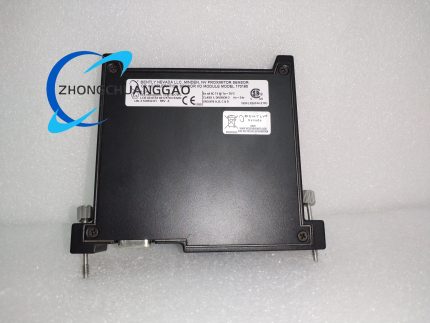

Bently Nevada 170180-01-0 FieldMonitor External Transducer I/O Module
Bently Nevada 170180-01-0 FieldMonitor External Transducer I/O Module

Bently Nevada 1701/25 FieldMonitor Seismic Input Monitor

Technical Specifications

  • Brand: Bently Nevada
  • Model: 1701/25
  • Type: FieldMonitor Seismic Input Monitor
  • Power Supply: 9 VDC to 36 VDC
  • Power Consumption: 10 mA maximum; 20 mA maximum at 12 VDC
  • Operating Temperature: -40 °C to +85 °C
  • Storage Temperature: -40 °C to +104 °C
  • Operating Humidity: 0% to 95% non-condensing
  • Sensor Compatibility: Seismic transducers, proximity sensors
  • Input Signal Range: -10 V to +10 V
  • Vibration Measurement Range: 0.01 g to 100 g
  • Frequency Response: 5 Hz to 5 kHz
  • Accuracy: ±1% of full scale
  • Response Time: Less than 1 ms
  • Output Type: Discrete alarm outputs, relay contacts
  • Communication Protocol: Modbus RTU
  • Reliability Rating: 99.9% uptime
  • Dimensions: 145 mm × 112 mm × 35 mm
  • Weight: 275 g
Category:
Description

Function Features

  • Seismic Vibration Focus: Specializes in monitoring structural and machinery vibration via compatible seismic transducers, capturing subtle motion anomalies
  • Multi-Sensor Compatibility: Works with both seismic transducers and proximity sensors, supporting versatile monitoring setups
  • High Precision Measurement: Delivers ±1% full-scale accuracy with a 0.01 g to 100 g vibration range, ensuring reliable data for diagnostics
  • Rapid Response: Sub-1 ms response time enables immediate detection of sudden vibration spikes or machinery malfunctions
  • Seamless System Integration: Modbus RTU protocol facilitates smooth data exchange with PLCs, DCS, and SCADA systems
  • Discrete Alarm Outputs: Triggers predefined alerts via relay contacts when vibration exceeds user-set thresholds, enabling proactive equipment protection
  • Harsh Environment Durability: Operates in extreme temperatures and high humidity, maintaining performance in demanding industrial conditions
  • Low Power Consumption: Minimal power draw (10 mA max) reduces energy requirements for continuous monitoring
  • High Reliability: 99.9% uptime ensures consistent operation for critical machinery protection

Application Scenarios

  • Power Generation: Monitors vibration in turbines, generators, and boiler feed pumps to prevent catastrophic failures and ensure grid stability
  • Oil & Gas Industry: Tracks seismic vibration in drilling rigs, pipeline compressors, and refinery reactors exposed to harsh operating conditions
  • Mining & Heavy Industry: Protects crushers, mills, and conveyor systems by detecting excessive vibration from material imbalance or component wear
  • Chemical Processing: Monitors agitators, mixers, and reaction vessels to avoid process disruption from machinery vibration
  • Manufacturing: Ensures reliability of production line motors, fans, and precision machining tools by tracking structural and operational vibration
  • Pulp & Paper Mills: Monitors roller systems and drying equipment to maintain production quality and prevent unplanned downtime
  • Water & Wastewater: Safeguards pumps and aerators critical to treatment processes, detecting vibration-related issues early
  • Industrial Automation: Integrates into centralized control systems for real-time monitoring of diverse rotating and stationary machinery
