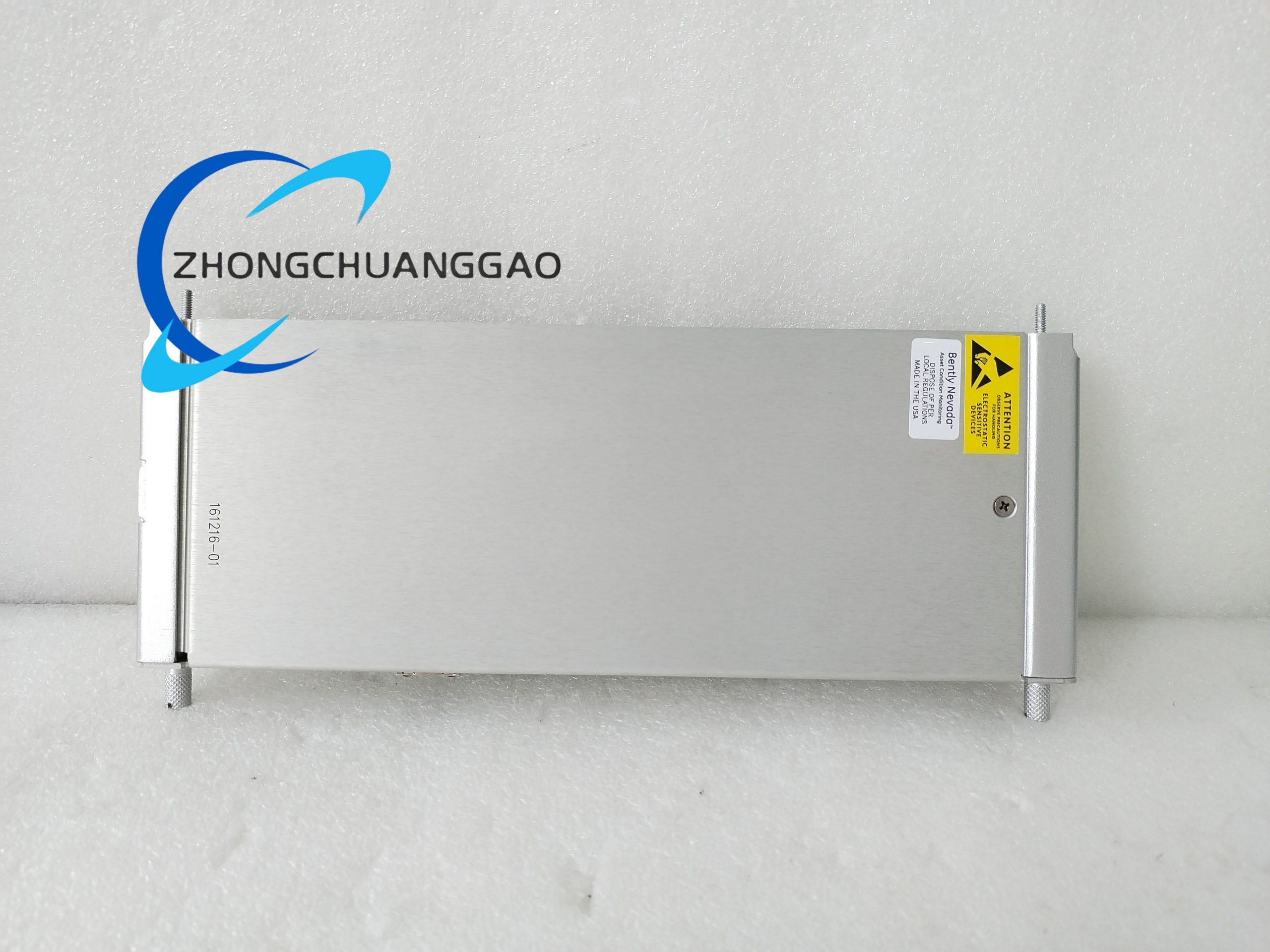

Bently Nevada 161216-01 Ethernet 10BASE-T/100BASE-TX I/O Module - Image 1

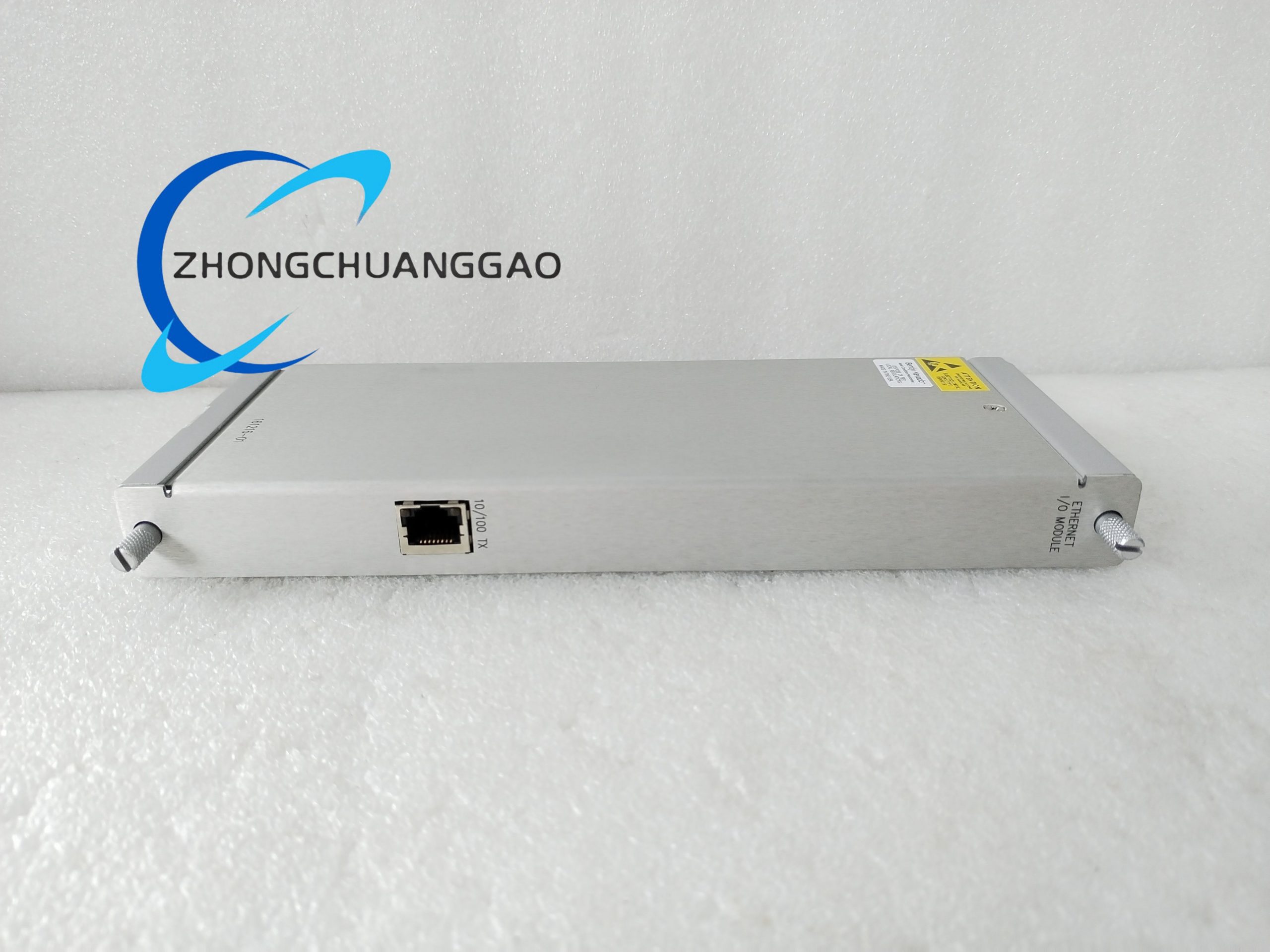

Bently Nevada 161216-01 Ethernet 10BASE-T/100BASE-TX I/O Module - Image 2
Click to enlarge
Bently Nevada 161216-01 Ethernet 10BASE-T/100BASE-TX I/O Module
Bently Nevada 161216-01 Ethernet 10BASE-T/100BASE-TX I/O Module - Image 2
Bently Nevada 159840-01 Acceleration Interface Module
Bently Nevada 159840-01 Acceleration Interface Module
Back to products
Bently Nevada 125680-01 3300 XL Eddy Current Probe Extension Cable
Bently Nevada 125680-01 3300 XL Eddy Current Probe Extension Cable

Bently Nevada 161216-01 Ethernet 10BASE-T/100BASE-TX I/O Module

Technical Specifications

  • Manufacturer: Bently Nevada
  • Product Type: Ethernet 10BASE-T/100BASE-TX I/O Module
  • Electrical Parameters:
    • Operating Voltage: 220 V
    • Output Frequency: 50 kHz
    • Communication Interface: Ethernet 10BASE-T/100BASE-TX
  • Data Handling:
    • Supported Data Types: Producer exchange (rack, module, channel, data value status; float data values; float setpoints); Consumer exchange (group reset, group trip multiply, group alarm inhibit, group special alarm inhibit)
    • Signal Compatibility: Current signals, voltage signals, and other industrial signal types
  • Environmental Ratings:
    • Operating Temperature: -30°C to +65°C (-22°F to +150°F)
    • Storage Temperature: -40°C to +85°C (-40°F to +185°F)
    • Humidity Resistance: 95% non-condensing
Category:
Description
  • Physical & Mechanical Properties:
    • Dimensions (Height x Width x Depth): 241.3 mm x 24.4 mm x 99.1 mm (9.50 in x 0.96 in x 3.90 in)
    • Weight: 0.39 kg (0.85 lbs)
  • Certifications: CE, UL approved

Functional Features

  • Ethernet Connectivity: Supports 10BASE-T/100BASE-TX Ethernet communication, enabling fast and reliable data transmission between field devices and control systems.
  • Multi-Channel Signal Handling: Features multiple input channels to accommodate signals from various sensors, actuators, and industrial equipment.
  • Signal Conversion & Processing: Converts raw analog/digital signals from field devices into computer-readable binary code for efficient data processing and analysis.
  • Programmability: Allows customization and configuration via compatible programming tools and languages to meet specific application requirements.
  • Status Monitoring: Front-panel LED indicators (OK LED, TX/RX LED) provide real-time visibility of operational status and communication activity.
  • Fault Protection: Incorporates overload protection, short-circuit protection, and other fault detection mechanisms to safeguard the module and connected equipment.
  • Rugged Industrial Design: Constructed with premium materials to resist temperature fluctuations, humidity, and mechanical vibrations in harsh industrial settings.
  • Easy Installation & Maintenance: Designed for straightforward integration with existing systems and minimal configuration, reducing setup time and operational downtime.

Application Scenarios

  • Power Generation: Integrates into turbine, generator, and auxiliary equipment monitoring systems to enable real-time data collection and machinery protection.
  • Oil & Gas Industry: Used in pipeline systems, pumps, and compressors to monitor operational parameters and ensure process safety and stability.
  • Manufacturing: Supports production line automation by connecting sensors and actuators to control systems, optimizing process efficiency and quality control.
  • Petrochemical Plants: Monitors critical machinery health to prevent unexpected failures and minimize production disruptions.
  • Industrial Automation: Enhances control systems for conveyors, processing equipment, and industrial pumps through reliable data transmission and signal processing.
  • Machinery Protection Systems: Serves as a core component in Bently Nevada monitoring systems, providing essential data for predictive maintenance and equipment health management.
