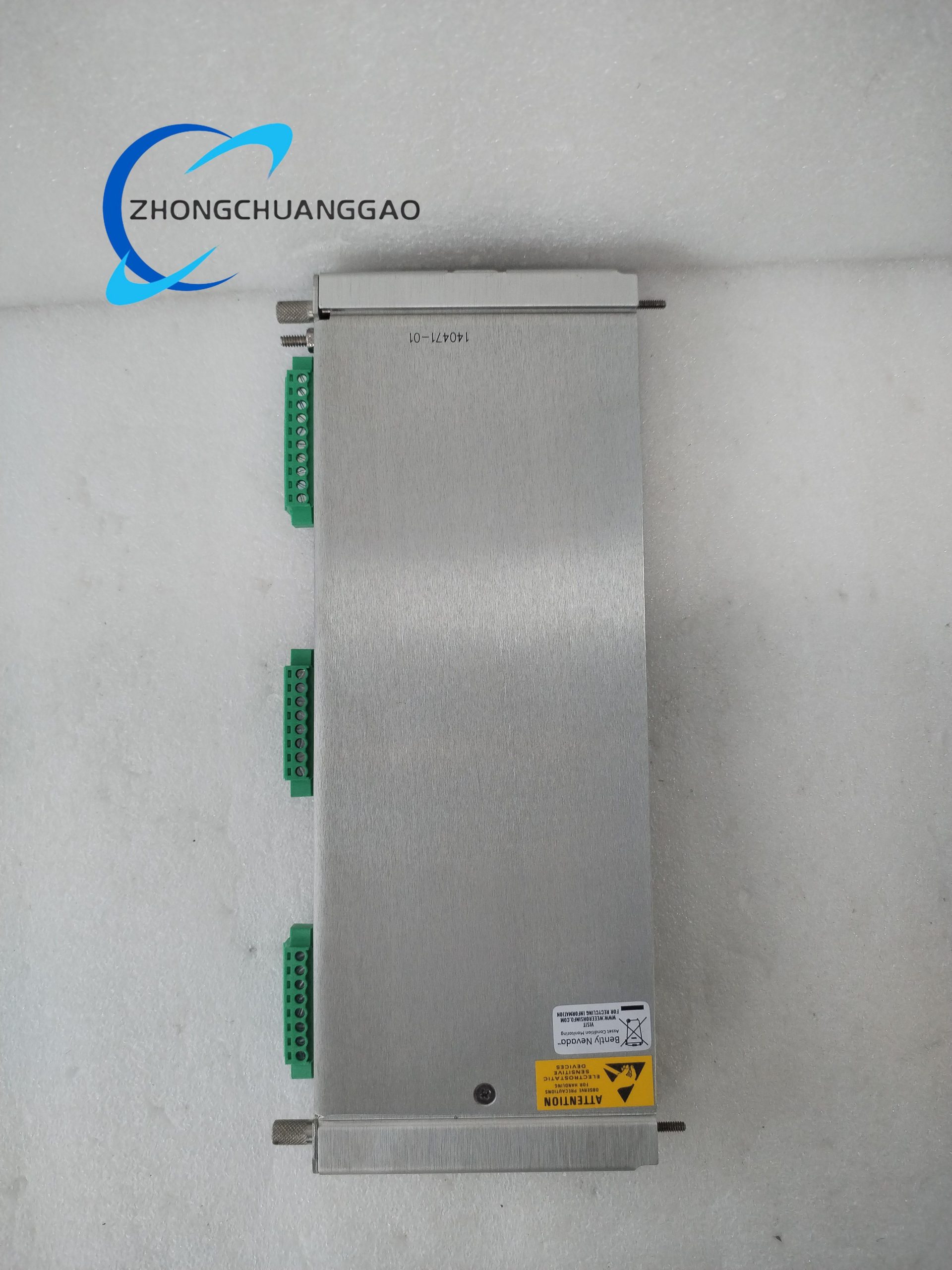

Bently Nevada 140471-01 Proximitor® Signal Conditioner - Image 1
Bently Nevada 140471-01 Proximitor® Signal Conditioner - Image 2
Click to enlarge
Bently Nevada 140471-01 Proximitor® Signal Conditioner
Bently Nevada 140471-01 Proximitor® Signal Conditioner - Image 2
Bently 136188-02 Series Communication Gateway Module
Bently 136188-02 Series Communication Gateway Module
Back to products

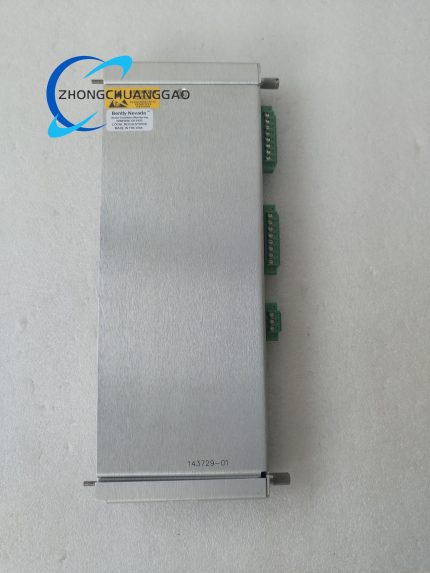

Bently Nevada 143729-01 3500/42 Proximitor
Bently Nevada 143729-01 3500/42 Proximitor

Bently Nevada 140471-01 Proximitor® Signal Conditioner

Technical Specifications

  • Manufacturer: Bently Nevada (Baker Hughes)
  • Product Type: Proximitor® Signal Conditioner (Eddy Current Signal Processing Module)
  • Series Compatibility: 3300 XL Eddy Current Sensor System; 3500 Series Monitoring Racks
  • Electrical Parameters:
    • Power Supply: 18–30 VDC (typical 24 VDC)
    • Power Consumption: ≤1.2 W
    • Input Compatibility: 3300 XL eddy current probes (e.g., 330180-50-05, 330180-80-00)
    • Output Signal: Dual outputs – 4–20 mA (analog) + RS485 (digital for diagnostics)
    • Output Load Capacity: ≤750 Ω (for 4–20 mA output)
    • Frequency Response: 0 Hz to 15 kHz (-3 dB)
    • Linear Range: 0 to 2.5 mm (when paired with 3300 XL 8mm probes)
    • Linear Error: ±0.8% of full scale
    • Temperature Drift: ≤0.04% of full scale per °C
Category:
Description
  • Environmental Ratings:
    • Operating Temperature: -30°C to +85°C
    • Storage Temperature: -40°C to +90°C
    • Relative Humidity: 0% to 95% (non-condensing)
    • Protection Rating: IP65
    • Hazardous Area Certifications: ATEX II 2G Ex d IIC T6 Ga; IECEx Ex d IIC T6 Ga; FM Class I, Div 1, Groups A–D
  • Physical & Mechanical Properties:
    • Housing Material: Die-cast aluminum (anti-corrosion powder coating)
    • Electrical Connection: M12 male connector (for power/signal) + BNC (for probe input)
    • Mounting: DIN rail (35mm) or panel-mountable
    • Weight: 0.35 kg

Functional Features

  • Optimized Probe Pairing: Exclusively designed for 3300 XL eddy current probes, ensuring maximum signal integrity and measurement accuracy.
  • Dual Output Configuration: Provides both 4–20 mA analog output (for control systems) and RS485 digital output (for remote diagnostics), enhancing data versatility.
  • Precision Signal Conditioning: Incorporates low-noise amplifiers and digital filtering to reduce electrical interference, delivering linear error as low as ±0.8% of full scale.
  • Remote Diagnostics: Supports RS485 communication for real-time monitoring of module health, probe gap voltage, and cable integrity, enabling predictive maintenance of the sensor system.
  • Harsh Environment Resilience: IP65 protection and wide temperature range (-30°C to +85°C) ensure reliable operation in dusty, humid, or high-vibration industrial settings.
  • Hazardous Area Compliance: Explosion-proof design (ATEX/IECEx/FM certified) allows safe installation in flammable gas or dust environments (e.g., refineries, chemical plants).
  • Easy Integration: DIN rail/panel-mount design and standardized connectors simplify installation into existing 3500 series racks or third-party control cabinets.
  • Overvoltage Protection: Built-in surge protection for power and signal lines, safeguarding the module and connected equipment from electrical transients.

Application Scenarios

  • Power Generation: Monitors shaft displacement and vibration in steam turbines, gas turbines, and generators, preventing rotor rub or misalignment damage.
  • Oil and Gas Industry: Used in upstream (drilling rigs), midstream (pipeline compressors), and downstream (refinery pumps) operations, ensuring safety in hazardous zones.
  • Chemical Processing: Protects agitators, centrifuges, and reactor mixers in corrosive, high-humidity environments, complying with strict process safety standards.
  • Steel Manufacturing: Tracks roll neck vibration and shaft position in hot rolling mills, withstanding high ambient temperatures and heavy mechanical stress.
  • Marine Engineering: Monitors propulsion system shafts and auxiliary pump bearings on ships/offshore platforms, resisting saltwater corrosion and marine vibration.
  • Heavy Industry: Supports condition monitoring of mining crushers, cement mill drives, and metallurgical fans, minimizing downtime in continuous-production processes.
  • Aerospace & Defense: Used in ground-based gas turbine test stands, delivering high-precision data for engine performance validation and fault analysis.
