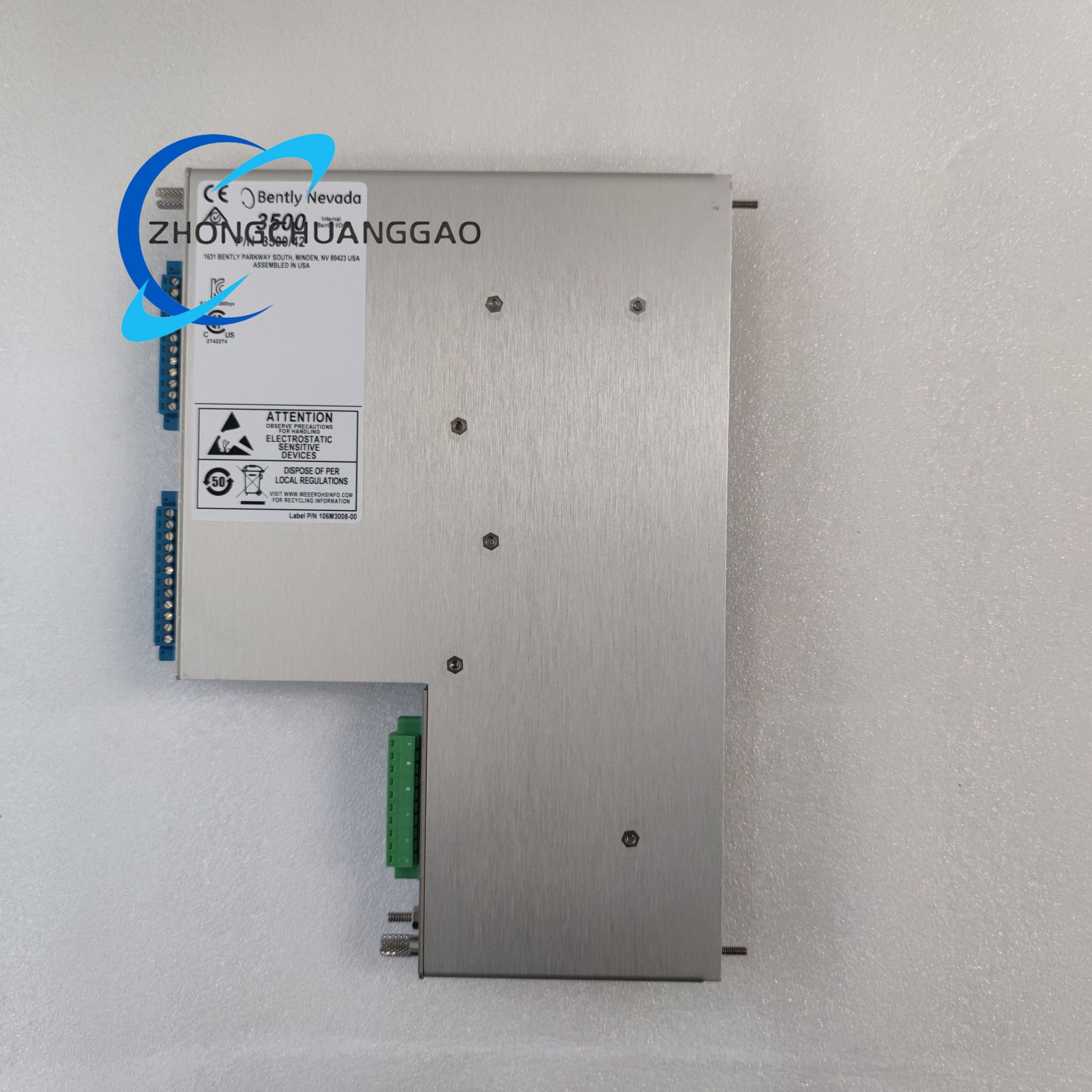

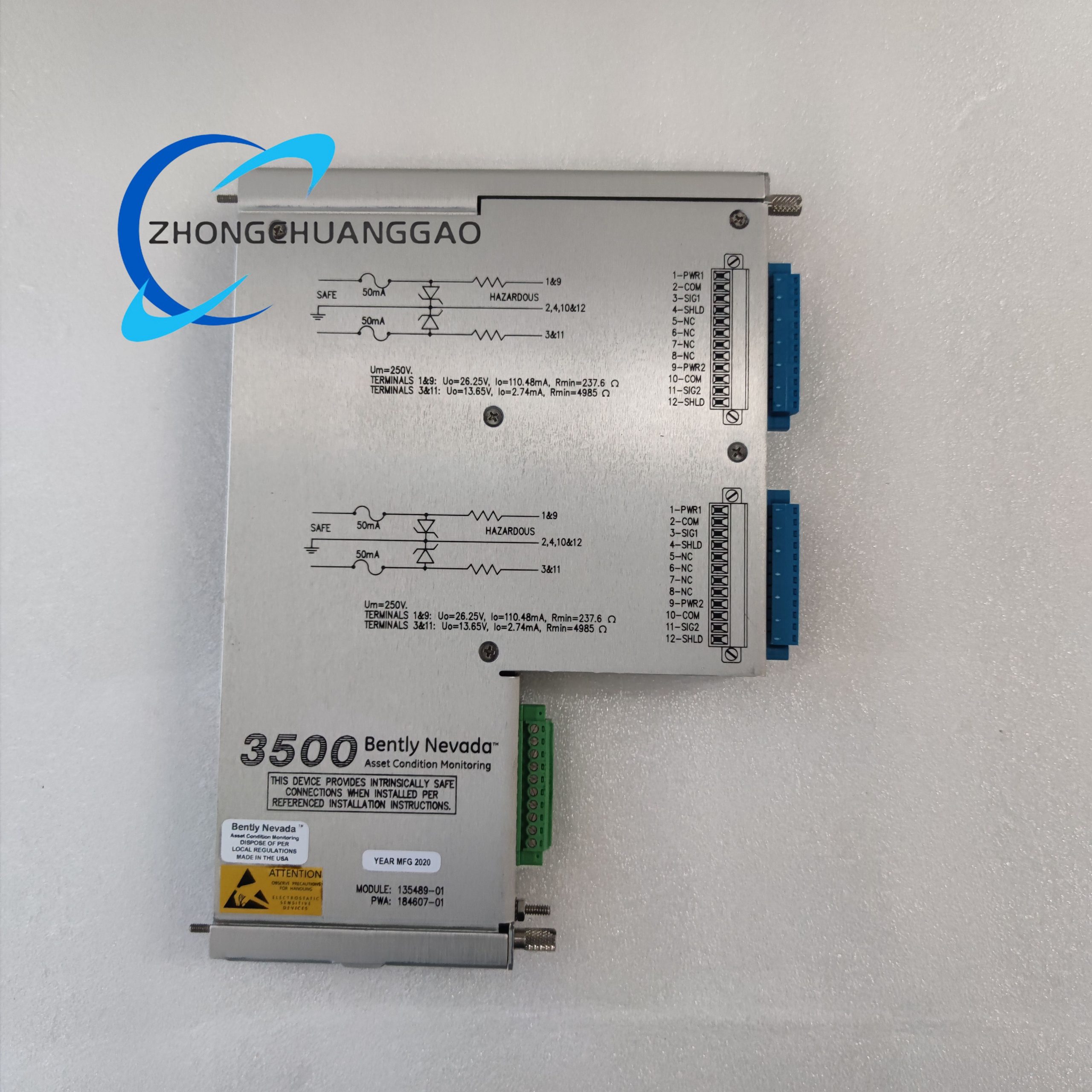

Bently Nevada 135489-01 4-Channel Vibration Monitoring I/O Module

• Environmental Ratings:
  • Operating Temperature: -40°C to +85°C
  • Storage Temperature: Compatible with industrial wide-range requirements
  • Humidity Range: 0% to 95% RH (non-condensing)
  • Protection Level: IP67
  • Certifications: Intrinsically safe certification; compliant with global industrial safety standards
• Physical & Mechanical Properties:
  • Dimensions: Multiple configurations available – 50mm x 30mm x 15mm; 7.0cm x 13.3cm x 13.3cm; 2.5cm x 18.5cm x 14cm
  • Weight: 50g (compact version); 0.7kg; 0.96kg
  • Mounting Type: DIN rail installation (easy and fast setup)
  • Construction: Sealed, industrial-grade rugged materials

Functional Features

• 4-Channel Simultaneous Monitoring: Supports multi-point vibration data collection, enabling synchronous monitoring of multiple devices or different positions on a single machine.
• High-Precision Data Acquisition: Equipped with a high-precision A/D converter, delivering 24-bit resolution and accurate vibration measurements for dynamic analysis of high-speed rotating equipment.
• Multi-Sensor Compatibility: Works with accelerometers, velocity sensors, displacement sensors, and temperature-vibration integrated sensors, offering flexibility for diverse application needs.
• Intrinsic Safety & Hazard Protection: Internal barrier design provides explosion protection and electrical hazard isolation, ensuring safe operation in hazardous environments.
• Intelligent Alarm & Control: Built-in alarm logic with customizable threshold settings; supports up to 8 relay outputs (when paired with XM-160 protection module) for emergency shutdown.
• Seamless System Integration: Compatible with Bently Nevada monitoring systems and third-party PLC/DCS platforms, enabling data sharing and collaborative control.
• Harsh Environment Adaptability: Sealed construction, IP67 protection, and wide temperature range tolerance resist dust, moisture, and extreme conditions.
• Easy Installation & Maintenance: Compact form factor and DIN rail mounting simplify installation; rugged design reduces long-term maintenance costs.

Application Scenarios

• Power Generation: Monitors vibration in turbines, generators, and auxiliary rotating equipment; supports wind turbine blade and gearbox vibration analysis to prevent bearing failures.
• Oil and Gas Industry: Used in pumps, compressors, and drilling machinery in upstream, midstream, and downstream operations; ideal for hazardous zone applications requiring intrinsic safety.
• Chemical & Petrochemical: Monitors reaction vessels, agitators, and centrifuges; enables multi-parameter collaborative monitoring with temperature sensors to ensure process safety.
• Manufacturing: Applied to production line equipment such as motors, gearboxes, and compressors; optimizes maintenance cycles through vibration trend analysis.
• Steel & Metals Production: Monitors rolling mills, fans, and pumps in continuous production processes; minimizes downtime in high-demand manufacturing environments.
• Aerospace & Defense: Supports vibration monitoring of ground equipment and aircraft auxiliary machinery; ensures reliability in critical mission scenarios.
• Marine & Rail: Monitors shipboard pumps, motors, and rail locomotive components; withstands harsh maritime and rail operating conditions.
• Pulp & Paper/Cement: Used in processing machinery and rotating equipment; enhances operational efficiency and reduces maintenance costs in heavy-industry settings.
