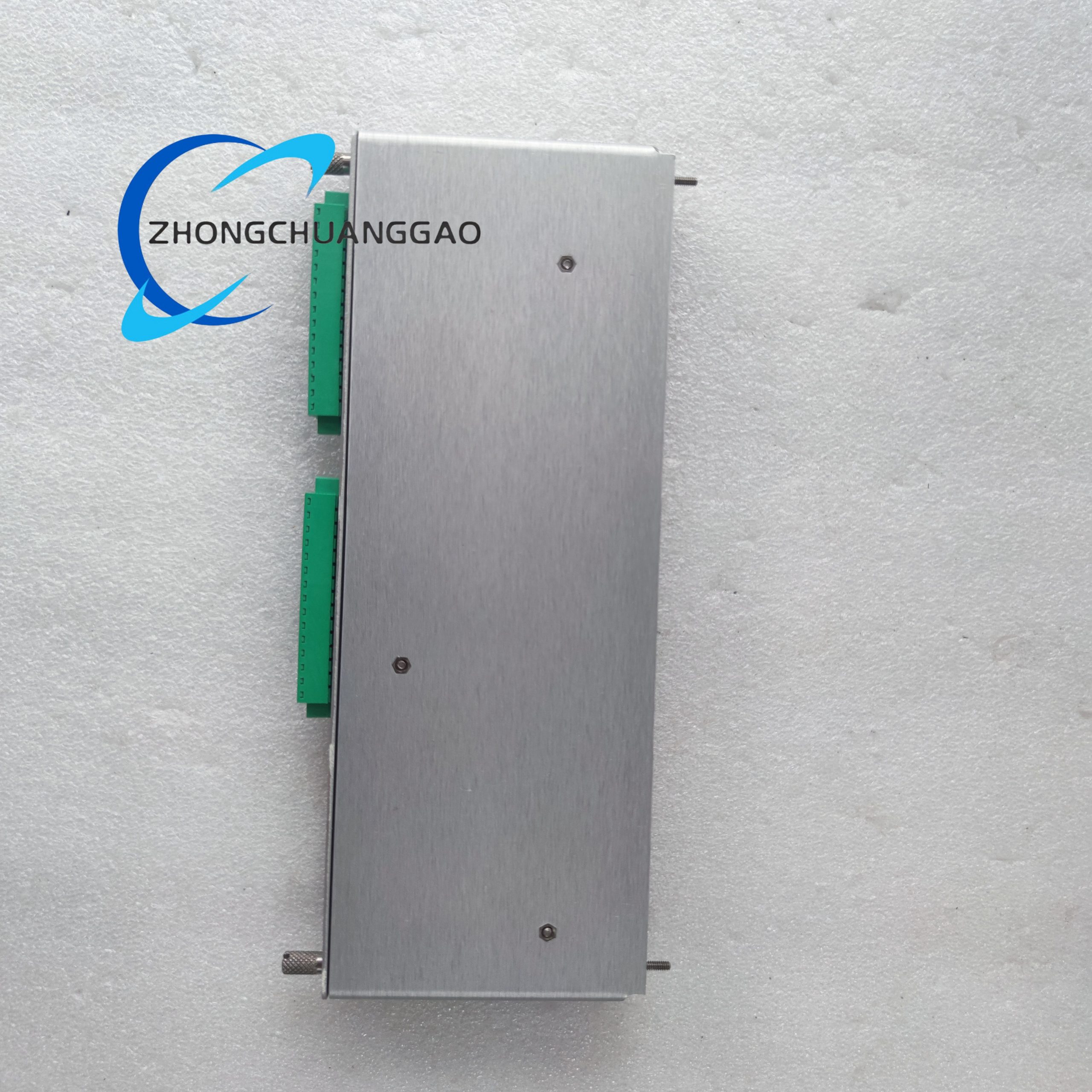

Bently Nevada 133819-01 RTD/TC Temperature Input/Output Module - Image 1

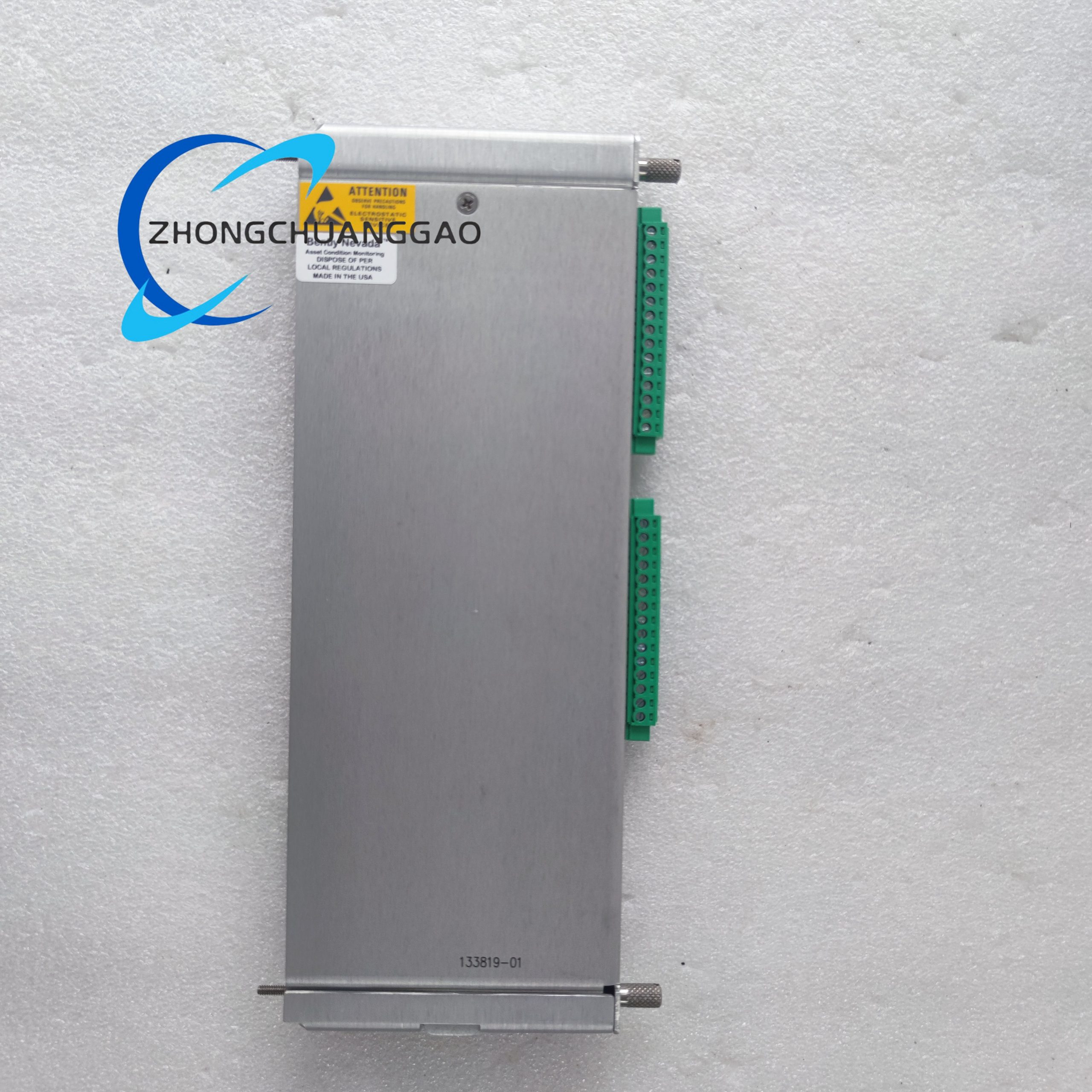

Bently Nevada 133819-01 RTD/TC Temperature Input/Output Module - Image 2
Click to enlarge
Bently Nevada 133819-01 RTD/TC Temperature Input/Output Module
Bently Nevada 133819-01 RTD/TC Temperature Input/Output Module - Image 2
Bently Nevada 133396-01 3500 Series Precision Overspeed Detection I/O Module
Bently Nevada 133396-01 3500 Series Precision Overspeed Detection I/O Module
Back to products
Bently Nevada 133819-02 Proximitor® Preamp for 3300 XL 8mm Eddy Current Sensor System
Bently Nevada 133819-02 Proximitor® Preamp for 3300 XL 8mm Eddy Current Sensor System

Bently Nevada 133819-01 RTD/TC Temperature Input/Output Module

Technical Specifications

  • Manufacturer: Bently Nevada
  • Product Type: RTD/TC Temperature Input/Output Module
  • Series Compatibility: 3500 Series Machinery Protection and Monitoring System
  • Electrical Parameters:
    • Power supply: 24V DC (supplied via 3500 series rack)
    • Input types: RTD (2/3/4-wire, including PT 100, NI 120) and thermocouples (Type E, J, K)
    • Output signals: Configurable analog outputs; digital outputs via supported communication protocols
    • Measurement accuracy: ±0.13%
    • Temperature measurement range: -40°C to +260°C (via compatible sensors)
    • Communication protocols: Modbus RTU, Profibus DP, HART, DeviceNet, CANopen
  • Environmental Ratings:
    • Operating temperature: -40°C to +85°C
    • Relative humidity: 5% to 95% (non-condensing)
    • Protection rating: IP67
Category:
Description
  • Physical & Mechanical Properties:
    • Dimensions: 2.3 cm × 11 cm × 24.1 cm
    • Weight: 0.4 kg
    • Installation type: Rack-mountable (compatible with 3500 series racks)
    • Design: Hot-swappable
  • Compliance: API 670, SIL 2 (functional safety)

Functional Features

  • Multi-Sensor Compatibility: Supports both RTD and thermocouple inputs, accommodating mixed sensor configurations for flexible temperature monitoring.
  • High Measurement Accuracy: Incorporates advanced signal conditioning technology to deliver precise temperature data with a measurement accuracy of ±0.13%.
  • Redundant Configuration Support: Enables triple modular redundant setups with voting mechanisms to eliminate single-point failures and enhance system reliability.
  • Hot-Swappable Design: Allows maintenance and replacement without shutting down the entire system, minimizing operational downtime.
  • Versatile Communication: Integrates with multiple protocols including Modbus, Profibus DP, HART, and DeviceNet for seamless connection with various automation systems.
  • Built-In Diagnostics: Features self-test functionality and LED status indicators (OK, bypass, communication) for easy system verification and troubleshooting.
  • Harsh Environment Resilience: Operates within a wide temperature range and IP67 protection rating, withstanding extreme industrial conditions.
  • Configurable Alarms: Supports user-programmed alarm thresholds for warning and danger conditions, enabling proactive fault response.

Application Scenarios

  • Power Generation: Monitors temperature of turbines, generators, and auxiliary equipment in thermal, hydro, and renewable power plants, preventing overheating and ensuring stable energy production.
  • Oil and Gas Industry: Tracks temperature of compressors, pumps, drilling rigs, and refinery machinery in upstream, midstream, and downstream operations, complying with industry safety standards.
  • Chemical Processing: Provides critical temperature monitoring for reactors, agitators, and process equipment, mitigating risks of thermal runaway and ensuring process integrity.
  • Manufacturing Sector: Monitors temperature of motors, conveyors, and production line machinery in automotive, metal processing, and electronics manufacturing facilities.
  • Water Treatment: Tracks temperature of pumps, mixers, and treatment equipment to maintain optimal operating conditions and process efficiency.
  • Paper Industry: Monitors temperature of rollers, dryers, and processing machinery, ensuring product quality and preventing equipment damage from overheating.
  • Heavy Industry: Supports temperature monitoring for mining equipment, metallurgical machinery, and construction machinery in high-demand, harsh environments.
