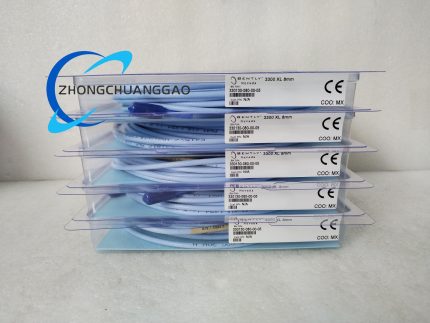

Bently 330130-080-00-00

Technical Specifications

• Product Type: 3300 XL series standard extension cable
• Manufacturer: Bently Nevada
• Origin: USA
• Cable Length: 8.0 meters (26.2 feet)
• Weight: 0.272 kg (0.6 lb)
• Insulation Material: FEP (standard), PFA (extended temperature variant)
• Operating Temperature Range (Standard): –52 °C to +177 °C (–62 °F to +350 °F)
• Operating Temperature Range (ETR Variant): –52 °C to +260 °C (–62 °F to +500 °F)
• Core Resistance: 1.76 ± 0.26 Ω
• Outer Conductor Resistance: 0.53 ± 0.11 Ω
• Capacitance: 69.9 pF/m (21.3 pF/ft)
• Voltage Range: –17.5 VDC to –26 VDC
• Connector Type: Gold-plated Click Loc miniature coaxial
• Maximum Connector Torque: 0.565 N·m (5 in·lbf)
• Minimum Bend Radius: 25.4 mm (1.0 in)
• Tensile Strength: 330 N (75 lbf)
• Humidity Resistance: 93% for 56 days
• Maximum Wiring Distance: 305 meters
• Signal Loss: Less than 3% at maximum distance
• UV Resistance: Yes, suitable for outdoor use
• Certifications: Compliant with industrial safety standards
• Package Dimensions: 30 × 30 × 6 cm

Functional Features

• Patented Cable Loc technology delivers 330 N tensile strength, ensuring secure connections and resistance to mechanical stress
• Gold-plated Click Loc connectors enable tool-free, secure installation while enhancing conductivity and corrosion resistance
• FEP/PFA insulation minimizes signal loss, maintaining high-integrity data transmission even over the full 8-meter length and maximum wiring distance
• Armored design and robust construction provide durability against harsh industrial conditions, including moisture, abrasion, and chemical exposure
• Wide operating temperature range (standard and extended variants) supports performance in extreme heat and cold environments
• High EMI/RFI immunity ensures reliable operation in electrically noisy industrial settings
• Backward compatibility with non-XL 3300 systems allows seamless integration into existing infrastructure without full system upgrades
• Optional Fluid Loc feature prevents oil leaks, expanding suitability for high-oil environments
• Interchangeable design fits seamlessly with other 3300 XL and legacy 3300 components
• UV resistance enables safe outdoor deployment in various industrial setups

Application Scenarios

• Turbomachinery Monitoring: Used for vibration monitoring and shaft position sensing in gas turbines, steam turbines, and compressors, leveraging high-temperature resistance and precise signal transmission
• Power Generation: Deployed in thermal, nuclear, and hydropower plants to support machinery protection systems and predictive maintenance of generators and rotating equipment
• Oil and Gas Industry: Applied in refineries, drilling rigs, and pipeline infrastructure, where resistance to harsh chemicals, moisture, and extreme temperatures ensures reliable performance
• Petrochemical Plants: Utilized for critical equipment monitoring in hazardous zones, complying with safety standards for explosive or corrosive environments
• Manufacturing Facilities: Integrated into production line machinery, motors, and pumps to monitor vibration and rotational speed, minimizing downtime and maintenance costs
• Hazardous Environments: Suitable for use in zones with explosive atmospheres or corrosive substances, supported by robust construction and compliance with safety certifications
• Legacy System Upgrades: Compatible with non-XL 3300 5mm and 8mm systems, enabling cost-effective upgrades while preserving existing hardware investments
• Outdoor Industrial Setups: UV-resistant design allows deployment in outdoor equipment monitoring applications, such as solar power plants or outdoor pumping stations
• Shaft Position and Keyphasor Acquisition: Facilitates accurate measurement of shaft position and keyphasor signals for rotational machinery control and health diagnostics
