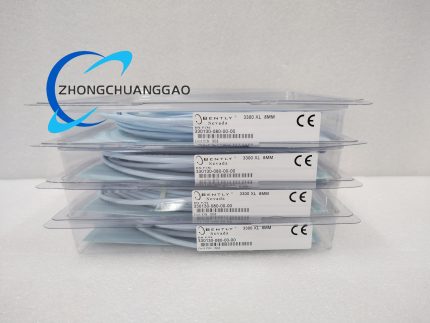

Bently 330130-080-00-00
Bently 330130-080-00-00

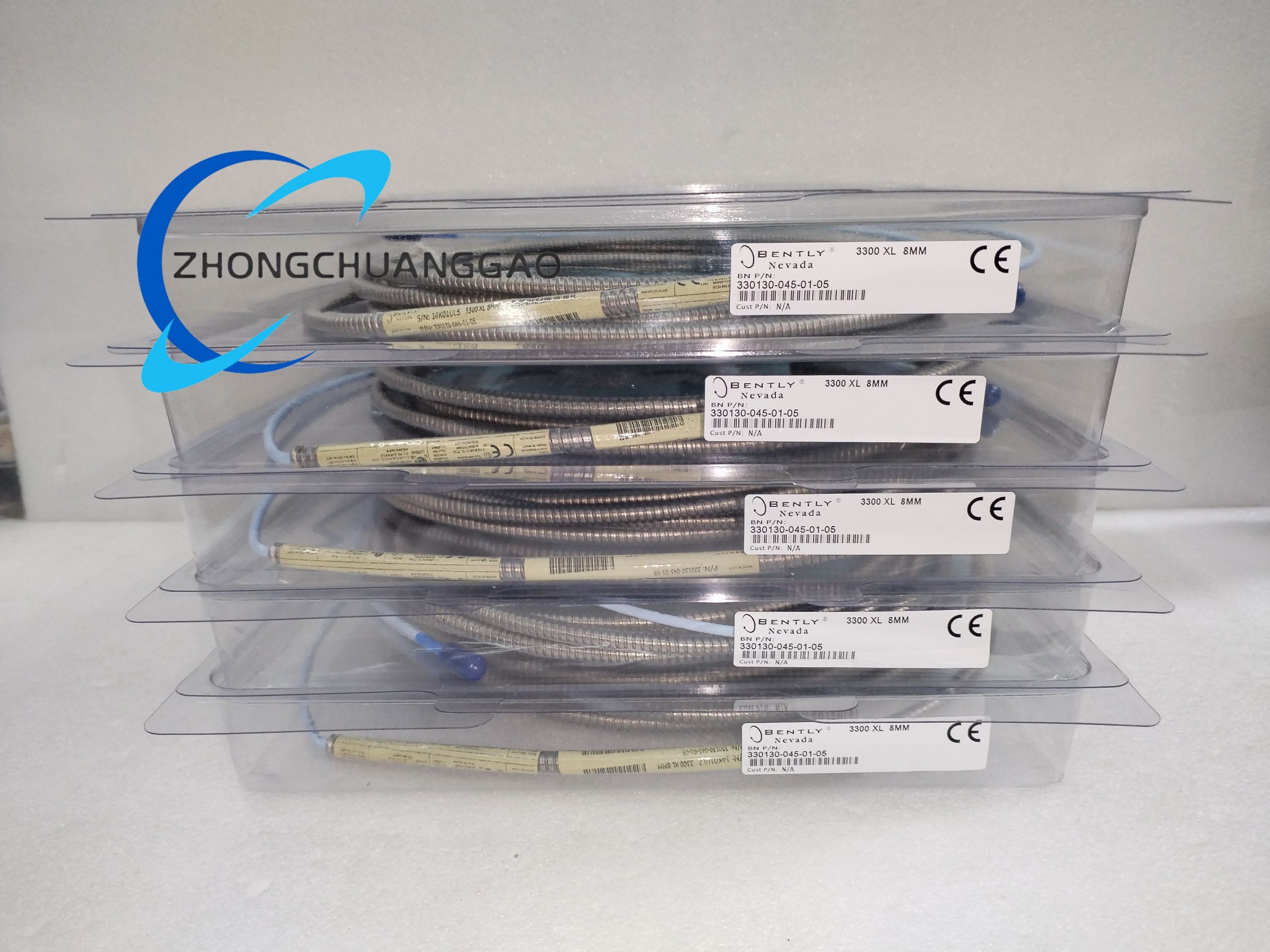

Bently 330130-045-01-CN

The product is a high-performance extension cable specifically developed for Bently Nevada’s 3300 XL 8 mm proximity transducer system, serving as a key connectivity component in industrial machinery condition monitoring. It establishes seamless connections between 3300 XL vibration sensors and monitoring equipment, enabling reliable transmission of vibration, position, and health data over extended distances without compromising signal integrity. This supports real-time and precise machinery health monitoring, facilitating predictive maintenance strategies that prevent unexpected equipment failures and minimize operational downtime.
Crafted from high-grade stainless steel with Teflon insulation and an injection-molded casing, the cable features a robust construction designed to withstand harsh industrial conditions, including extreme temperatures, moisture, and mechanical wear. It incorporates gold-plated connectors for enhanced conductivity and durability, while the non-contact installation method ensures effortless integration without disrupting ongoing operations. Fully compatible with Bently Nevada’s 3300 XL series systems, the cable maintains consistency with existing setups and adheres to international safety and quality standards, making it a trusted solution for critical industrial monitoring applications.
Category:
Description

Technical Specifications

  • Product Type: 3300 XL series extension cable
  • Material: High-grade stainless steel with Teflon insulation
  • Cable Length: 5 meters
  • Operating Temperature Range: -40 °C to +150 °C
  • Sensing Range: 2 mm
  • Sensitivity: 1 μm
  • Output Type: Voltage
  • Connector Type: Gold-plated termination connectors
  • Environmental Protection: IP 67 rated (dust and water resistance)
  • Data Transmission Rate: Up to 10 Mbps
  • Frequency Compatibility: Up to 50 kHz
  • Package/Casing: Injection molding
  • Installation Type: Non-contact
  • Weight: 0.46 kg
  • Dimensions (Package): 27 cm x 27 cm x 2.5 cm
  • Certifications: CE, UL compliant

Functional Features

  • Teflon insulation minimizes signal loss, ensuring high-integrity data transmission over the full cable length
  • High-grade stainless steel and injection-molded casing provide exceptional durability against mechanical wear, moisture, and corrosion
  • Gold-plated connectors enhance electrical conductivity, reduce wear and tear, and ensure long-term reliable connections
  • Wide operating temperature range enables consistent performance in extreme heat and cold industrial environments
  • Non-contact installation allows for quick and effortless setup without disrupting active industrial operations
  • IP 67 rating delivers robust protection against dust and water, expanding suitability for harsh environmental conditions
  • High sensitivity and precise sensing range enable detection of subtle machinery vibrations, supporting accurate health diagnostics
  • Seamless compatibility with 3300 XL series systems ensures easy integration into existing Bently Nevada monitoring setups
  • Compliance with international safety standards guarantees adherence to industrial safety and quality requirements

Application Scenarios

  • Power Generation: Used in thermal, nuclear, and hydropower plants to monitor steam turbines and generators, leveraging high-temperature resistance and precise data transmission
  • Petrochemical Industry: Applied in refineries and chemical processing facilities, where resistance to harsh chemicals and moisture ensures reliable performance
  • Industrial Machinery Monitoring: Integrated into heavy machinery, motors, and compressors across manufacturing plants for real-time health monitoring and predictive maintenance
  • Turbine Systems: Specialized for steam turbine condition monitoring, delivering accurate vibration data to prevent critical failures
  • Automotive Manufacturing: Utilized in production line machinery to ensure operational stability and minimize downtime
  • Harsh Environment Operations: Deployed in industrial settings with extreme temperatures, dust, or water exposure, supported by IP 67 protection and robust construction
  • Legacy System Upgrades: Compatible with existing Bently Nevada 3300 XL systems, enabling cost-effective upgrades without full system replacement
  • Critical Equipment Diagnostics: Used in safety-critical industrial applications where precise vibration measurement and reliable data transmission are essential for operational safety
