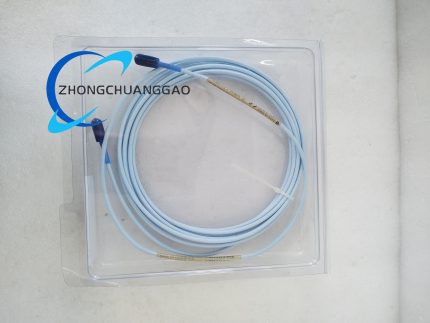

Bently 330130-040-02-00

Technical Specifications

• Cable Type: 75 Ω triaxial cable with standard connector protectors
• Cable Length: 4.0 meters (13.1 feet)
• Insulation Material: Fluoroethylene propylene (FEP)
• Connector Type: Gold-plated for enhanced conductivity and corrosion resistance
• Operating Temperature Range: -51°C to +177°C (-60°F to +351°F)
• Storage Temperature Range: -51°C to +177°C (-60°F to +351°F)
• Power Supply Requirement: -17.5 VDC to -26 VDC (non-incendive circuit); -23 VDC to -26 VDC with barriers
• Maximum Current Consumption: 12 mA
• Capacitance: 69.9 pF/m (21.3 pF/ft) (typical)
• Output Resistance: 50 Ω
• Linear Measurement Range: 0.25 mm to 2.3 mm (10 mils to 90 mils)
• Field Wiring Compatibility: 0.2 to 1.5 mm² (16 to 24 AWG); recommended 3-conductor shielded triad cable with tinned wiring
• Maximum Field Wiring Length: 305 meters (1,000 feet)
• Environmental Protection Level: IP67
• Weight: 0.45 kg (net weight); 1.5 kg (shipping weight)
• Country of Origin: USA
• Warranty Period: 12 months
• Compatibility: Bently Nevada 3300 XL 8 mm proximity probes, proximitors, and 3300 series monitoring systems

Functional Features

• Triaxial FEP insulation and shielded design ensure superior resistance to electromagnetic interference, maintaining signal integrity and minimizing data loss over extended distances
• Tip loc molding and cable loc construction deliver 330 N (75 lbf) pull strength, reinforcing connection stability and resistance to physical stress or accidental damage
• Optional fluid loc feature prevents oil and liquid leakage through the cable, enhancing protection in fluid-exposed industrial environments
• Gold-plated connectors boost conductivity, resist corrosion, and ensure long-term reliable connectivity with 3300 XL series components
• Wide operating temperature range enables stable performance in extreme hot or cold industrial settings without degradation
• Standard connector protectors shield connection points from environmental hazards, dust, and moisture, extending service life
• Simple installation process requires no additional brackets or specialized tools, facilitating quick deployment and maintenance
• Lightweight and compact design allows easy integration into existing systems without compromising spatial efficiency or functionality
• Compliance with industrial durability standards ensures resilience against vibration, abrasion, and harsh operating conditions

Application Scenarios

• Power Generation: Used in thermal, hydropower, and nuclear plants to connect proximity probes with monitoring units for steam turbines, generators, and auxiliary rotating equipment
• Petrochemical & Oil Refining: Facilitates sensor connectivity in refineries and chemical processing facilities, where resistance to fluids, high temperatures, and corrosive environments is critical
• Manufacturing Industry: Applied in automotive production, pulp and paper mills, and heavy machinery plants to monitor rotating components such as motors, pumps, and compressors
• Metallurgical Plants: Supports condition monitoring of rolling mills, blowers, and conveyors in steel and aluminum production facilities with high vibration and dust levels
• Aerospace & Defense: Integrated into industrial-grade aerospace component testing systems and defense-related machinery requiring high-reliability data transmission
• Marine & Offshore: Used in shipboard machinery and offshore drilling platforms, leveraging IP67 protection and fluid resistance to withstand harsh marine environments
• Renewable Energy: Connects sensors for wind turbine gearboxes and rotating components in wind farms, ensuring consistent monitoring in outdoor, temperature-fluctuating conditions
• Water & Wastewater Treatment: Enables vibration and position monitoring of pumps, mixers, and agitators in municipal and industrial water treatment facilities
