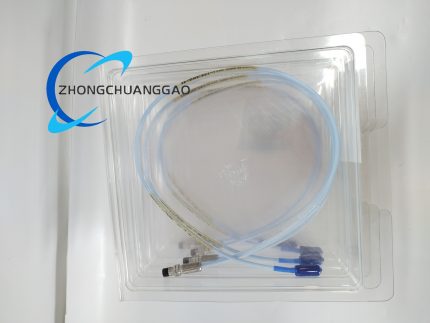

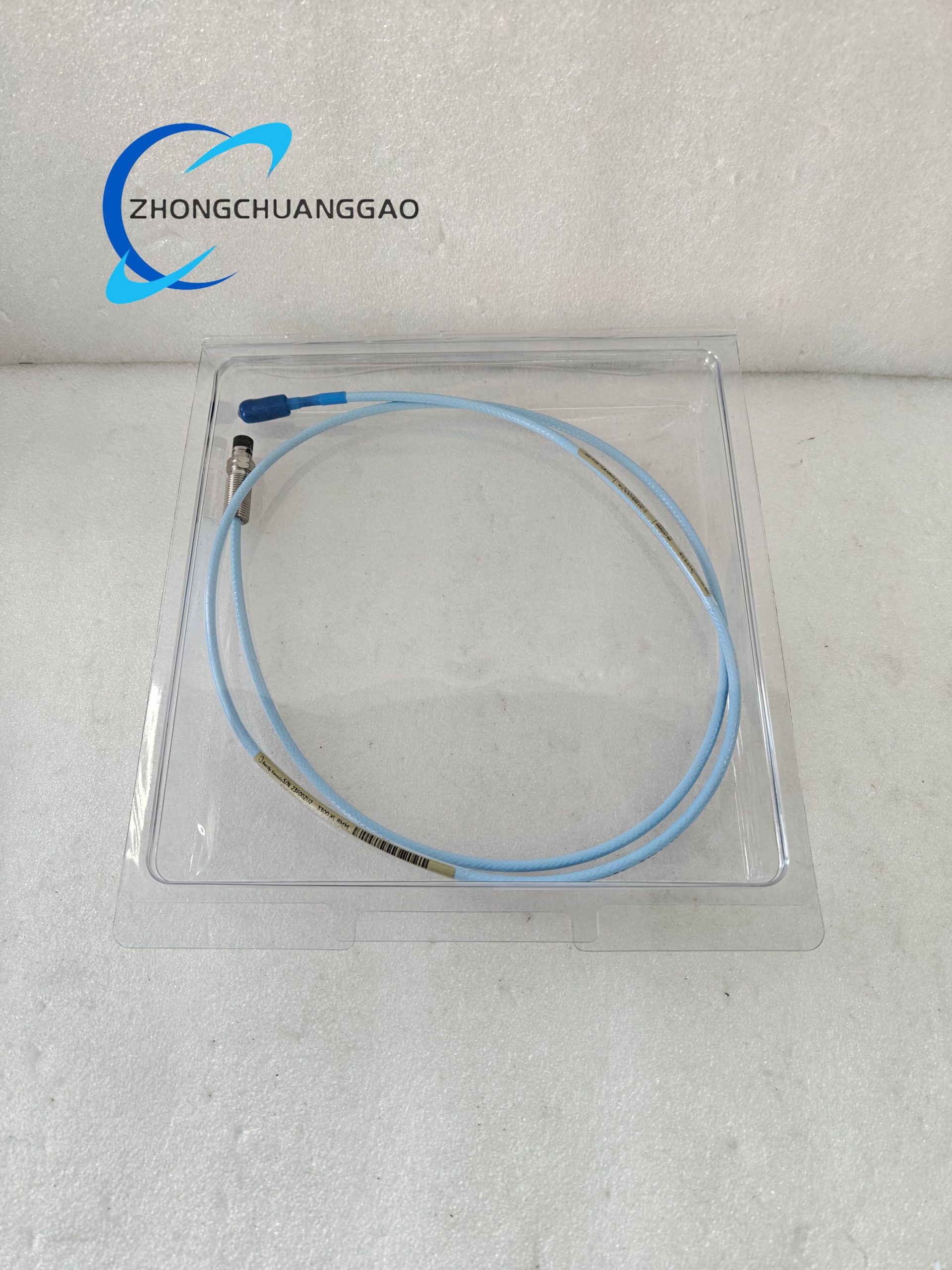

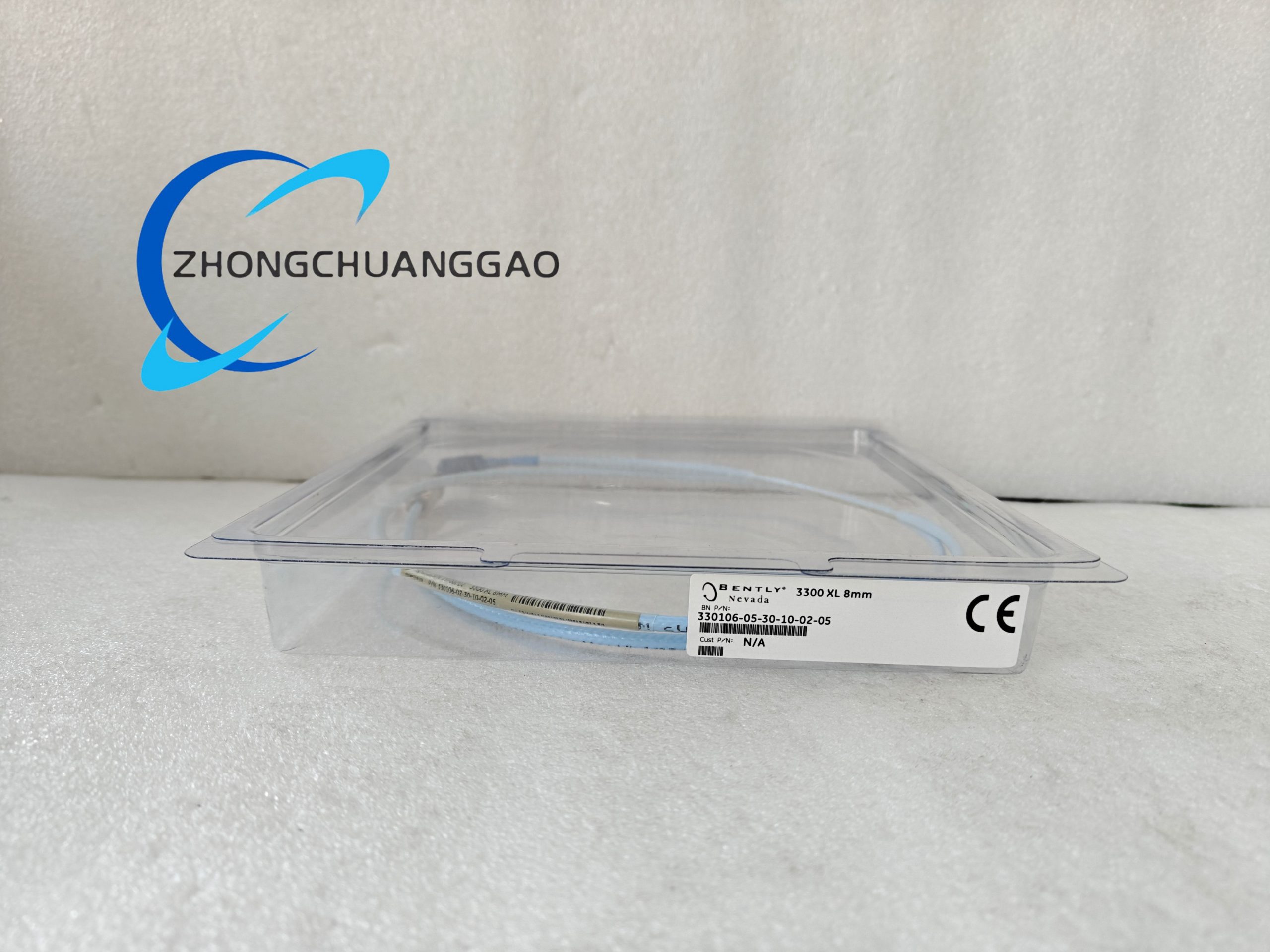

Bently 330106-05-30-10-02-05 Product Information

Technical Specifications

• Probe Type: 8mm reverse mount proximity probe (3300 XL series)
• Manufacturer: Bently Nevada (GE)
• Housing Material: Stainless steel
• Tip Material: Polyphenylene sulfide (PPS)
• Thread Size: M10 x 1 mm
• Total Length: 1.0 meter
• Overall Case Length: 50 mm
• Connector Type: Miniature Click Loc coaxial connector
• Operating Temperature Range: -40°C to +85°C
• Operating Voltage: -17.5 Vdc to -26 Vdc (without barriers); -23 Vdc to -26 Vdc (with barriers)
• Maximum Power Consumption: 12 mA
• Measurement Type: Non-contact vibration and displacement
• Agency Approvals: Multiple certifications for hazardous environments
• Resistance to Fluids: Fluid-resistant design
• Weight: 2 lbs (0.907 kg)
• Condition: Tested and verified for full functionality (when purchased as used); brand-new options available

Key Features

• Precision Non-Contact Measurement: Enables accurate monitoring of rotating machinery vibration and displacement without physical contact, avoiding wear and tear on both the probe and equipment.
• Interchangeable Design: Offers complete interchangeability with other 3300 XL series probes and cabling, supporting flexible system configuration and easy replacement.
• Robust Construction: Stainless steel housing and PPS tip material ensure durability and resistance to harsh industrial conditions, including fluid exposure and mechanical stress.
• Secure Mounting: M10 x 1 mm threading provides stable and reliable installation, preventing displacement during machinery operation for consistent performance.
• Versatile Compatibility: Seamlessly integrates with 3300 XL series proximity transducer systems and extension cables, forming a comprehensive monitoring solution.
• Wide Temperature Tolerance: Operates effectively across a broad temperature range, maintaining performance in extreme cold and heat common in industrial settings.
• Hazardous Environment Compliance: Multiple agency approvals allow safe use in high-risk applications, expanding operational versatility.
• Reliable Post-End-of-Life Support: Remains available through authorized suppliers with testing, warranty coverage, and return guarantees, ensuring long-term usability.

Application Scenarios

Core Monitoring Functions

• Vibration monitoring: Tracks radial and axial vibration to identify imbalance, misalignment, and bearing degradation in rotating equipment.
• Displacement measurement: Monitors shaft displacement and relative position to prevent mechanical collisions and ensure proper equipment alignment.
• Condition assessment: Provides real-time data to support predictive maintenance, enabling early detection of potential faults and reducing unplanned downtime.

Typical Industrial Equipment

• Steam and gas turbines: Safeguards critical rotating components by monitoring vibration and displacement to prevent catastrophic failures.
• Industrial compressors: Ensures optimal performance and extends service life through continuous condition monitoring.
• Pumps and motors: Detects early signs of wear, imbalance, or misalignment to avoid costly repairs and operational disruptions.
• Gearboxes: Monitors rotational dynamics and gear wear, supporting proactive maintenance and reducing downtime.
• Generators: Protects high-value generator systems by tracking critical vibration and displacement parameters during operation.

Industry Applications

• Power generation: Used in thermal, nuclear, and hydroelectric power plants to monitor turbines, generators, and auxiliary rotating equipment.
• Oil and gas: Suitable for upstream, midstream, and downstream operations, including pipeline compressors, pump stations, and refinery machinery.
• Manufacturing: Supports reliability in heavy manufacturing, automotive, and aerospace production lines with rotating equipment.
• Petrochemical: Ensures safety and efficiency in refineries and chemical processing plants, where equipment failure can have severe consequences.
• Industrial processing: Applied in various processing facilities to maintain the integrity of rotating machinery critical to production workflows.
