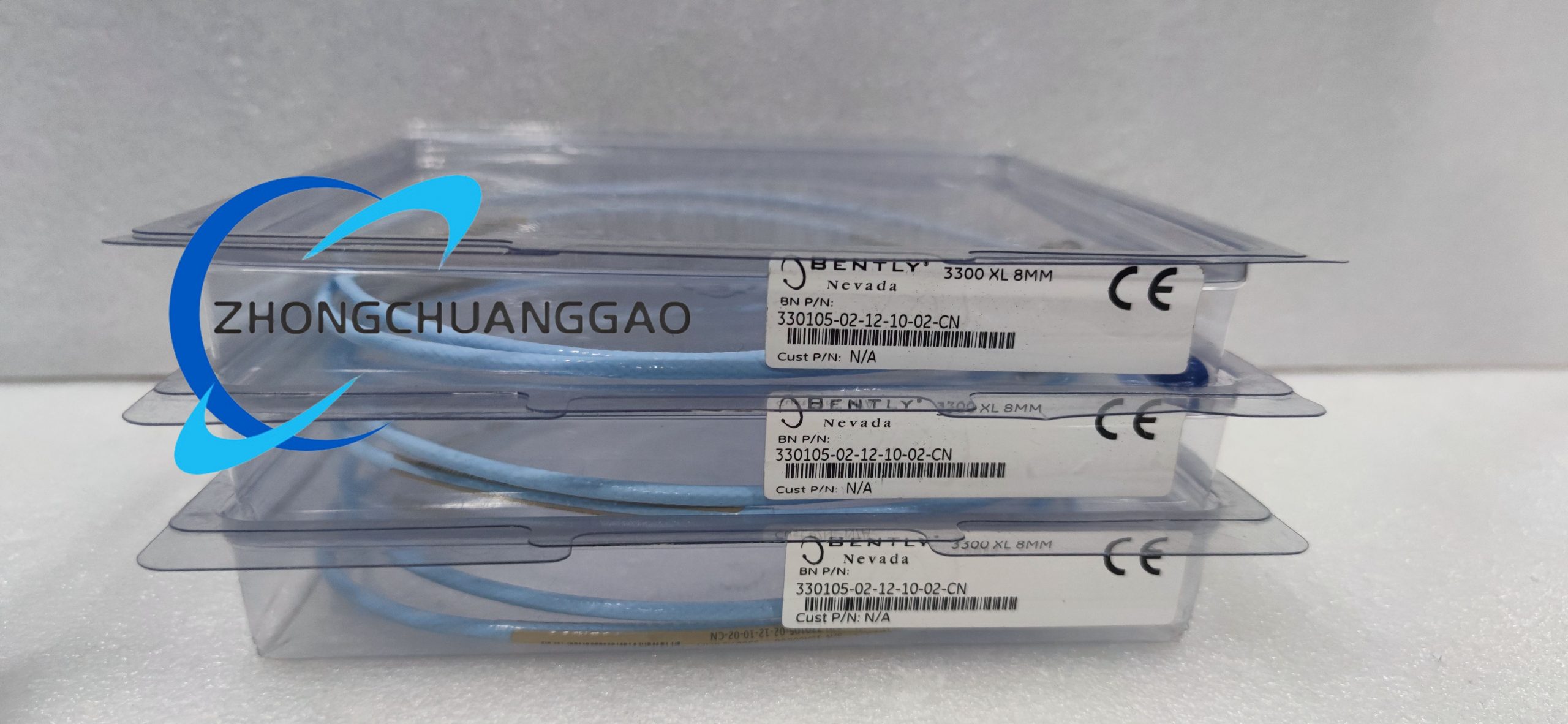

Bently 330105-02-12-10-02-CN Product Information - Image 1
Click to enlarge
Bently 330105-02-12-10-02-00
Bently 330105-02-12-10-02-00
Back to products

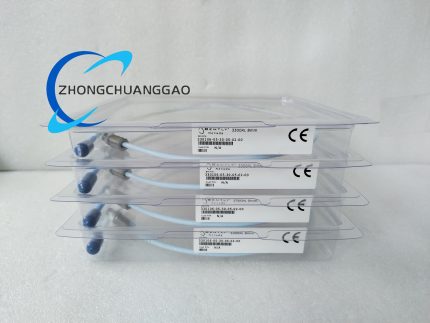

Bently 330106-05-30-05-02-00 Product Information
Bently 330106-05-30-05-02-00 Product Information

Bently 330105-02-12-10-02-CN Product Information

Technical Specifications

  • Probe Type: 8mm reverse mount proximity probe (3300 XL series)
  • Probe Diameter: 8 mm
  • Thread Size: 3/8-24 UNF
  • Total Length: 1.0 meter (3.3 feet)
  • Connector Type: Miniature Click Loc coaxial connector
  • Target Requirements: Minimum 15.2 mm (0.6 in) diameter flat target; compatible with ferromagnetic (e.g., steel) and non-ferromagnetic (e.g., aluminum, copper) metal surfaces
  • Linear Range: 2 mm (80 mils), spanning from approximately 0.25 mm (10 mils) to 2.3 mm (90 mils) from the target surface (corresponding to -1 Vdc to -17 Vdc output)
  • Temperature Range: -54°C to 121°C (standard operating range); extended range options available for extreme conditions
  • Frequency Range: 10 Hz to 10 kHz
  • Sensitivity: 10 mV/g
  • Material: Stainless steel construction for durability
  • Dimensions: 16 cm × 16 cm × 12 cm
  • Weight: 0.323 kg
  • Operating Voltage: -2 V to -18 V
  • Agency Approvals: Country-specific (CN) approvals, with relevant documentation available for download
Category:
Description

Key Features

  • High-Precision Measurement: Delivers accurate data for vibration, displacement, key phasing, and speed parameters with minimal error.
  • Robust Construction: Stainless steel housing ensures resistance to harsh industrial environments, including temperature fluctuations and mechanical stress.
  • Secure Connectivity: Miniature Click Loc coaxial connector provides stable and reliable electrical connections, preventing signal loss.
  • Broad Compatibility: Works with ferromagnetic and non-ferromagnetic metal surfaces, supporting diverse machinery types.
  • Seamless System Integration: Designed to pair with Bently Nevada 3500 series modules, 2300/20 dual-channel vibration monitors, and 1900/6*** vibration monitors.
  • Standard Compliance: Meets API 670 standards, ensuring alignment with global industrial monitoring requirements.
  • Easy Installation: Fixed mounting design with standardized thread size facilitates straightforward integration into existing machinery setups.

Application Scenarios

Core Monitoring Parameters

  • Shaft vibration: Tracks radial vibration amplitude to detect bearing wear, rotor imbalance, and other mechanical faults.
  • Shaft displacement: Monitors axial movement of the shaft system to prevent thrust bearing overload.
  • Key phasing: Provides phase reference for rotating shafts, enabling vibration signal analysis and speed calculation.
  • Rotational speed: Computes real-time speed with an accuracy of ±0.1% via key phase signals.

Typical Industrial Equipment

  • Steam turbines: Ensures stability by monitoring shaft vibration and displacement.
  • Compressors: Prevents impeller-housing friction and bearing damage.
  • Generators: Analyzes rotor dynamic characteristics to avoid winding short circuits and mechanical resonance.
  • Pumps: Diagnoses impeller wear, shaft bending, and other operational issues.
  • Fans and gearboxes: Supports health management and predictive maintenance.

Industry Applications

  • Power industry: Monitoring of steam turbines and generators in thermal power plants and nuclear power plants.
  • Petrochemical industry: Condition-based maintenance of compressors and pump units.
  • Metallurgical industry: Health monitoring of large fans and gearboxes.
  • General manufacturing: Vibration and displacement monitoring for various rotating machinery.

Matching Components

  • Extension cables: 330130-040-00-00, 330130-040-01-00, 330130-080-00-00, 330130-080-01-00
  • Proximitors: 330180-90-00, 330180-91-00, 330180-50-00, 330180-51-00
  • Monitoring modules: 3500/25 key phasing module, 3500/40 module, 3500/42M vibration monitoring module, 3500/45 displacement module, 3500/50 speed module
