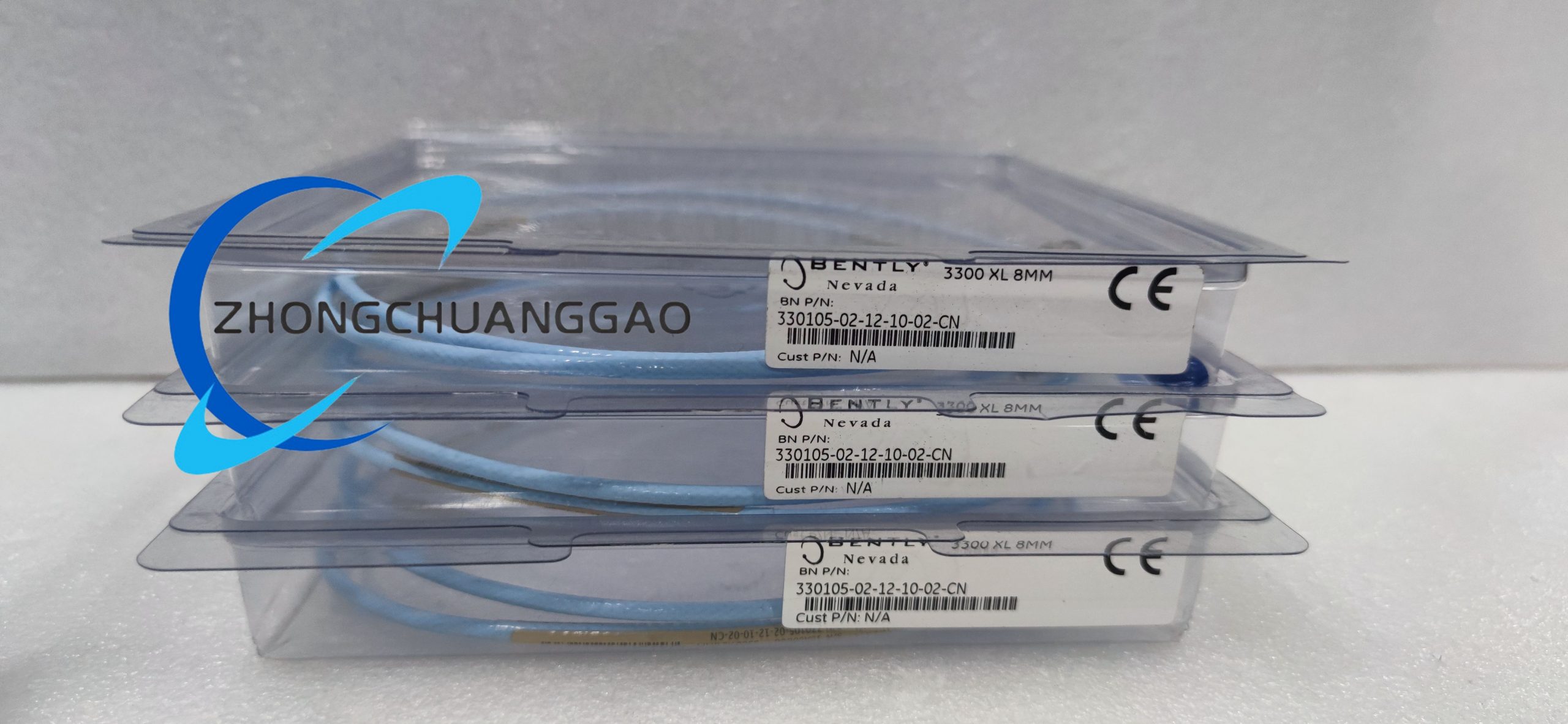

Bently 330105-02-12-10-02-CN - Image 1
Click to enlarge

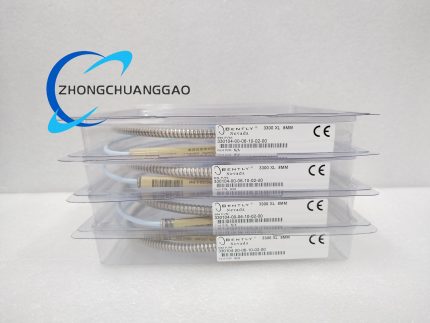

Bently 330105-02-12-10-02-00 Reverse Mount Eddy Current Proximity Probe
Bently 330105-02-12-10-02-00 Reverse Mount Eddy Current Proximity Probe
Back to products
Bently 330106-05-30-05-02-00
Bently 330106-05-30-05-02-00

Bently 330105-02-12-10-02-CN

The Bently Nevada 330105-02-12-10-02-CN is a premium precision sensing device belonging to the 3300 XL product series, specifically engineered as a 10mm reverse mount eddy current proximity probe for critical industrial machinery monitoring. It operates on advanced eddy current technology, forming a complete transducer system with compatible extension cables and proximitors to deliver accurate measurements of static parameters such as position and axial displacement, as well as dynamic parameters including vibration, keyphasor reference, and rotational speed.
Constructed with high-grade stainless steel and featuring an injection-molded casing, the probe incorporates gold-plated connectors that enhance electrical conductivity and durability. Its reverse mount design is optimized for installation in space-constrained machinery layouts where standard probes cannot fit, while non-contact operation eliminates mechanical wear between the probe and monitored components. The probe is built to withstand harsh industrial conditions, with robust protection against dust, moisture, and extreme temperatures. It complies with international quality and safety standards, ensuring seamless integration into existing industrial control systems and supporting predictive maintenance strategies to minimize unplanned downtime and maximize operational productivity across heavy industries.
Category:
Description

Technical Specifications

  • Sensor Type: Reverse mount eddy current proximity sensor
  • Manufacturer: Bently Nevada
  • Product Series: 3300 XL
  • Probe Diameter: 10mm
  • Installation Type: Non-contact reverse mount
  • Sensing Range: 2mm
  • Sensitivity: 1μm
  • Output Type: Voltage signal (proportional to gap distance)
  • Operating Voltage: 220V
  • Frequency Response: 1kHz to 20kHz
  • Accuracy: ±0.01%
  • Operating Temperature Range: -40°C to +125°C
  • Environmental Rating: IP67
  • Housing Material: High-grade stainless steel, injection-molded casing
  • Connector Type: Gold-plated miniature Click Loc coaxial connector
  • Termination Type: Gold connector
  • Power Consumption: Less than 5W
  • Certifications: CE, ROHS, API 670 (4th edition)

Function Features

  • Reverse Mount Design: Optimized for space-constrained installations, enabling compatibility with compact machinery layouts where standard probes lack fitment.
  • Precision Measurement: Delivers 1μm sensitivity and ±0.01% accuracy, capturing both static position/axial displacement and dynamic vibration/speed with high fidelity for comprehensive machinery health assessment.
  • Non-Contact Operation: Eliminates physical contact with rotating or moving components, reducing wear on both the probe and machinery parts, and extending overall operational lifespan.
  • Harsh Environment Resilience: IP67 protection rating and stainless steel construction provide resistance to dust, moisture, and extreme temperatures ranging from -40°C to +125°C, ensuring reliable performance in demanding industrial settings.
  • Secure and Easy Installation: Miniature Click Loc coaxial connector enables tool-free, finger-tight assembly, enhancing operational efficiency and ensuring stable connections during long-term use.
  • Enhanced Signal Transmission: Gold-plated connectors improve electrical conductivity and corrosion resistance, guaranteeing consistent data transmission and reducing signal interference.
  • Seamless System Integration: Compatible with Bently Nevada 3300 series extension cables, proximitors, and industrial control systems, supporting Modbus communication protocol for easy integration into existing automation networks.
  • Durable and Low-Maintenance: Robust construction and high-quality materials minimize downtime due to component failure, requiring minimal maintenance for continuous operation.

Application Scenarios

  • Power Generation: Monitors steam turbines, gas turbines, and generators, tracking shaft vibration, axial displacement, and keyphasor signals to maintain stable power output and prevent catastrophic equipment failures.
  • Oil & Gas Industry: Deployed in pipeline pumps, compressors, and drilling rigs, withstanding corrosive and dusty environments while providing real-time data for predictive maintenance of critical rotating machinery.
  • Petrochemical Processing: Used for condition monitoring of mixers, centrifugal pumps, and reactors, detecting subtle changes in vibration and position to avoid unplanned shutdowns of production lines.
  • Heavy Manufacturing: Integrates into steel mill rolling machines, cement plant fans, and automotive production line equipment, monitoring rotating components in high-temperature and dust-intensive settings.
  • Industrial Automation: Compatible with advanced control systems in factory automation, supporting process control and safety systems by providing accurate, real-time position and vibration data for automated decision-making.
  • Compact Machinery Systems: Ideal for small-bore pumps, compact gearboxes, and other space-constrained equipment where reverse mount design and non-contact sensing are essential for effective monitoring.
