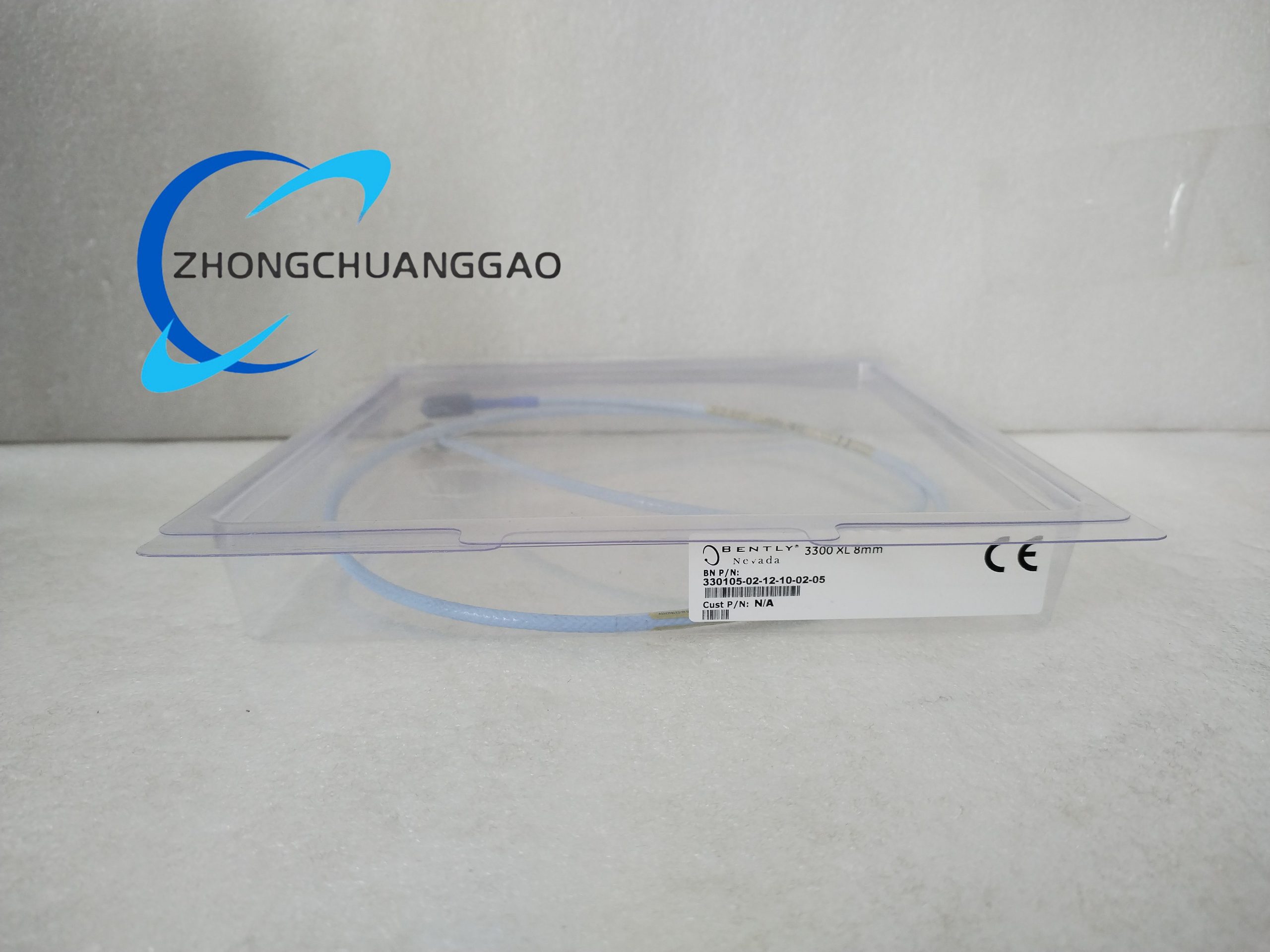

Bently 330105-02-12-10-02-05

Technical Specifications

• Brand: Bently Nevada
• Model: 330105-02-12-10-02-05
• Series: 3300 XL
• Product Type: 8 mm reverse mount proximity probe
• Core Function: Vibration and static position measurement
• Thread Type: 3/8-24 UNF
• Total Length: 1.0 meter
• Maximum Thread Engagement Length: 0.563 inches
• Connector Type: Miniature click loc coaxial connector
• Housing Material: AISI 303/304 stainless steel
• Probe Tip Material: Polyphenylene sulfide
• Operating Temperature Range:
  • Standard range: -52 °C to +177 °C
  • Extended range: Up to +218 °C (probe tip), +260 °C (cable and connector)
• Storage Temperature Range: -51 °C to +177 °C
• Weight: 0.323 kg
• Dimensions: 81.3 × 50 × 63.5 mm
• Pull Strength: 330 N
• System Accuracy: Verified at +18 °C to +27 °C with AISI 4140 steel target and 1.27 mm gap
• Certifications: CSA, ATEX, IECEx approved
• Country of Origin: United States
• Condition: Brand new (with COO, test report, and warranty letter)

Function Features

• Reverse Mount Design: Optimized for installation in space-constrained areas, expanding application flexibility in machinery with limited access.
• ** Dual Measurement Capability**: Captures both static position data and dynamic vibration values, delivering comprehensive machinery condition insights.
• Patented Construction Elements: Tip loc molding ensures a robust bond between probe tip and body, while cable loc design enhances cable retention and durability.
• Superior Environmental Resistance: Stainless steel housing and polyphenylene sulfide tip resist corrosion, harsh chemicals, and extreme temperatures, ensuring reliability in demanding conditions.
• High Mechanical Strength: Exceptional pull strength supports long-term structural integrity, even in high-vibration industrial environments.
• Secure Connectivity: Miniature click loc coaxial connector enables easy, reliable connections, ensuring stable signal transmission.
• Certified Compliance: Meets international safety and quality standards, qualifying for use in regulated and hazardous industrial settings.
• System Compatibility: Seamlessly integrates with 3300 XL extension cables and proximitor sensors, forming a complete and reliable monitoring system.
• Precision Performance: Delivers accurate measurements when paired with a standard AISI 4140 steel target, ensuring consistent data for critical decision-making.

Application Scenarios

• Turbomachinery Monitoring: Used to monitor vibration and position in steam turbines, gas turbines, and compressors, safeguarding key rotating equipment in power and industrial plants.
• Oil and Gas Industry: Deployed in refineries, offshore platforms, and pipelines to monitor pumps, motors, and other critical machinery operating in corrosive and high-temperature environments.
• Power Generation: Integrated into thermal, hydro, and nuclear power plants for monitoring generators, auxiliary equipment, and fluid-film bearing machines.
• Manufacturing Sector: Applied in automotive, aerospace, and heavy equipment manufacturing facilities to monitor production line machinery, gearboxes, and motors.
• Hazardous Environment Operations: Utilized in settings requiring certified safety compliance, including explosive or chemically aggressive industrial areas.
• Space-Constrained Installations: Ideal for compact machinery, enclosed components, and equipment with limited access points where traditional sensors cannot fit.
• Fluid-Film Bearing Machines: Specifically suited for measuring vibration and position in machinery equipped with fluid-film bearings, supporting optimal lubrication and operational efficiency.
• Keyphasor and Speed Measurement: Contributes to keyphasor reference and speed monitoring applications, enhancing overall machinery control and condition assessment.
