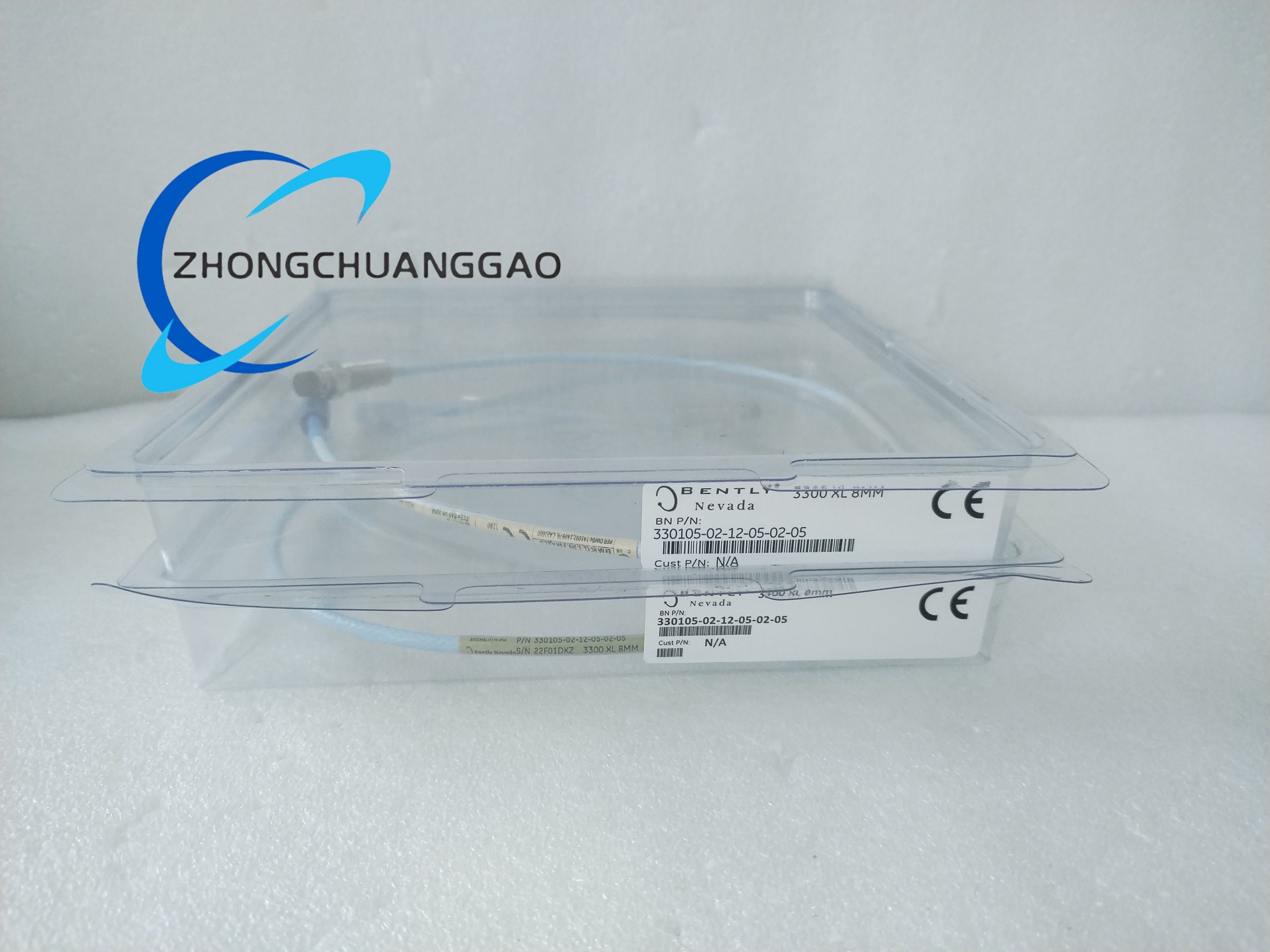

Bently 330105-02-12-05-02-05

Technical Specifications

• Brand: Bently Nevada
• Model: 330105-02-12-05-02-05
• Product Type: 3300 XL reverse mount eddy current proximity probe
• Sensor Technology: Eddy current (inductive sensing)
• Probe Size: 8 mm
• Linear Measurement Range: 2 mm (80 mils), starting from 0.25 mm (10 mils) to 2.3 mm (90 mils) from the target surface
• Output Signal Range: -1 Vdc to -17 Vdc (corresponding to linear measurement range)
• Mounting Type: Reverse mount
• Thread Specification: 3/8-24 UNF
• Cable Length: 0.5 meters (1.6 feet)
• Connector Type: Miniature Click-Loc coaxial connector
• Dimensions: 20.4 cm x 22.2 cm x 3.7 cm
• Weight: 0.08 kg
• Certifications: PED certified, CE marked
• Compatibility: Bently Nevada 3300 series monitoring systems, matching extension cables, and preamplifiers

Function Features

• Reverse Mount Design: Optimized for installation in tight, space-constrained areas, expanding application flexibility in machinery with limited access.
• Precision Non-Contact Measurement: Delivers accurate, repeatable readings of shaft displacement and vibration without physical contact, eliminating wear on both the probe and measured components.
• Compact and Lightweight Construction: Weighing only 0.08 kg, the probe is easy to install and suitable for both stationary and portable monitoring applications without compromising structural integrity.
• Secure Signal Connection: Features a Miniature Click-Loc coaxial connector that ensures stable, reliable signal transmission, minimizing maintenance needs and downtime in harsh environments.
• Wide Industrial Compliance: Meets PED regulations and carries CE marking, adhering to international safety and quality standards for global industrial applications.
• Seamless System Integration: Designed to work seamlessly with Bently Nevada’s 3300 series monitoring systems, enabling straightforward integration into existing control networks.
• Real-Time Anomaly Detection: Provides consistent, real-time data on machinery conditions, supporting proactive maintenance and early identification of potential faults to prevent critical failures.
• Durable Performance: Robust construction withstands harsh industrial environments, ensuring long-term reliability and consistent performance in demanding operational settings.

Application Scenarios

• Power Generation: Monitors turbines, generators, and auxiliary pumps in thermal, hydro, and nuclear power plants, ensuring stable energy production and protecting critical power infrastructure.
• Petrochemical & Oil/Gas: Used in refineries, pipelines, and offshore platforms to monitor compressors, pumps, and gas turbines, safeguarding against leaks and equipment breakdowns in harsh, corrosive environments.
• Manufacturing Industry: Integrates with production line machinery, motors, and gearboxes in automotive, aerospace, and heavy equipment manufacturing facilities, optimizing production efficiency and reducing downtime.
• Metallurgical Plants: Monitors rotating equipment such as blast furnace fans, rolling mill shafts, and converters, ensuring reliable operation in high-temperature, dusty industrial settings.
• Marine & Offshore: Suitable for monitoring propulsion systems, pumps, and auxiliary machinery on ships and offshore vessels, adapting to space-constrained marine environments.
• Industrial Automation: Serves as a key component in condition-based maintenance systems, integrating with PLCs and DCS networks to support automated, data-driven equipment monitoring and control.
• Critical Asset Protection: Ideal for safeguarding high-value machinery in industries where unplanned downtime leads to significant financial losses, including mining, pulp and paper, and chemical processing.
