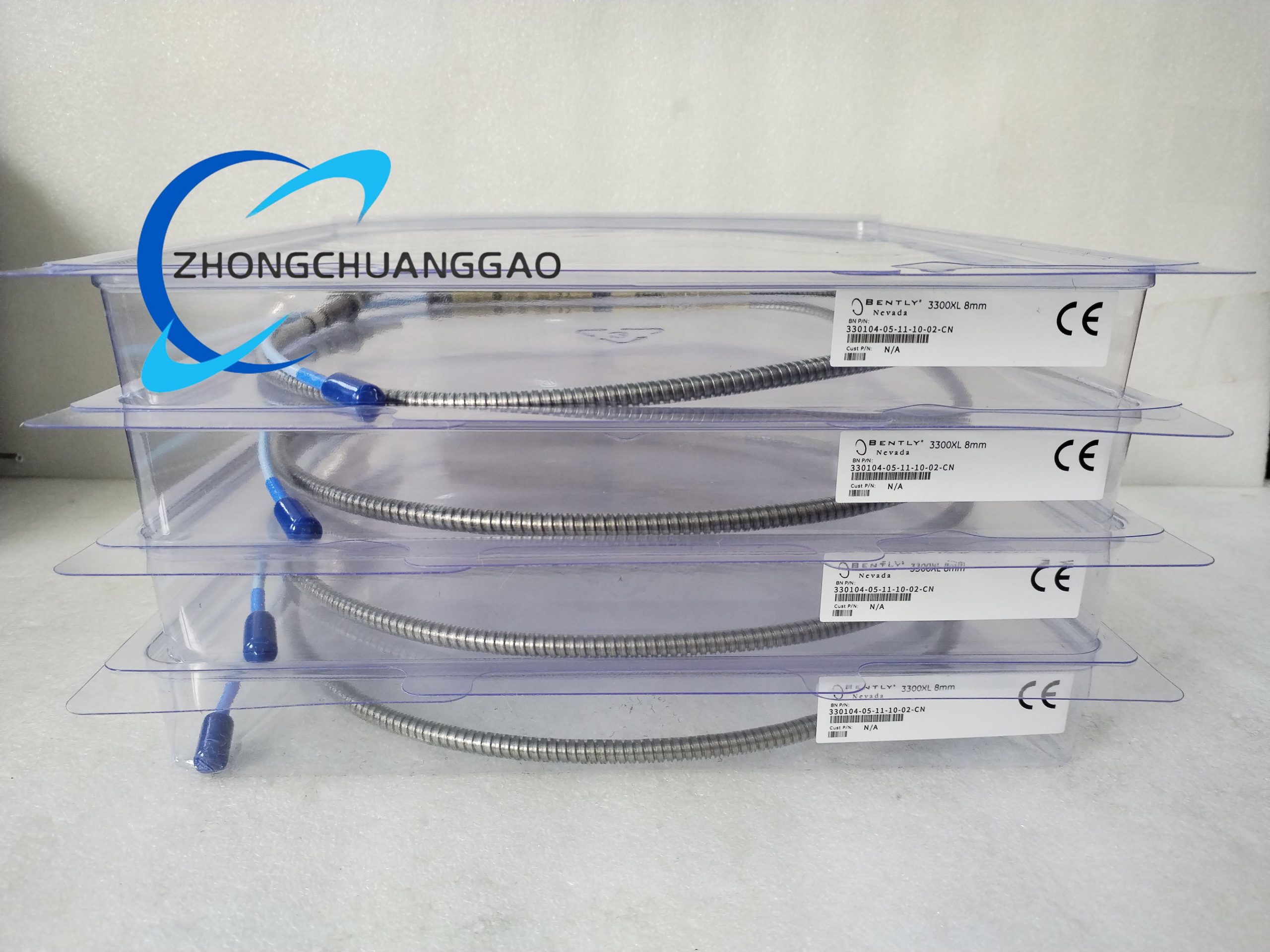

Bently 330104-05-11-10-02-CN

Technical Specifications

• Brand: Bently Nevada
• Model: 330104-05-11-10-02-CN
• Product Type: 3300 XL 8mm Proximity Probe (eddy current transducer)
• Sensor Technology: Eddy current (inductive sensing)
• Probe Diameter: 8 mm
• Linear Measurement Range: Up to 8 mm
• Output Sensitivity: 3.94 V/mm (100 mV/mil)
• Operating Voltage: 24 VDC
• Input Signal: 0-10 VDC, 4-20 mA DC
• Output Signal: 0-10 VDC, 4-20 mA DC
• Communication Interface: RS-485, Ethernet, RS-232 (supports Modbus, TCP/IP protocols)
• Operating Temperature Range: -40 °C to +85 °C
• Working Humidity: 0% to 95% (non-condensing)
• Environmental Protection Rating: IP 67
• Housing Material: AISI 303/304 stainless steel
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Connector Type: Miniature coaxial Click Loc connector with standard cable
• Certifications: CE compliant; meets industrial automation safety standards
• Compatibility: Bently Nevada 3500 series monitoring systems and industrial control platforms

Function Features

• Precision Non-Contact Sensing: Delivers high-resolution measurements of vibration, displacement, and position without mechanical contact, eliminating component wear and ensuring consistent data accuracy.
• Robust Environmental Durability: IP 67 rating and stainless steel housing provide protection against dust, water, and corrosion, enabling stable operation in harsh industrial conditions.
• Broad Operating Range: Functions reliably across a wide temperature range and humidity spectrum, adapting to diverse geographical and industrial environments.
• Multi-Protocol Compatibility: Supports multiple communication protocols and interfaces, facilitating seamless integration with various industrial control systems and host computers.
• Real-Time Anomaly Detection: Identifies mechanical issues such as bearing vibration and imbalance early, enabling proactive maintenance to prevent equipment failures.
• Easy Integration & Installation: Compact design allows straightforward integration into existing machinery, while modular construction simplifies installation, maintenance, and system upgrades.
• Remote Configuration: Supports remote settings and monitoring via network, improving operational efficiency and reducing on-site maintenance requirements.
• Region-Specific Optimization: The “CN” suffix ensures compatibility with local industrial standards and systems, enhancing usability for targeted market applications.

Application Scenarios

• Power Generation: Monitoring steam turbines, gas turbines, and generators in thermal power plants, supporting Turbine Supervisory Instrumentation systems for safe and efficient power production.
• Oil & Gas/Petrochemical: Condition monitoring of compressors, pumps, and rotating equipment in refineries, pipelines, and offshore facilities, ensuring compliance with industry safety standards.
• Industrial Automation: Integration with production line machinery, including motors, gearboxes, and fans, optimizing process control and minimizing production interruptions.
• Heavy Machinery: Monitoring critical rotating components in steel mills, mining equipment, and cement plants, preventing mechanical failures and reducing maintenance costs.
• Manufacturing: Precision position and vibration sensing for automated assembly lines and machining centers, enhancing product quality and production efficiency.
• Process Control Systems: Data integration with distributed control systems (DCS) and programmable logic controllers (PLC) in chemical, pharmaceutical, and food processing industries.
• Mechanical Maintenance: Predictive maintenance programs for industrial machinery, providing real-time data to schedule proactive repairs and extend equipment operational lifespan.
