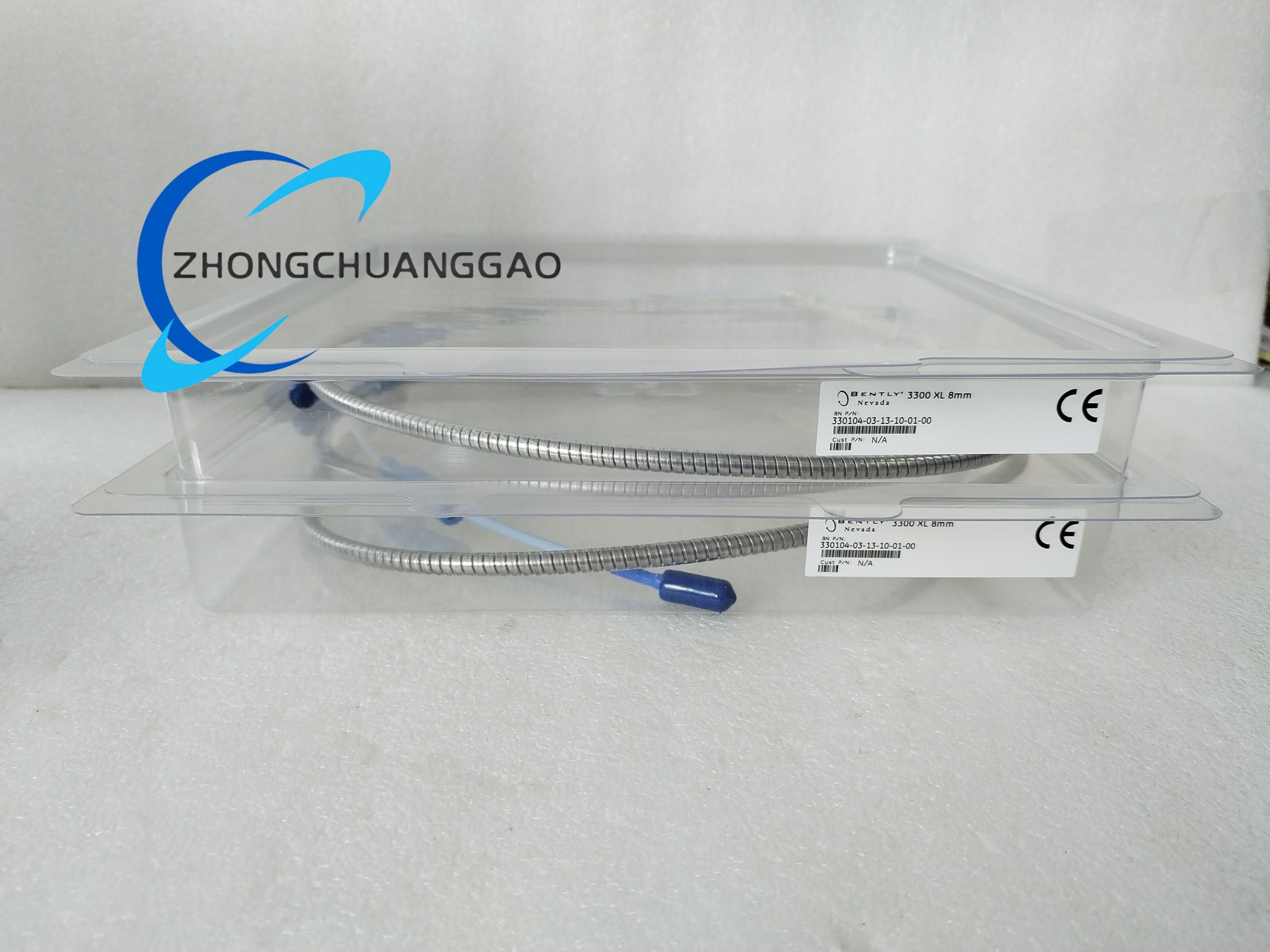

Bently 330104-03-13-10-01-00

Technical Specifications

• Brand: Bently Nevada
• Model: 330104-03-13-10-01-00
• Product Type: 3300 XL 8mm Proximity Probe (eddy current transducer)
• Sensor Technology: Eddy current (inductive sensing)
• Unthreaded Length: 30 mm
• Overall Case Length: 130 mm
• Cable Length: 1.0 meter (3.3 feet)
• Connector Type: Miniature coaxial Click-Loc™ connector with connector protector, standard cable
• Housing Material: AISI 303 or 304 stainless steel
• Probe Tip Material: Polyphenylene sulfide (PPS)
• Power Supply: -17.5 VDC to -26 VDC (12 mA maximum consumption); operates with barriers at -23 VDC to -26 VDC
• Output Resistance: 50 Ω
• Sensitivity: Less than 2 mV change in output voltage per volt change in input voltage
• Measurement Accuracy: ±1% of reading
• Operating Temperature Range: -52 °C to +177 °C (standard); extended tip range up to +218 °C
• Relative Humidity Resistance: Less than 3% change in average scale factor at 93% humidity (per IEC standard 68 2 3 for 56 days)
• Design Pressure: Sealed with Viton® O-ring for differential pressure resistance (not pressure tested before shipment)
• Weight: 0.323 kg
• Dimensions: 81.3 × 50 × 63.5 mm
• Compliance: API 670 standard
• Country of Origin: United States

Function Features

• Precision Non-Contact Measurement: Delivers accurate detection of metallic components without mechanical contact, eliminating wear and ensuring consistent performance over time.
• Robust Construction: Stainless steel housing and PPS probe tip provide resistance to corrosion, impact, and harsh industrial environments, ensuring long-term durability.
• Extreme Temperature Tolerance: Operates reliably across a broad temperature range from -52 °C to +177 °C (extended tip range up to +218 °C), adapting to diverse operational conditions.
• High Humidity Resistance: Maintains measurement stability with less than 3% scale factor change in 93% humidity, suitable for humid industrial settings.
• Seamless Integration: Standardized connector and cable design enable easy integration with Bently Nevada monitoring modules, TSI systems, DCS, and PLC-based control setups.
• Consistent Sensitivity: Minimal output voltage variation relative to input voltage changes ensures reliable data transmission for critical monitoring tasks.
• Dual Measurement Capability: Monitors both static parameters (position) and dynamic parameters (vibration, speed), supporting versatile application requirements.
• Protective Connector Design: Equipped with a connector protector to prevent damage during installation and operation, enhancing reliability in rugged environments.

Application Scenarios

• Power Generation Industry: Monitoring radial vibration, axial displacement, and speed of steam turbines, gas turbines, and generators; keyphasor reference measurement for TSI systems.
• Oil and Gas/Petrochemical Industry: Vibration and position monitoring of compressors, pumps, and fans in refineries, chemical plants, and offshore facilities; compliance with hazardous environment requirements.
• Manufacturing Industry: Shaft and bearing position sensing in production line machinery; process control and automation for papermaking, printing, and dyeing production lines.
• Heavy Machinery Sector: Condition monitoring of large fans, blowers, and industrial pumps in steel mills and mining operations; prevention of bearing damage and mechanical failures.
• Industrial Automation Systems: Integration with DCS, PLC programmable conveying systems, and intelligent fire water supply control systems for enhanced process visibility.
• Critical Infrastructure: Substation integrated automation control systems and intelligent flat tempering furnace systems requiring precise proximity sensing.
• Turbine and Rotating Equipment: (differential expansion measurement) of gas turbines and steam turbines; 活塞杆位移测量 (piston rod displacement measurement) in reciprocating compressors.
