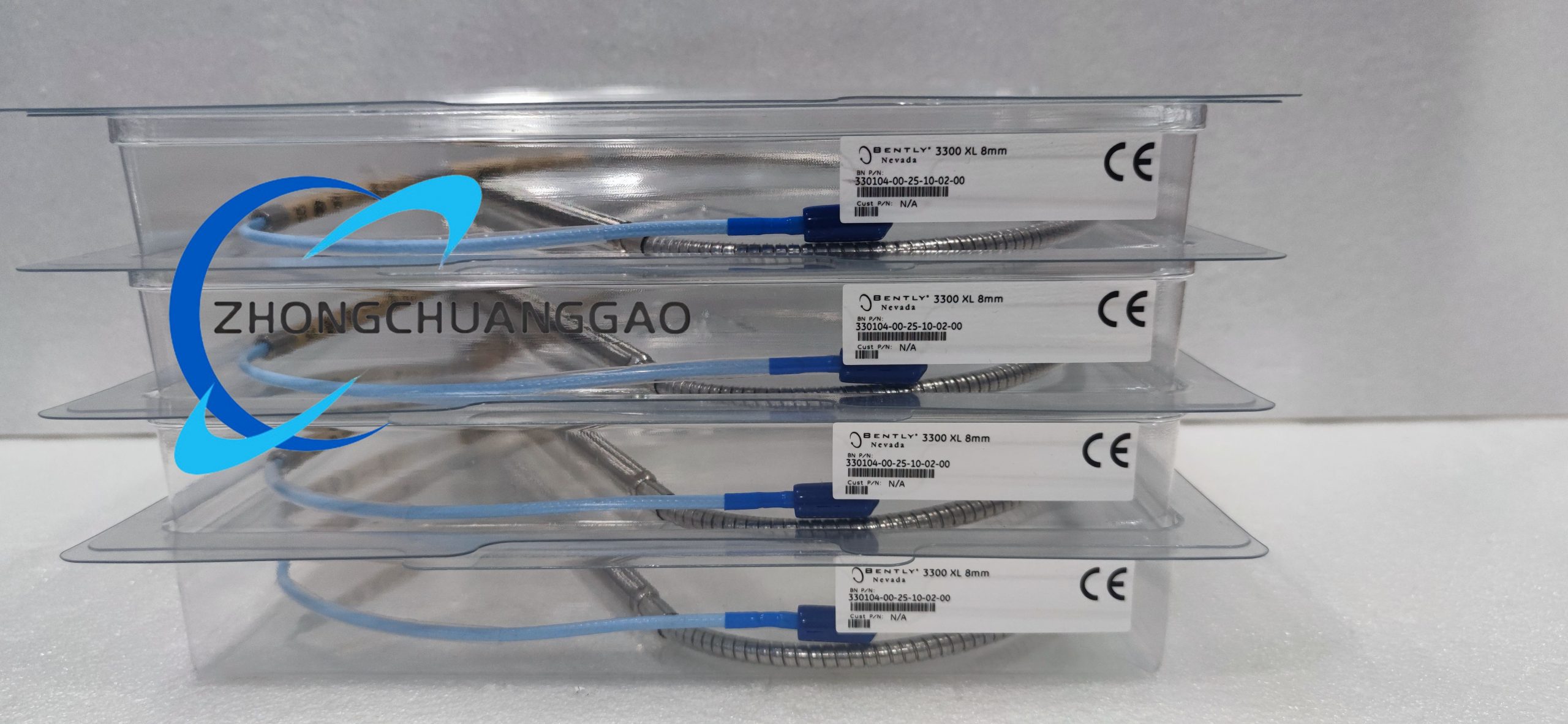

Bently 330104-00-25-10-02-00

Technical Specifications

• Brand: Bently Nevada
• Model: 330104-00-25-10-02-00
• Product Type: 3300 XL 8mm Proximity Probe (eddy current transducer)
• Sensor Technology: Eddy current (inductive sensing)
• Probe Diameter: 8 mm
• Linear Measurement Range: 4 mm (160 mil)
• Output Sensitivity: 3.94 V/mm (100 mV/mil)
• Operating Voltage: 24 VDC
• Output Frequency: 50 kHz
• Operating Temperature Range: -40 °C to +85 °C
• Temperature Stability: ±0.5% over the operating temperature range
• Environmental Protection Rating: IP 67 (dust and water ingress protection)
• Housing Material: Stainless steel (corrosion-resistant)
• RFI/EMI Immunity: High resistance to radio frequency interference
• Compliance: API 670 standard; CE / FCC certified
• Interchangeability: Compatible with 3300 XL series components
• Dimensions: 100 mm × 80 mm × 30 mm
• Weight: 200 g

Function Features

• Precision Non-Contact Measurement: Delivers accurate detection of vibration, displacement, and position of metallic components without mechanical contact, eliminating wear and ensuring consistent data integrity.
• Robust Environmental Resistance: IP 67 rating and stainless steel housing provide protection against dust, water, and corrosion, enabling reliable operation in harsh industrial settings.
• Broad Temperature Adaptability: Operates stably across a wide temperature range from -40 °C to +85 °C with ±0.5% temperature stability, adapting to diverse operational environments.
• Strong Interference Immunity: High RFI/EMI resistance ensures accurate measurements even in electromagnetic interference-prone industrial environments.
• Seamless Compatibility: Fully interchangeable with other 3300 XL series components, simplifying system expansion, replacement, and maintenance.
• API 670 Compliance: Meets strict industry standards for mechanical configuration, linear range, accuracy, and temperature stability, ensuring reliability in critical applications.
• Real-Time Data Transmission: Provides high-resolution, real-time measurement data to support predictive maintenance and immediate equipment condition assessment.
• User-Friendly Integration: Designed for easy installation and compatibility with industrial control systems, minimizing setup time and operational downtime.

Application Scenarios

• Power Generation Industry: Monitoring vibration and displacement of steam turbines, gas turbines, and generators; supporting Turbine Supervisory Instrumentation (TSI) systems for safe and efficient power production.
• Oil and Gas/Petrochemical Industry: Condition monitoring of compressors, pumps, and rotating equipment in refineries, pipelines, and offshore facilities; ensuring compliance with industry safety standards.
• Manufacturing Industry: Position and vibration sensing for production line machinery, including motors, fans, and gearboxes; optimizing process control and reducing production interruptions.
• Heavy Industry: Monitoring critical rotating equipment in steel mills, mining operations, and cement plants; preventing mechanical failures and minimizing maintenance costs.
• Marine and Offshore Applications: Suitable for shipboard machinery and offshore platforms, where resistance to humidity, saltwater, and harsh environmental conditions is essential.
• Industrial Automation Systems: Integration with distributed control systems (DCS) and programmable logic controllers (PLC) for automated process monitoring and control.
• Predictive Maintenance Programs: Providing reliable data to predictive maintenance software, enabling early detection of equipment anomalies and proactive maintenance scheduling.
