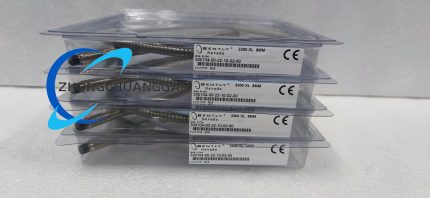

Bently 330104-00-22-10-02-05

Technical Specifications

• Brand: Bently Nevada
• Model: 330104-00-22-10-02-05
• Product Type: 3300 XL 8mm Proximity Probe
• Sensor Technology: Eddy current (inductive sensing)
• Power Supply: 12 VDC to 30 VDC
• Output Signal: 4-20 mA current loop (linear output)
• Detection Range: 1 mm to 10 mm (effective measuring range)
• Accuracy: ±0.1% of reading or ±0.1 mm (whichever is greater)
• Resolution: 0.1 mm
• Operating Temperature Range: -40 °C to +125 °C
• Environmental Protection Rating: IP67
• Housing Material: Stainless steel
• Overall Case Length: 220 mm
• Cable Length: 1.2 meters to 2 meters (standard configuration)
• Connector Type: Miniature coaxial Click-Loc™ connector; M12 screw-lock connector (variants available)
• Mounting Type: Surface mount, cylindrical mounting style
• Dimensions: 13 cm × 1.8 cm × 1.5 cm
• Weight: 0.32 kg
• Certifications: CSA, ATEX, IECEx
• Compliance: API 670 standard (4th edition)

Function Features

• Precision Non-Contact Measurement: Delivers accurate detection of metallic components without mechanical contact, eliminating wear and tear while ensuring consistent data.
• Robust Environmental Resistance: IP67 rating protects against dust and water ingress, enabling reliable operation in wet, dusty, or harsh industrial environments.
• Wide Operating Range: Performs stably across a broad temperature spectrum (-40 °C to +125 °C) and voltage input range (12 VDC to 30 VDC), adapting to diverse operational conditions.
• High Accuracy and Resolution: Maintains tight accuracy tolerances and fine resolution to support critical measurement tasks requiring minimal error margins.
• Seamless System Integration: Standardized connectors and linear 4-20 mA output ensure compatibility with modern industrial control systems and Bently Nevada monitoring modules.
• Durable Construction: Stainless steel housing provides structural integrity and longevity, withstanding the rigors of continuous industrial use.
• Safety Compliance: Meets international safety certifications and API 670 standards, ensuring adherence to stringent industrial safety protocols.
• Interchangeability: Supports complete interchangeability with 3300 XL series probes, extension cables, and proximitors, eliminating the need for component matching or bench calibration.

Application Scenarios

• Power Generation Industry: Monitoring radial vibration and axial displacement of steam turbines, gas turbines, and generators; keyphasor measurement and speed monitoring.
• Oil and Gas/Petrochemical Industry: Detecting rotor vibration in compressors, pumps, and fans operating in hazardous or harsh environments; condition monitoring of fluid-handling equipment.
• Manufacturing Industry: Position sensing and speed measurement of rotating machinery in production lines; process control and automation systems.
• Heavy Machinery Sector: Vibration monitoring of large fans, blowers, and industrial pumps to prevent bearing damage and unexpected failures.
• Process Industry: Precision control in chemical plants, refineries, and industrial processing facilities requiring high-sensitivity detection.
• Hazardous Environments: Applications in explosive or high-risk areas compliant with ATEX, IECEx, and CSA certifications.
• Turbine Supervisory Instrumentation (TSI): Core component in rotating machinery protection systems for comprehensive equipment health monitoring.
• General Industrial Automation: Any application requiring non-contacting measurement of position, vibration, or speed in metallic rotating components.
