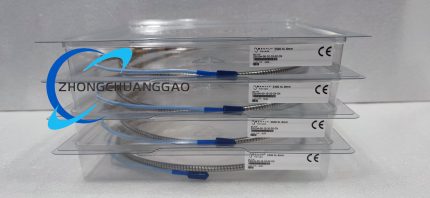

Bently 330104-00-13-10-02-CN
Bently 330104-00-13-10-02-CN
Back to products
Bently 330104-00-22-10-02
Bently 330104-00-22-10-02

Bently 330104-00-13-10-02-05

The Bently 330104-00-13-10-02-05 is a high-performance proximitor sensor belonging to the reliable 3300 XL series. It is specifically designed for precise vibration monitoring and shaft position measurement in industrial environments, serving as a critical component for machinery condition monitoring and predictive maintenance. The sensor adopts advanced eddy current technology to achieve non-contacting displacement measurement, delivering accurate and stable data to support early fault detection of critical equipment. Its robust construction and excellent resistance to electromagnetic interference ensure reliable operation in harsh industrial conditions. The sensor offers flexible mounting options and seamless integration with existing systems, complying with international safety and performance standards to meet the stringent requirements of various industrial sectors.

Category:
Description

Technical Specifications

  • Brand: Bently Nevada
  • Model: 3300 XL 8mm Proximitor Sensor
  • Part Number: 330104-00-13-10-02-05
  • Origin: U.S.A
  • Power Supply: 24 VDC ± 10%
  • Output Signal: 4-20 mA
  • Measurement Range: 0 to 13 mm (0 to 0.51 in)
  • Linearity: ± 0.5% of full scale
  • Resolution: 0.5 µm (0.00002 in)
  • Frequency Response: 0 to 10 kHz
  • Operating Temperature Range: -40 °C to +125 °C (-40 °F to +257 °F)
  • Enclosure Rating: IP67
  • Mounting Options: DIN rail mount, traditional 4-hole panel mount
  • Cable Configuration: 1.0 meter (3.3 feet) standard cable with miniature coaxial Click-Loc connector
  • Dimensions: 20.5 cm x 22.4 cm x 3.3 cm
  • Weight: 0.2 kg (0.44 lbs)
  • Certifications: CSA, ATEX, IECEx, CE

Function Features

  • High-Precision Measurement: Delivers exceptional linearity and resolution for accurate vibration and shaft position data, supporting precise machinery condition assessment.
  • Non-Contacting Detection: Utilizes eddy current technology to enable non-contacting displacement measurement, avoiding mechanical wear and extending service life.
  • Strong Interference Immunity: Boasts high resistance to radio frequency interference (RFI) and electromagnetic interference (EMI), ensuring stable performance in high-noise industrial environments.
  • Flexible Mounting: Supports both DIN rail and traditional panel mount configurations, adapting to high-density installation and existing system layouts without additional isolator plates.
  • Robust Durability: Features IP67 enclosure rating and rugged construction, withstanding harsh industrial conditions such as dust, moisture and extreme temperatures.
  • Easy Integration: Maintains compatibility with existing control systems and Bently Nevada monitoring setups, simplifying installation and reducing configuration complexity.
  • Compliance with Standards: Meets international safety and performance certifications, ensuring reliability and regulatory compliance across global industrial applications.

Application Scenarios

  • Rotating machinery monitoring (turbines, compressors, pumps, motors, fans)
  • Shaft position, vibration, keyphasor, eccentricity and speed measurement
  • Predictive maintenance systems for critical industrial equipment
  • Power generation plants (thermal, hydro, nuclear)
  • Petrochemical and oil & gas industry
  • Manufacturing and metallurgical facilities
  • Industrial automation and process control systems
  • Heavy-duty machinery in mining and construction sectors
